JBL CONTROL 227CT 6-inch Ceiling Speaker on a Baffle
The JBL Professional Control 227C and CT are premium in-ceiling professional loudspeakers designed for applications requiring superior quality sound in-ceiling mount applications.
Features:
- Consistent 120° broadband pattern control for exceptional coverage.
- Coaxial design featuring:Kevlar-reinforced 165 mm (6.5 in) woofer.25 mm (1 in) compression driver.
- Extraordinary clarity for speech and vocals with extended frequency response for music.
- 150 Watts Power Handling.

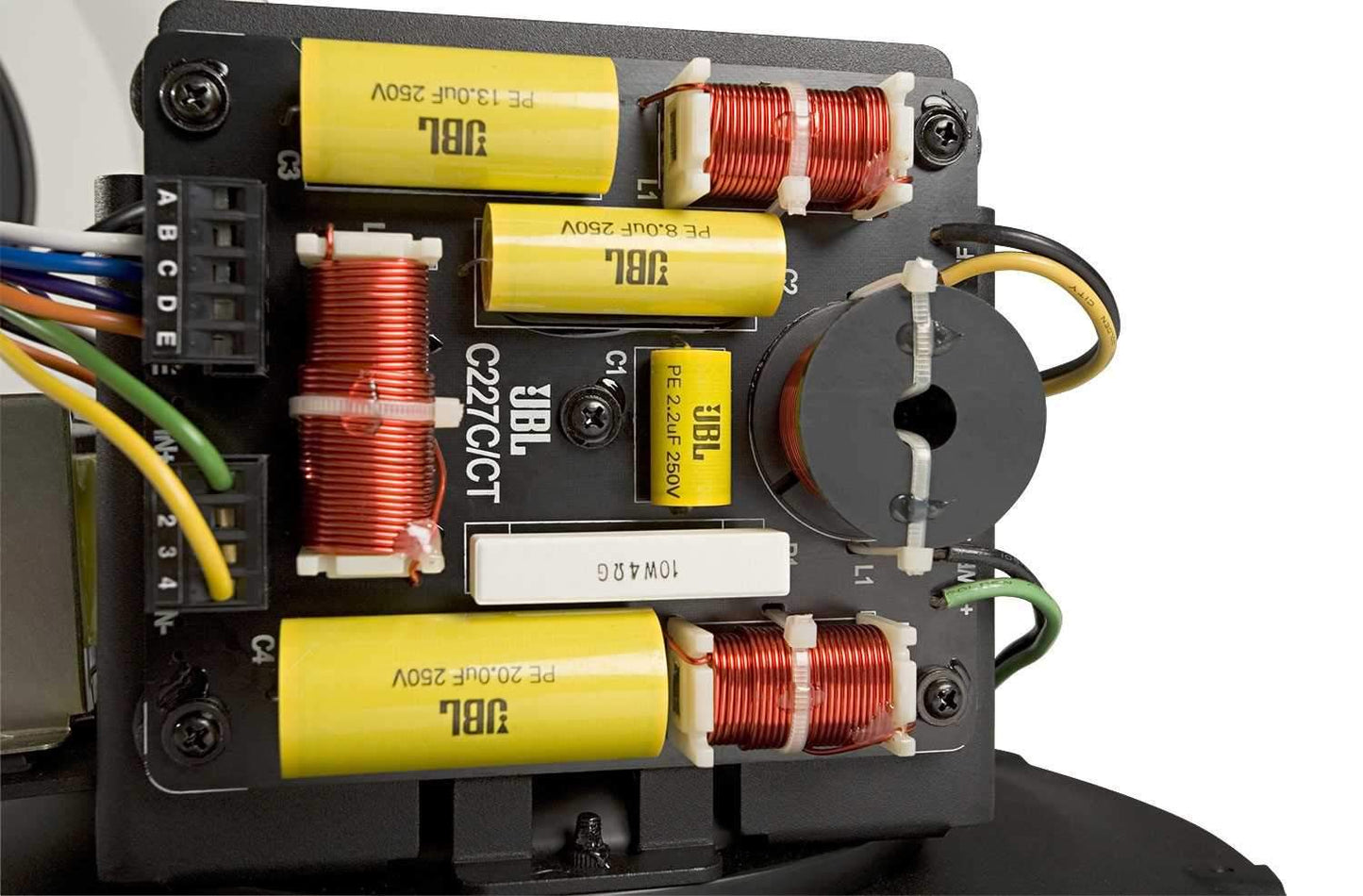

- Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
- Separate back can and contemporary grille available. (sold separately)
.
Specifications:
- Frequency Range (-10 dB): 43 Hz - 19 kHz
- 70/100 Volt taps: 68W, 34W, 17W (plus 8.5W at 70V)
- Nominal Sensitivity: 90 dB measured half-space 95 dB computed for competitive comparison
- Coverage: 120 degrees
- Frequency Response (-3 dB): 75 Hz - 17 kHz
- Low Frequency: 165 mm (6.5 in) Kevlar reinforced cone
- High Frequency: 25 mm (1 in) exit compression driver
- Dimensions (H x D): Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
- Weight (ea): 5.2 kg (11.5 lbs.)
- Frequency Range (-10 dB): 43 Hz - 19 kHz
- 70/100 Volt taps: 68W, 34W, 17W (plus 8.5W at 70V)
- Nominal Sensitivity: 90 dB measured half-space 95 dB computed for competitive comparison
- Coverage: 120 degrees
- Frequency Response (-3 dB): 75 Hz - 17 kHz
- Low Frequency: 165 mm (6.5 in) Kevlar reinforced cone
- High Frequency: 25 mm (1 in) exit compression driver
- Dimensions (H x D): Ø 305 mm (12 in) round baffle x depth from back of baffle of 147 mm (5.8 in)
- Weight (ea): 5.2 kg (11.5 lbs.)
