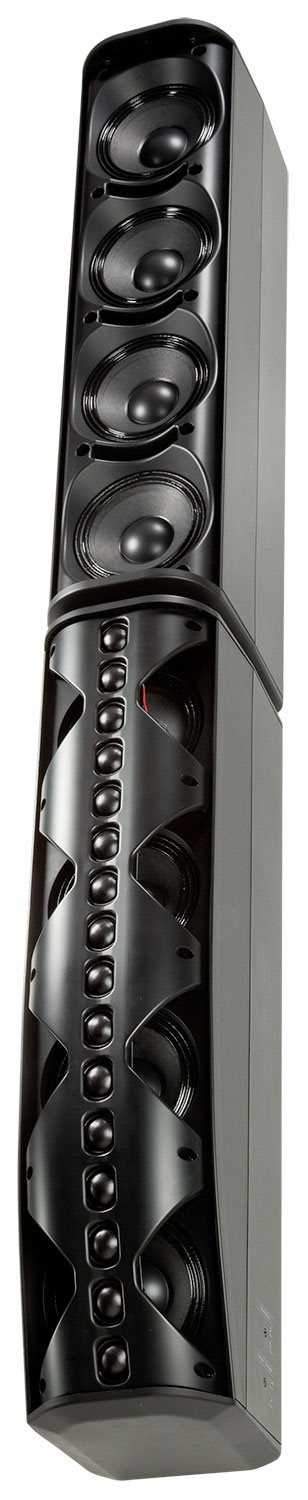

JBL CBT 70JE-1 Array Extension for CBT 70J-1 Speaker

Purpose-Designed Extension for CBT 70J-1 Line Array Column Speaker. With stronger grille.

When connected to a CBT 70J-1 line array column speaker, the CBT 70JE-1 Extension provides extended bass response, extended pattern control, and increased sound output levels. The combined array system provides Constant Beamwidth Technology, which represents a breakthrough in pattern control consistency, utilizing complex analog beamforming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of passive column speakers.

Features:
  • Components: Four 125 mm (5 in) high-power LF drivers (70JE-1)
  • 500 Watt power handling (70JE-1)
  • Built-in purpose-designed crossover network, for combining with CBT 70J-1 (70JE-1)
  • Coupler plate included (70JE-1)
  • Extended pattern control (to 400 Hz for ± 20° control, to 200 Hz for substantial off-axis cancellation)
  • Extended bass response to 45 Hz.
  • Components: Sixteen 25 mm (1 in) soft dome tweeters and eight 125 mm (5 in) high-power LF drivers
  • Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing
  • Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for long-throw applications.
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode
  • Coupler plate and wall swivel (pan)/tilt bracket included (rear insert-point pattern fits standard third-party brackets)
Specifications:
  • Components: Eight (8) 130 mm (5 in) LF drivers; Sixteen (16) 25 mm (1 in) HF drivers
  • Frequency Range (-10 db): 45 Hz - 20 kHz
  • Coverage: Vertical (selectable via switch); Narrow Mode: 25° (2 kHz - 16 kHz) (±10°); Broad Mode: 45° (350 Hz - 16 kHz) (±10°); Horizontal 150° (500 Hz - 18 kHz, ±20°)
  • Sensitivity (@1m): Narrow: (speech mode) 98 dB @ 2.83V, 95 dB @ 2.0V (150 Hz - 8 kHz), (music mode) 94 dB @ 2.83V, 91 dB @ 2.0V (80 Hz - 18 kHz); Broad: (speech mode) 97 dB @ 2.83V, 94 dB @ 2.0V (100 - 8 kHz), (music mode) 93 dB @ 2.83V, 90 dB @ 2.0V (70 Hz - 18 kHz)
  • Nominal Impedance: 4 ohms
  • Power Capacity: 1000 W (4000 W peak), 2 hrs; 700 W (2800 W peak), 100 hrs
  • Max SPL: Narrow: (speech mode) 125 dB cont ave (131 peak), (music mode) 121 dB cont ave (127 peak); Broad: (speech mode) 124 dB cont ave (130 peak), (music mode) 120 dB cont ave (126 peak)
  • Low Frequency Drivers: 8 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV and salt resistance, shielded.
  • High Frequency Drivers: 16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
  • Enclosure: Fiberglass-reinforced ABS cabinet, painted aluminum grille.
  • Outdoor Capability: IP-54 rated, per IEC 529, UV, moisture and salt-spray resistant
  • Insert Points: 20 insert points total, 8 utilized for coupler plate, M6 (16 mm deep) on back panel
  • Mounting: Coupler plate joins the CBT70J-1 and 70JE-1 end-to-end. Threaded points on coupler plate accepts OmniMount 60.0 Series and 120.0 Series compatible wall-mount brackets, as well as points for the swivel (pan)/tilt wall bracket that is included with CBT 70J-1. Twelve (12) additional M6 mounting points accept forged shoulder steel eyebolts or swivel clips for suspension.
  • Dimensions (H x W x D): 1388 x 170 x 237 mm (54.8 x 6.7 x 9.3 in)
  • Net Weight: 20.4 kg (45 lb)
  • Included Accessories: Coupler plate
  • Components - 70JE-1: Four (4) 130 mm (5 in) LF drivers
  • Frequency Range (-10 dB) - 70JE-1: 45 Hz – 700 Hz
  • Sensitivity (2.83V @ 1m) - 70JE-1: 90 dB full space, 96 dB half-space (65 Hz - 300 Hz)
  • Nominal Impedance - 70JE-1: 8 ohms
  • Power Capacity - 70JE-1: 500 W (2000 W peak), 2 hrs; 350 W (1400 W peak), 100 hrs
  • Max SPL - 70JE-1: 117 dB
  • Net Weight - 70JE-1: 8.2 kg (18 lbs)
* Includes CBT-70JE-1 Extension only. CBT 70J-1 Line Array Column Speaker sold separately.
