JBL CBT-70J-1 Full-Range J-Shaped Speaker System

Constant Beamwidth Technology Two-Way Line Array Column with Asymmetrical Vertical Coverage. With improved mounting bracket for enhanced aiming flexibility and stronger grille.

The CBT 70J-1, with Constant Beamwidth Technology, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers. (Shown with included grille removed)

Features:
  • Asymmetrical vertical coverage sends more sound toward far area of room to make front-toback sound levels more consistent
  • Components: Sixteen 25 mm (1 in) soft dome tweeters and four 125 mm (5 in) high-power LF drivers, arranged coaxially
  • Patent-pending Constant Beamwidth Technology provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing

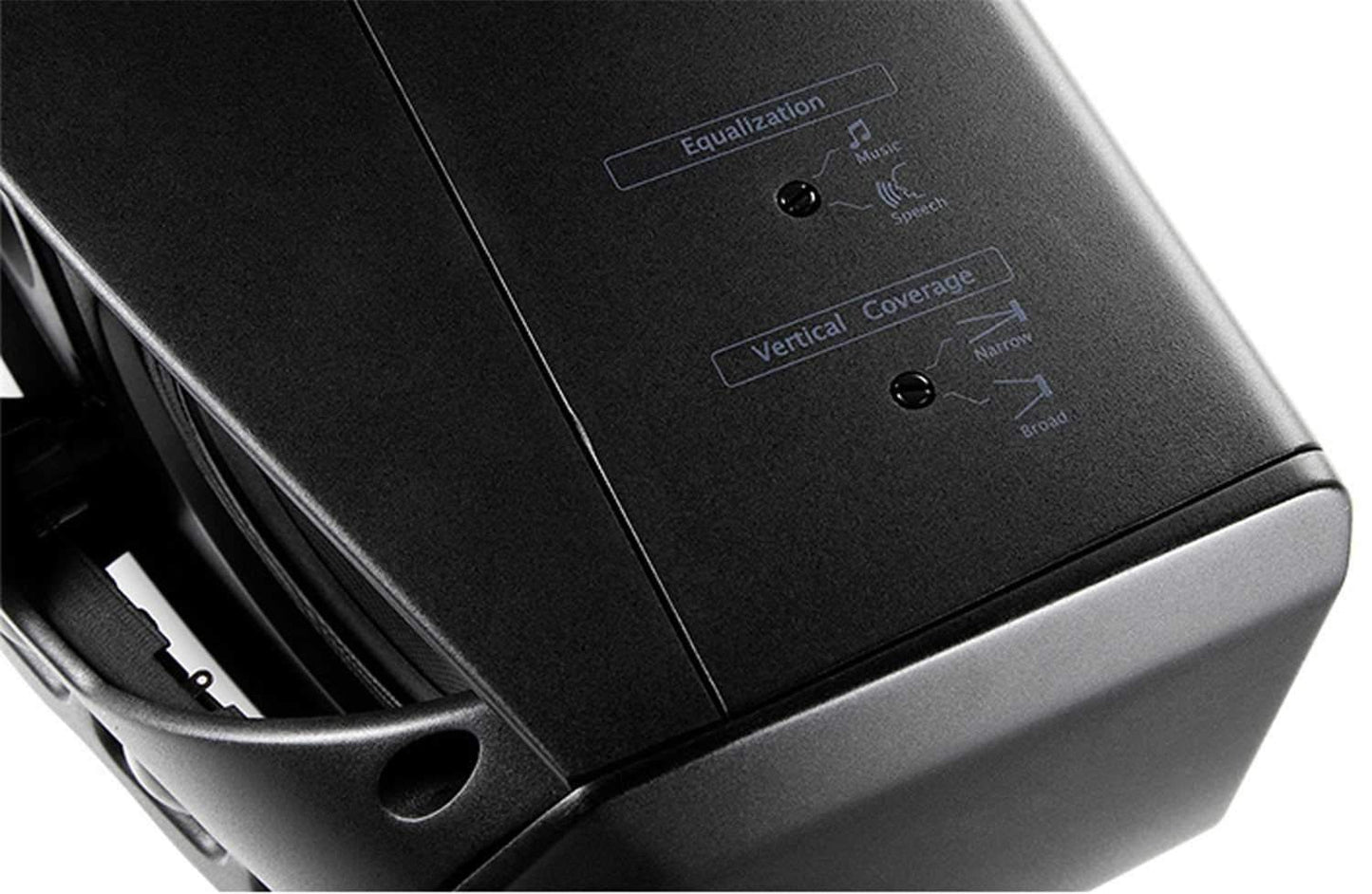

  • Vertical pattern coverage switchable between 45° for medium-throw coverage and 25° for long-throw applications
  • Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode
  • Dynamic SonicGuard overload protection of HF devices
  • Swivel (pan)/tilt wall bracket included
Specifications:
  • Components: Four 130 mm (5 in) LF drivers; Sixteen 25 mm (1 in) HF drivers
  • Frequency Range (-10 dB): 60 Hz - 20 kHz
  • Coverage: Vertical (selectable via switch); Narrow Mode: 25° (2 kHz - 16 kHz) (±10°); Broad Mode: 45° (750 Hz - 16 kHz) (±10°); Horizontal 150° (500 Hz - 8 kHz, ±20°)
  • Sensitivity (2.83V@ 1m): Narrow: (speech mode) 98 dB (1 kHz - 8 kHz), (music mode) 93 dB (300 Hz - 18 kHz); Broad: (speech mode) 96 dB (1 kHz - 8 kHz), (music mode) 92 dB (300 Hz - 18 kHz)
  • Nominal Impedance: 8 ohms
  • Power Capacity: 500 W (2000 W peak), 2 hrs; 350 W (1400 W peak), 100 hrs
  • Max SPLNarrow: (speech mode) 125 dB cont ave (131 peak), (music mode) 120 dB cont ave (126 peak); Broad: (speech mode) 123 dB cont ave (129 peak), (music mode) 119 dB cont ave (125 peak)
  • Low Frequency Drivers: 4 pcs, 130 mm (5 in) drivers, dual magnet neodymium, 38 mm (1.5 in) voice coil, damped blended textile surround, coated diaphragm for moisture, UV, and salt resistance, shielded.
  • High Frequency Drivers: 16 pcs, 25 mm (1 in) drivers, dual magnet neodymium, encased magnet and coated diaphragm for moisture, UV and salt resistance, shielded.
  • Enclosure: Fiberglass reinforced ABS cabinet, painted aluminum grille
  • Outdoor Capability: IP-54 rated, per IEC529. UV, moisture and salt-spray resistant.
  • Insert Points: 10 M6 swivel (pan)/tilt (16 mm deep) insert points on back panel.
  • Mounting: Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously variable +/-15 degree tilt, as well as 5 degree fixed increment points. Ten threaded mounting points located on back panel of cabinet conform to industry standard rectangular 127 x 70 mm (5.0 x 2.75 in) pattern for OmniMount® 60.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
  • Dimensions (H x W x D): 694 x 170 x 237 mm (27.4 x 6.7 x 9.3 in)
  • Net Weight: 9.5 kg (21 lb)
  • Included Accessories: Swivel (pan)/tilt wall bracket
