Description

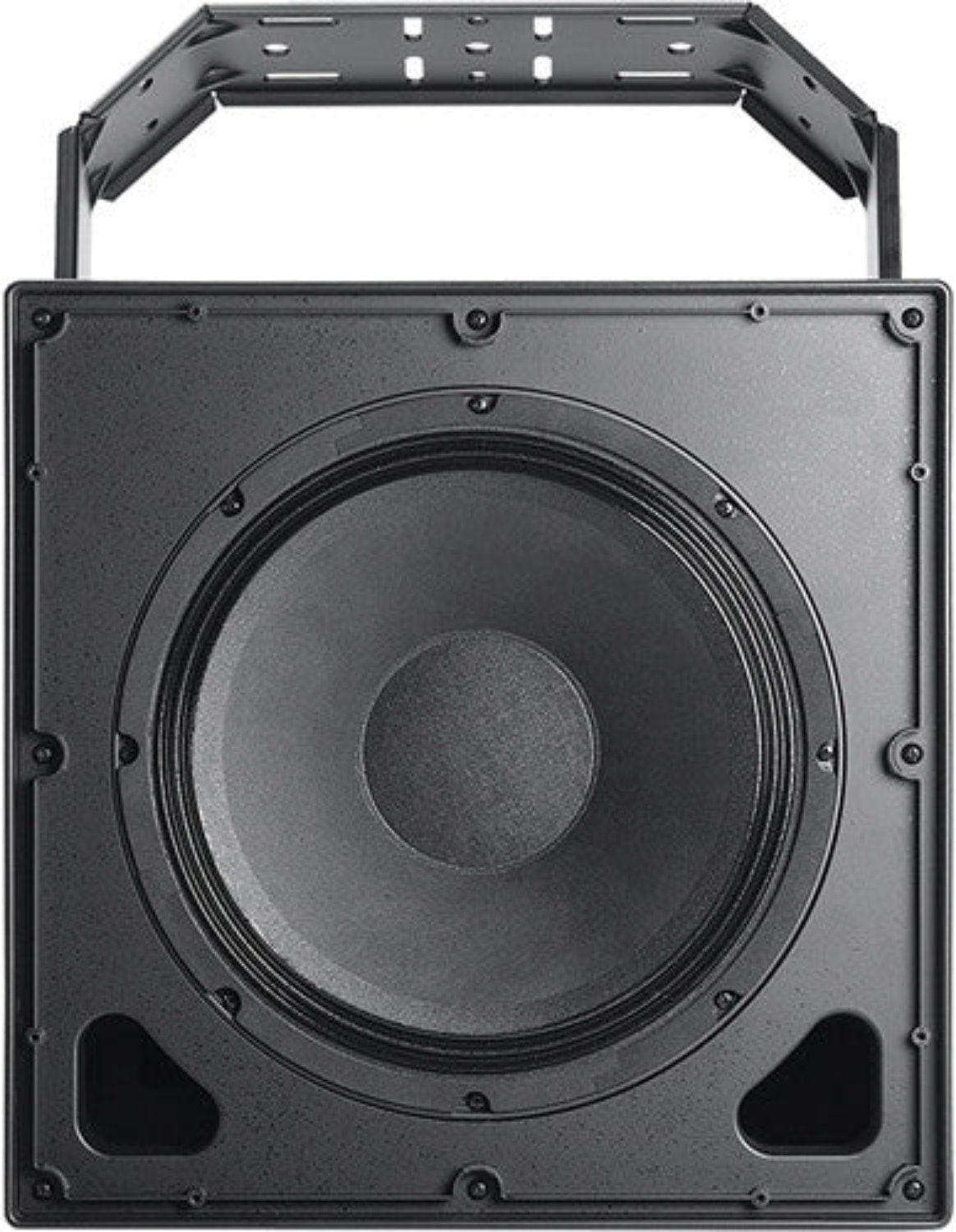

JBL AWC129 All-Weather 12-Inch 2-Way 90 x 90 Degree Co-axial Speaker

The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system ideal for speech and music in a wide variety of applications. These include sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, water parks, outdoor background music/paging systems, swimming pools, and various other outdoor or indoor venue types.

Features:

  • Highly weather-resistant IP56 rating
  • Consistent 90° x 90° broadband pattern control
  • Components:
    • 300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil
    • 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm
  • Extraordinary clarity for speech, with extended frequency response for music
  • Advanced high-slope crossover network for constant coverage and smooth, natural midrange
  • 400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability
  • High-power passive crossover network
  • Overload protection
  • 55 Hz – 20 kHz frequency response
  • 200 Watt 70V/100V multi-tap (built-in transformer)
  • Direct 8Ω low-impedance

Specifications:

  • Frequency Range (-10dB): 55 Hz – 20 kHz
  • Frequency Response (±3 dB): 80 Hz – 20 kHz
  • Coverage Pattern: 90° x 90°
  • Directivity Factor (Q): 10.1 (1 k – 16 kHz)
  • Directivity Index (DI): 9.5 dB (1 k – 16 kHz)
  • System Power Rating:
    • 400 W (1600 W peak), 2 hrs
    • 250 W (1000 W peak), 100 hrs
  • Sensitivity (2.83V @ 1m): 96 dB (Ave. 80 Hz – 20 kHz)
  • Maximum SPL (1m):
    • Direct 8Ω: 122 dB (peaks of 128 dB)
    • 200 W Tap: 119 dB
  • Crossover Network:
    • 1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF
    • 2nd order low-pass to LF
  • Nominal Impedance: 8 ohms
  • Transformer Taps:
    • 70V: 200W, 100W, 50W, 25W
    • 100V: 200W, 100W, 50W
  • LF Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil
  • HF Driver:
    • 25 mm (1 in) diaphragm and voice coil diameter
    • High temperature polymer diaphragm, patented design, fluid-cooling
  • HF Driver Protection: Minimum audibility SonicGuard™ HF overload protection
  • Enclosure: ABS with Glass enclosure, heavily braced
  • Attachment:
    • Two M10 (fine-thread) points for included U-bracket
    • M6 secondary safety attachment point on back panel
  • Grille:
    • Corrosion-resistant zinc-rich extra-thick powder coated steel grille
    • 3-layer assembly with foam and woven poly mesh backing
  • Input Connection:
    • CE-compliant covered barrier strip terminals
    • Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm² (12 AWG) wire or spade lugs
    • Terminal compartment cover equipped with gland nut for water-tight seal
  • Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs)
  • Dimensions:
    • 402 x 402 x 445 mm (15.8 x 15.8 x 17.5 in)
    • Cabinet 470 mm (18.5 in) depth with gland nut 542 mm (21.4 in) including bracket extending to back
  • Colors: Available in gray (similar to Pantone 420C) and black (-BK)
  • Net Weight (each):
    • 15.9 kg (35.0 lb)
    • 18.9 kg (41.5 lb) with U-bracket
  • Shipping Weight: 23.4 kg (51.5 lbs)
  • Included Accessories: U-bracket, matches loudspeaker color (gray or black), zinc-rich extra-thick powder coated steel
  • Crossover Modes: Passive
  • Nominal LF Driver Impedance: 8 ohms
  • Suspension Attachment: Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel
