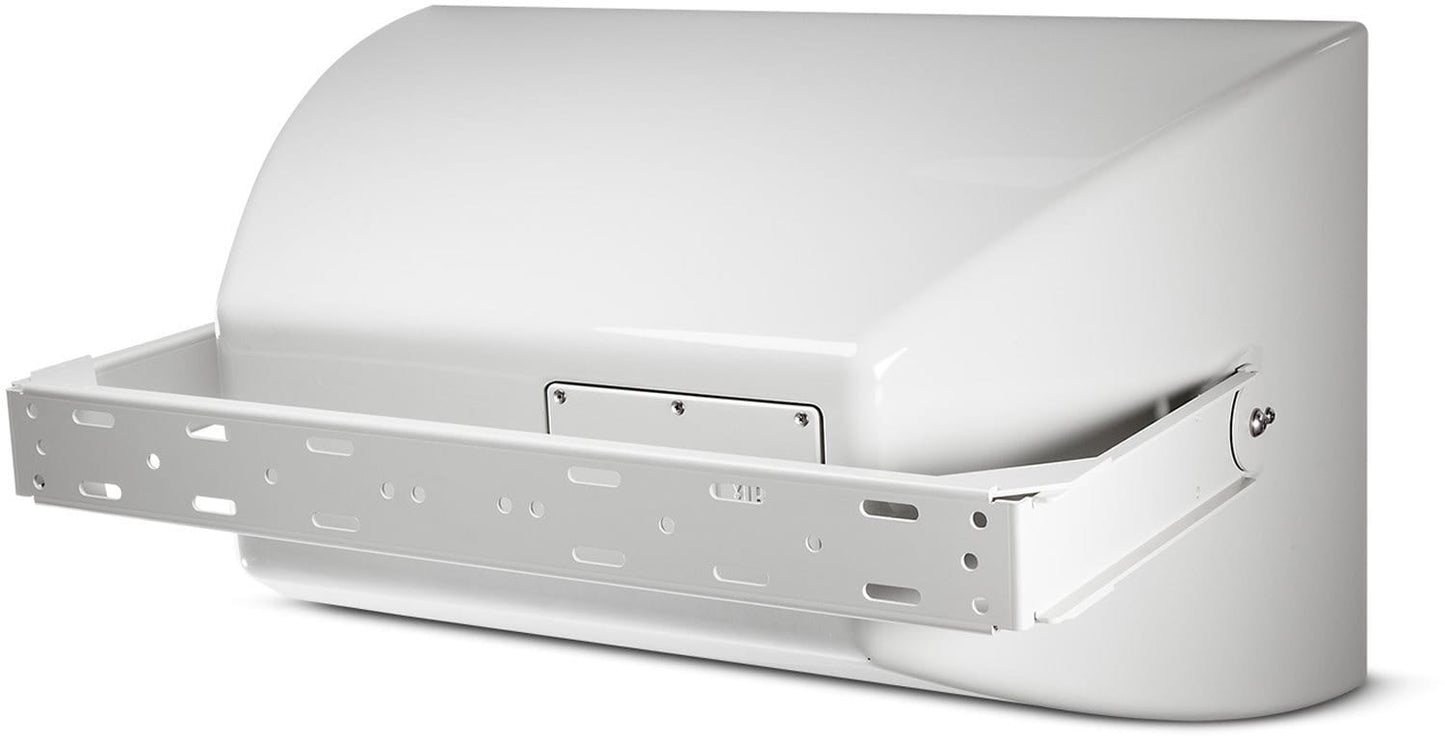

JBL AW595 15-Inch 2-Way Full-Range 90 x 50 Degree Speaker - Gray

High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn

The AW595 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The AW595 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Features:

  • Weather-Resistant, All Fiberglass Enclosure
  • 90° x 50° Coverage
  • 2265H-1 Differential Driver® Low- Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable wave guide for vertical or horizontal orientation
  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included
  • U-type Mounting Bracket Included

Applications:

  • Sports Facilities
  • Themed Entertainment Venues
  • Outdoor Entertainment Centers
  • Cruise Ships
  • Water Parks

Specifications:

  • Frequency Range (-10 dB): 35 Hz – 20 kHz
  • Frequency Response (±3 dB): 55 Hz – 19 kHz
  • Coverage Pattern: 90° x 50°, rotatable waveguide
  • Directivity Factor (Q): 12.6
  • Directivity Index (DI): 11 dB
  • Crossover Frequency: 1.2 kHz
  • Long-Term System Power Rating (IEC): 600 W (2400 W peak), 100 hrs
  • Maximum SPL: 128 dB-SPL cont avg (134 dB peak)
  • System Sensitivity (1W @ 1m): 100 dB SPL
  • 70V/100V Transformer Taps: 70V: 400 W, 200 W, 100W 100V: 400W, 200W
  • Low Frequency Driver: 1 x JBL 2265H 380 mm (15 in.) Differential Drive® driver with 75 mm (3 in) dual voice coil
  • LFD Nominal Impedance: 8 ohms
  • LFD Sensitivity (1W @ 1m, within operational band): 98 dB SPL
