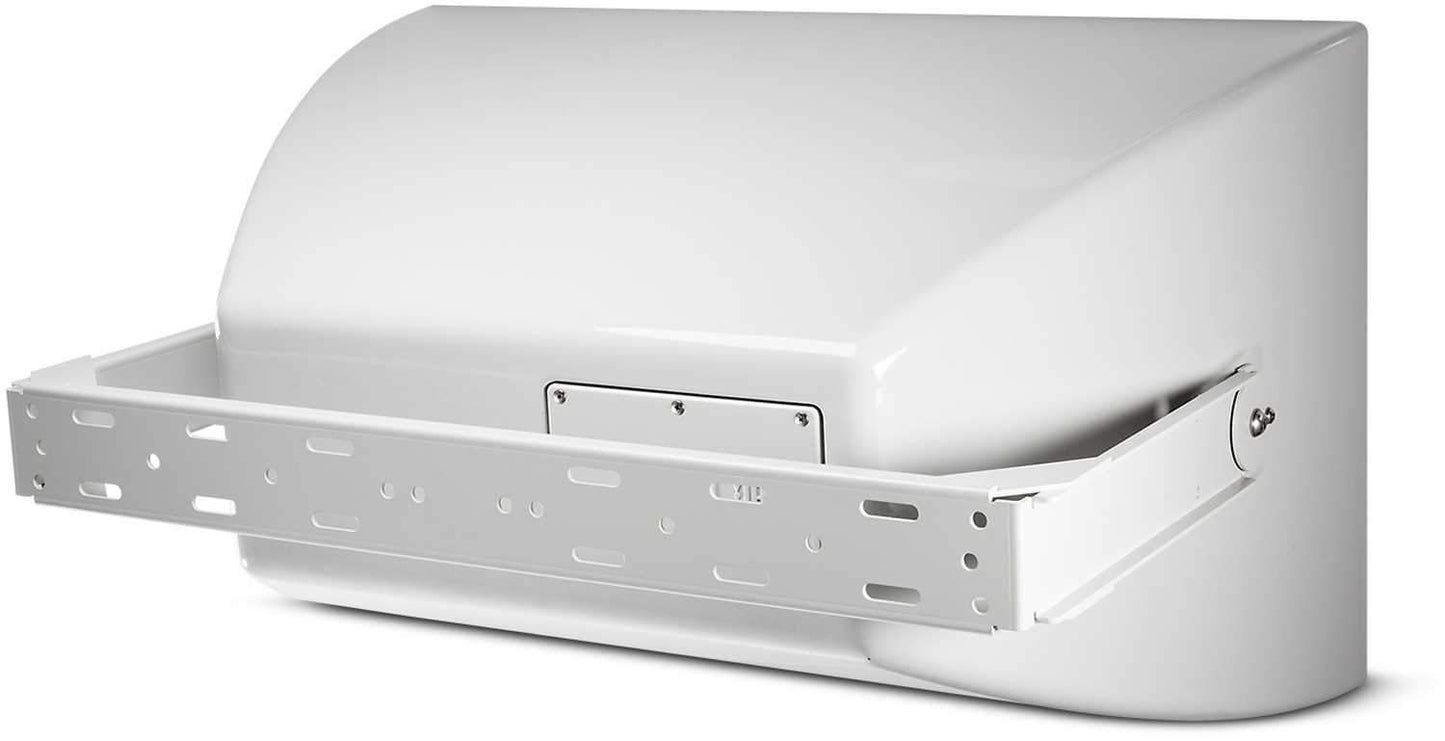

JBL AW526-LS 15-Inch 2-Way All-Weather 120 x 60 Degree Speaker

High Power 2-Way All Weather Loudspeaker with 1 x 15" LF for Life Safety Applications

The AW526-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer.

Features:

  • Weather-Resistant, All Fiberglass Enclosure
  • EN54-24 Compliant
  • 120° x 60° Coverage
  • 2265H Differential Drive® Low-Frequency Driver
  • 2432H High Frequency Compression Driver
  • Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Available in Gray and Black finish
  • 400 W, 70/100V Transformer Included
  • U-type Mounting Bracket Included

Applications:

  • Sports Facilities
  • Themed Entertainment Venues
  • Outdoor Entertainment Centers
  • Cruise Ships
  • Water Parks

Specifications:

  • Frequency Range (-10 dB): 39 Hz – 20 kHz
  • Frequency Response (±3 dB): 86 Hz – 17 kHz
  • Coverage Pattern: 120° x 60°, rotatable waveguide
  • Coverage Angle Horizontal Vertical: 500 Hz 1000 Hz 2000 Hz 4000 Hz 128° 98° 115° 108° 108° 95° 67° 46°
  • Directivity Factor (Q): 7.9
  • Directivity Index (DI): 9 dB
  • Crossover Frequency: 1.1 kHz
  • Long-Term System Power Rating (IEC): 400 W (1600 W peak), 100 hrs
  • Maximum SPL: 127 dB-SPL cont avg (133 dB peak)
  • Maximum SPL (@ 4m): 112.11 dB
  • System Sensitivity (1W @ 1m): 100 dB
  • Sensitivity (1W @ 4m): 86.98 dB SPL
  • 70V / 100V Transformer Taps: 70V: 400 W, 200 W, 100W 100V: 400W, 200W
  • Low Frequency Driver: 1 x JBL 2265H 380 mm (15 in.) Differential Drive® driver with 75 mm (3 in) dual voice coil
  • Nominal Impedance: 8 ohms
  • Sensitivity (1W @ 1m, within operational band): 98 dB SPL
