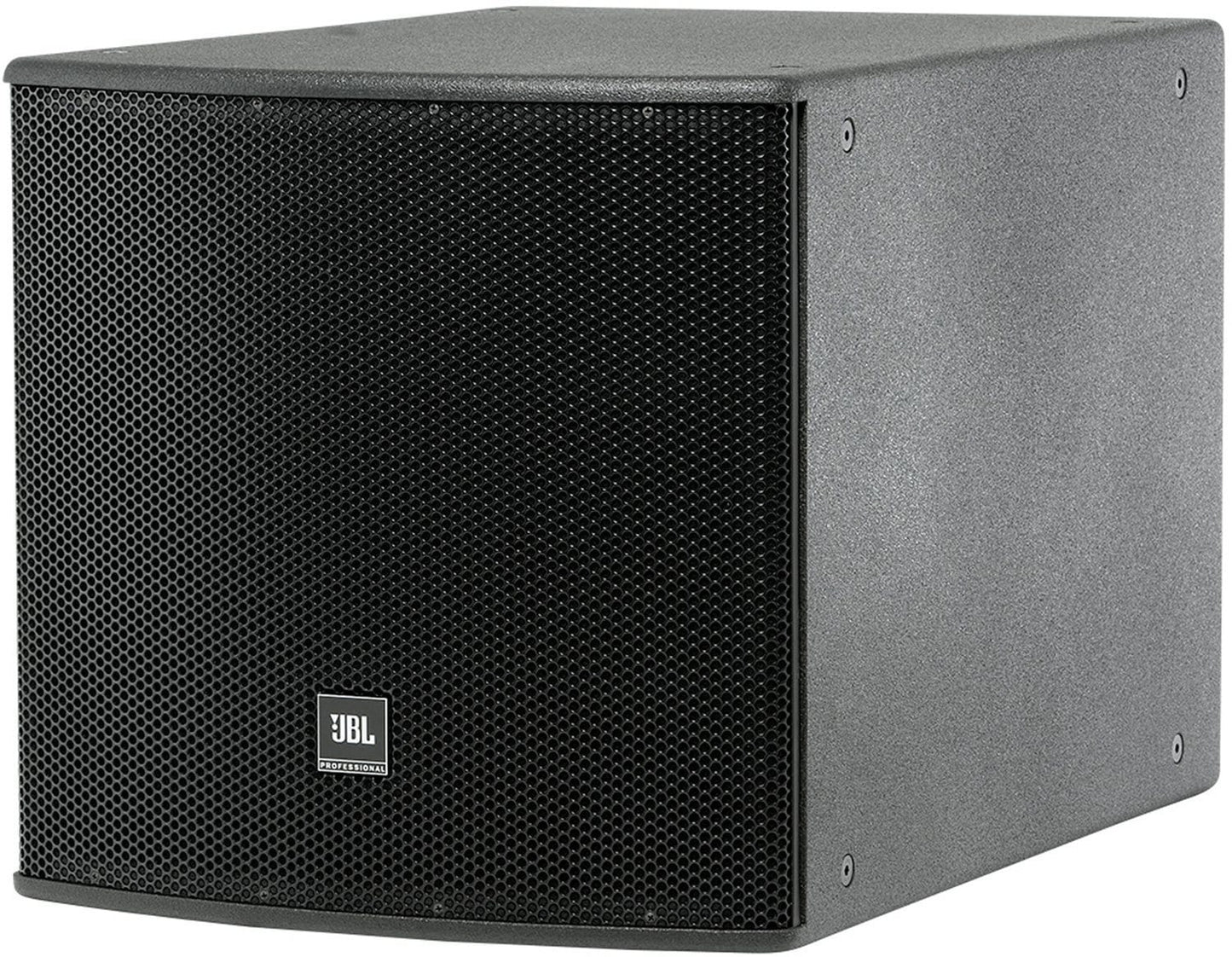

JBL ASB7118 Single 18-Inch High Powered Subwoofer

Ultra Long Excursion High Power Single 18" Subwoofer

The ASB7118 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s exclusive 2269H Ultra Long Excursion 18" Differential Drive® woofer. This woofer features neodymium magnet, dual voice coils and dual gaps, JBL’s exclusive Vented Gap Cooling™ and ultra robust composite cone for high excursion and extra long life. Woofer is capable of a peak-to-peak maximum excursion of 89 mm (3.5").

Features:

  • 2269H 18" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
  • 2000 watts continuous pink noise,
  • 8000 watts peak power handling capacity
  • Ultra Long Excursion
  • Large vent area for high output with low distortion
  • For ground-stacked or suspended applications in stand-alone arrays or in combination with other
  • AE Series products

Specifications:

  • Frequency Range (-10 dB): 22 Hz - 1 kHz
  • Frequency Response (± 3 dB): 34 Hz - 1 kHz
  • Transducer Power Rating: 2000 W (8000 W peak), 2 hrs
  • Long-Term System Power Rating: 1200 W (4800 W peak), 100 hrs.
  • Maximum SPL (1m): 25 Hz - 200 Hz: 129 dB-SPL cont avg (135 dB peak)
  • System Sensitivity: 25 Hz - 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
  • Nominal Impedance: 8 ohms
  • Low Frequency Driver: 1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive® VGC™ driver
  • Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
  • Suspension Attachment: 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
  • Finish: Black DuraFlex™ finish. White available upon request.
  • Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
  • Input Connector: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
  • Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
  • Dimensions (H x W x D in vertical cabinet orientation): 546 x 560 x 815 mm (21.5 x 22.0 x 32.1 in)
  • Net Weight: 42.9 kg (94.5 lb)
  • Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers.
