Description

JBL 708P 7 Series 8-Inch Studio Reference Monitor

8" Bi-Amplified Master Reference Monitor

JBL 708P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The 708P leverages new patent-pending driver technologies and JBL’s renowned Image Control Waveguide to deliver extraordinary output, stunning detail, an expansive soundstage, and greater accuracy in a broad range of rooms. 708P delivers several times the output of other comparably-sized studio monitors, providing significantly greater dynamic range and greater working distances.

Features:

  • Next-generation JBL driver technology
  • Patent-pending Image Control Waveguide
  • Integrated dual amplification system with internal floating-point DSP
  • Comprehensive room EQ and delay controls
  • Compact enclosures for easy placement and installation

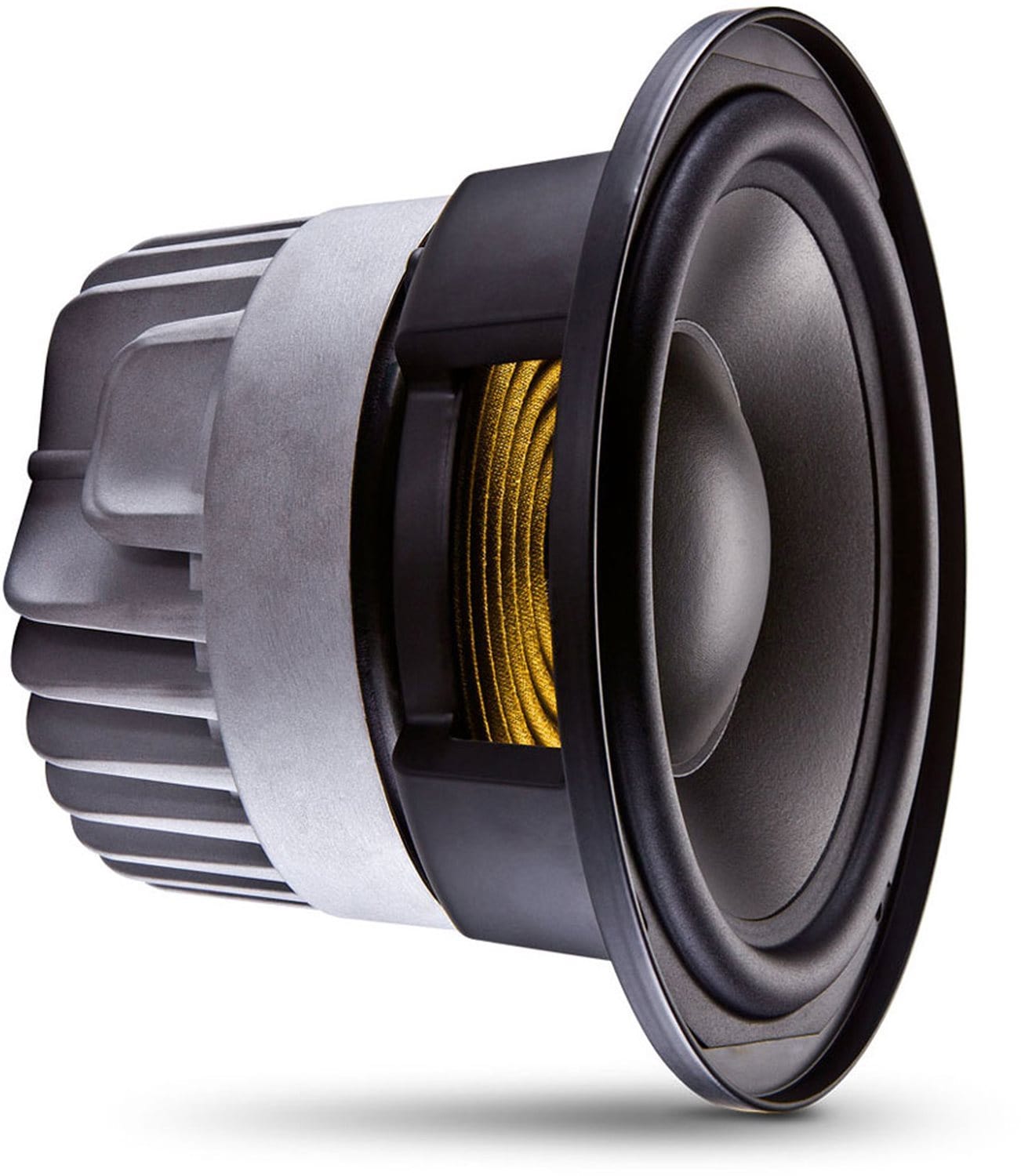

  • JBL 728G low-frequency transducer with patented Differential Drive® allows extended low frequency with low distortion and high SPL
  • JBL 2409H high-frequency transducer with low-mass annular diaphragm
  • JBL-designed patent-pending Image Control Waveguide
  • 2-channel Class-D amplifier HF 250W / LF 250W
  • 192 kHz 32-bit floating point processing
  • 12 bands of Room EQ, 8 Bands of User EQ
  • 6 factory presets, 6 user-defined presets
  • 18 milliseconds of Room Delay, 150 milliseconds of AV Sync Delay
  • 1 x XLR-1/4" balanced combination analog audio input
  • 1 x XLR AES3 format digital input with 1 x XLR pass-through output
  • Digital input will accept sample rates of up to 192 kHz
  • User enabled sample rate converters
  • RJ-45 network connection for Harman HiQnet connectivity
  • Rear-panel multi-function controls and LCD display allow selection of ofinput sensitivity, input trim, Room EQ, User EQ, Room Delay, AV Sync Delay
  • Integrated handles
  • Top and bottom mounting points; birch plywood cabinets reinforced for safe mounting
  • Protective steel grilles

Specifications:

  • Frequency Response: -1.5 dB @ 45Hz – 23kHz
  • Frequency Range: 35Hz – 36 kHz
  • Max SPL: (80 Hz - 20 kHz) >108 dB SPL / 1m
  • Maximum Peak SPL: (80 Hz - 20 kHz) >114 dB SPL / 1m
  • HF Driver: 2409H
  • LF Driver: 728G
  • Dividing Network Transition Frequency: 1.7 kHz
  • Input Types: 1 x XLR-1/4"" balanced combination analog audio input
  • Dimensions (HxWxD): 17.25 x 9.75 x 11.5 in (438 x 248 x 292 mm)
  • Weight Each: 25.2 lb (11.5 kg)
  • Enclosure: Birch plywood reinforced for mounting
  • Mounting: Top, bottom and rear mounting points. 4-hole mounting pattern
