Description

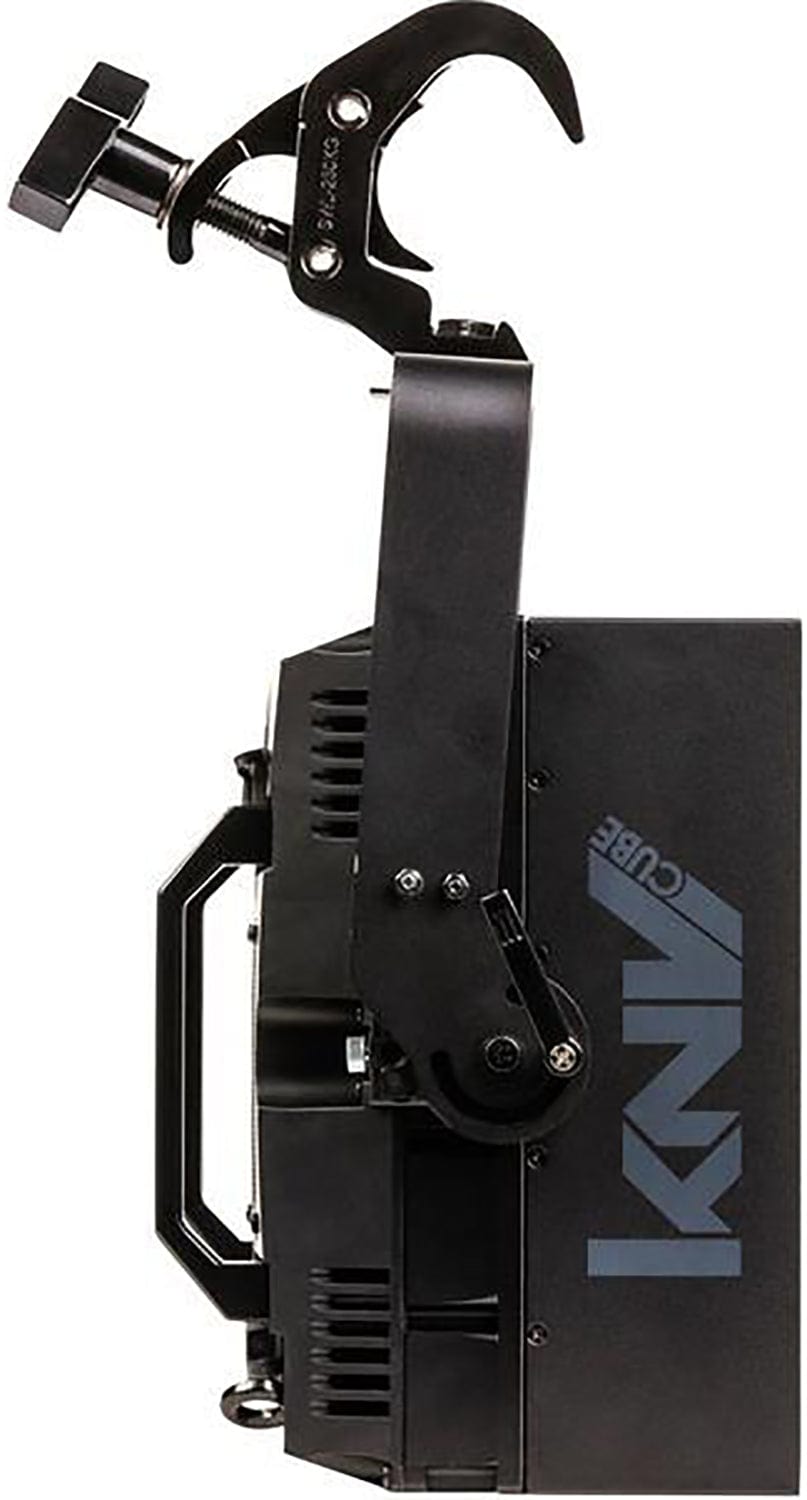

GLP KNV Cube Modular LED Panel

The KNV from GLP comes in four variants, the KNV Cube, KNV Arc, KNV Dot and KNV Line. Each housing can be used independently, or combined seamlessly to provide massive fixture design options.

Featuring 1, 5 or 25 high-powered pixels with white and RGB elements and a combined output of more than 50,000 lumens, each KNV is equally happy used as a pixel-mapped surface, strobe, blinder, washlight, and more.

IP54 housings allow KNV units to be used year round, in even the most inclement conditions and climates.

An included DMX pattern generator offers multiple effect libraries, with multiple controls creating a vast array of graphic options.

Features:

  • Light Source - 25 x Power Pixel containing 1 x White Light LED and 16 x RGB LED
  • Output - up to 50,000 Lumen per module
  • Modular System - for individual, creative designs

Specifications:

  • KNV Light Source:
    • Power Pixel:
      • 1 x 30 W Hyper White
      • 16 x 0.25 W RGB
    • Power Pixel count: 25 (5 x 5)
  • Control:
    • Control Modes:
      • Normal
      • Compressed
      • Pixel-Mapping
    • Protocol: DMX (USITT DMX512-A)
    • Display:
      • illuminated graphic LCD
      • self charging buffer battery
      • backlit buttons
    • Cooling:
      • temperature controlled
      • overheating protection
  • Connectors:
    • Signal connection:
      • etherCON
      • In/Out
    • Power input:
      • Neutrik powerCON TRUE1
      • In/Out
  • Operating Condtions:
    • Mains voltage: 100 – 240 VAC / 50 – 60 Hz
    • Power (Watt @ 230V): 750 W
    • Maximum ambient temperature: 40°C / 104°F
    • Operating Position: any
    • Protection Rating (IP): IP 54
    • EEC: A
    • EEI: 0.218
    • Ec (kWh/1,000h): 742
  • Mounting Options:
    • Mounting:
      • KNV Connector
      • combined hanging / floorstand yoke
  • Housing Colors:
    • Standard colors: black
  • Shipping:
    • Single fixture: cardboard
    • Tourpack:
      • 6-way
      • Flight Case
  • Dimensions & Weight:
    • Height (head vertical): 250 mm / 9.8 in
    • Width (across yoke): 250 mm / 9.8 in
    • Length: 250 mm / 9.8 in
    • Weight: 9.3 kg / 20.5 lbs
