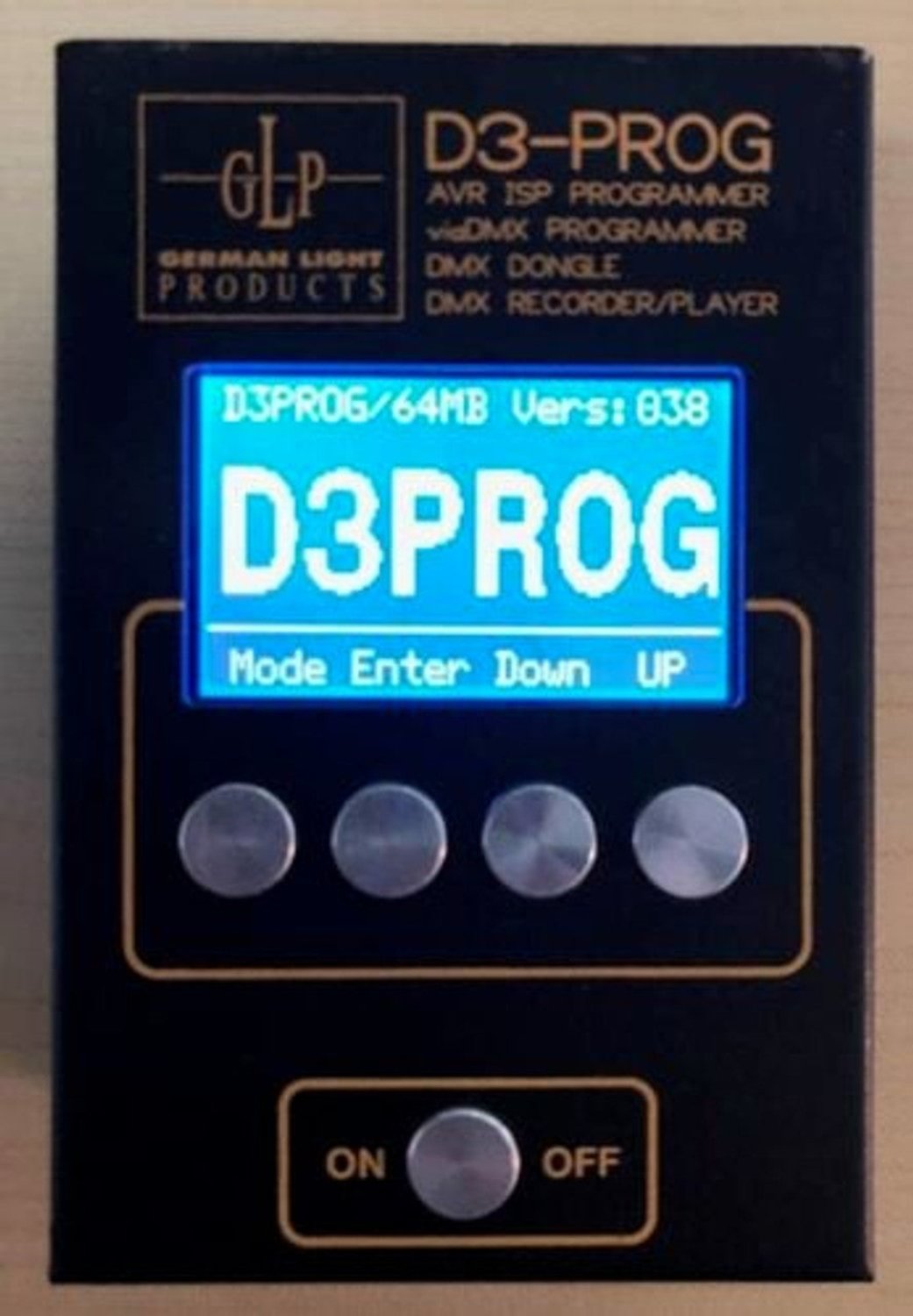

GLP 9506 D-Prog Firmware Uploader

The D3Prog is a service tool for firmware updates of GLP devices and should not be missing in any technician's bag.

Via USB or Sub-D 9pin, different firmware versions can be stored on different memory locations via PC, which can then be conveniently loaded onto the fixture via DMX Link (RS458/DMX) or AVR/ISP at the touch of a button.

To bypass unnecessarily required XLR adapters, the D3Prog is equipped with both an XLR 5-pin female and an XLR 3-pin female connector. Multiple fixtures in a DMX line can also be brought up to speed simultaneously, saving an enormous amount of time.

For maximum service convenience, the D3prog is battery-powered and can therefore be used independently of mains voltage.

Features:

• Compact and portable design for easy firmware updates on-site
• Compatible with a wide range of GLP lighting products
• Simple interface for quick and efficient firmware uploads
• USB connectivity for reliable data transfer
• Supports multiple firmware versions for versatile device compatibility
• Includes status indicators for upload progress and error detection
• Durable build for use in professional lighting environments

Specifications:

• Connectors:
  • 1x each:
  • USB Type B
  • Sub-D 9 Pin male
  • XLR 5-Pin female (DMX Link)
  • XLR 3-Pin female (DMX Link)
• Dimensions & Weight:
  • Height: 43 mm / 1.69 in
  • Width: 120 mm / 4.72 in
  • Length: 78 mm / 3.07 in
• Miscellaneous:
  • Control: 2.24” LCD Display, 5 buttons
  • Batteries: 2x Mignon 1.2 V
