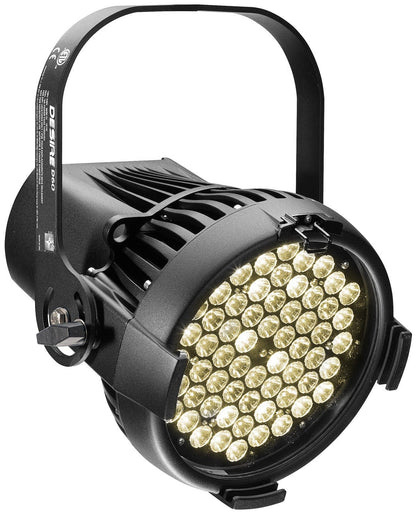

ETC Desire D60 Studio Daylight LED Par
The Desire D60 Studio Daylight LED Par delivers white-light output with sixty integrated 5600 K LEDs. Also, it offers three selectable LED options to match your specific colour temperature requirements.
The LED Par hosts a rugged die-cast construction and quiet fan cooling.
The fixture supports both console-controlled operation and standalone mode. It also uses advanced optics, including multiple lens options and the x7 Colour System, which provides five LED colours to fill spectral gaps in white-light output.

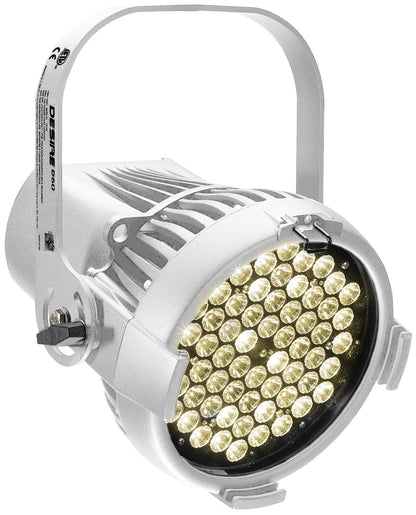

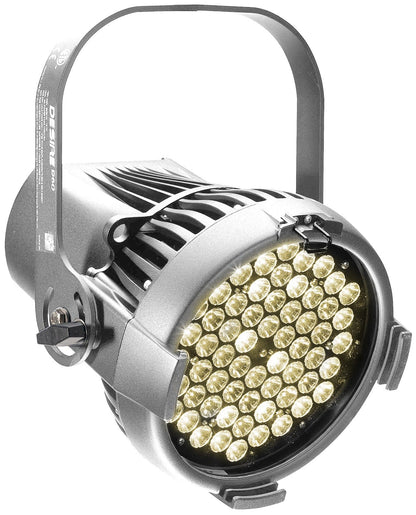

The Desire D60 Studio HD LED Par is available in black, silver or white.
Specifications:
- Source
-
LED details- 60 Lumileds LUXEON® Rebel 2.5 W LED
-
Max lumens- Studio Daylight: 8,216
-
Lumens per watt- Studio Daylight: 57.0
-
L70 Rating Hours to 70% output- 50,000 hours
- Colour
-
Colours used- Studio Daylight: White
-
Colour temperature range- Studio Daylight: 3200 K
-
Calibrated array- Studio Daylight: No
- Optical
-
Beam angle range- 8-71°
-
Gate size- N/A
-
Aperture size- 9 in
-
Pattern projection- No
-
Pattern size- N/A
-
Camera flicker control/Hz range- Yes: 900–25,000 Hz
-
Notes- Secondary lenses available for multiple beam-spread options
- Control
-
Input method- DMX512 via 5-pin XLR
-
Protocols- DMX512/RDM
-
RDM configuration- Yes
-
UI type- LCD
-
Local control- Yes
-
Onboard pre-sets- Yes
-
Onboard sequences- Yes
-
Onboard effects- No
-
Fixture-to-fixture control- Yes
-
Notes- 15-bit virtual dimming engine
- Electrical
-
Voltage range- 100–240 VAC 50/60 Hz
-
Input method- Neutrik powerCON® in and thru / Requires power from non-dimmable source
- Inrush-
-
15 A at 120 V (First half-cycle)
-
40 A at 240 V (First half-cycle)
-
Fixtures per circuit (Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.)-9 (15 A via power thru connector)
-
Wattage typical- 161 W
- Current draw-
- 1.43 A / 120 V
- 0.58 A / 240 V
- Thermal
-
Ambient operating temp- -20°–40° C (4°–104° F)
-
Fan (controllable)- Yes (yes)
-
Droop compensation- Yes
-
dB range- 25 dBa average at 1 m
-
BTUs/hour- 549
- Physical
-
Materials- Die-cast, all metal housing
-
Colour options- Black
-
Mounting options- Yoke
-
IP rating- IP20
-
Weight- 8.7 kg (19.1 lb)
-
Included accessories- Very Narrow Round diffuser, power cable (see page 7), optional yoke/floor stand
- Warranty
-
Fixture- 5 years
-
LED array- 10 years
- Regulatory and Compliance
- Approved regulatory standards
- UL 1573
- CSA C22.2 No. 166
- CE Compliant
- EAC Compliant
