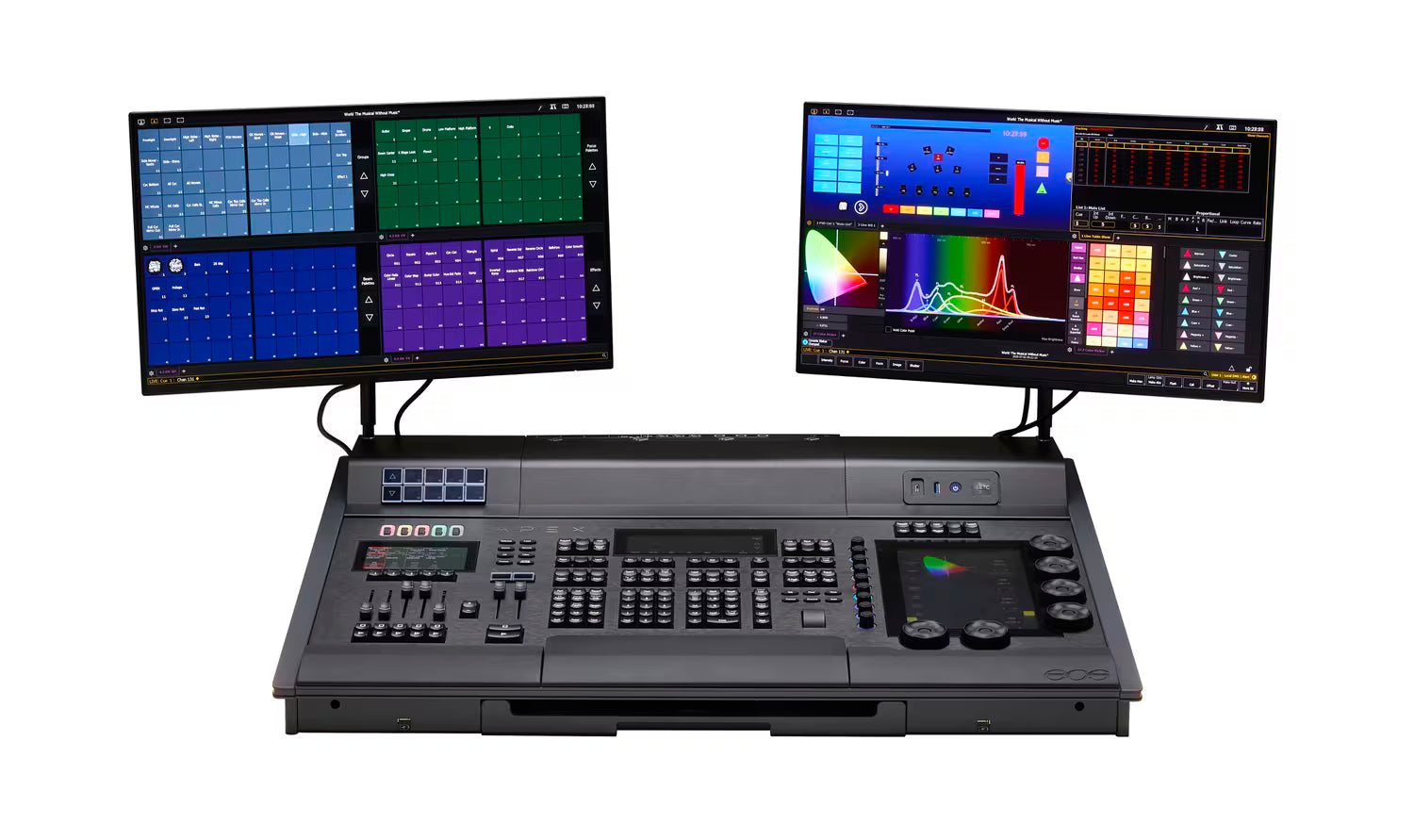

ETC Eos Apex FP Lighting Control
The Eos Apex FP delivers lighting control with customisable OLED Target keys for Direct Selects and a built-in soft keypad for intuitive operation.
The lighting control offers dual-axis folding displays, book lights for paperwork reference, accessory drawers, and encoder arrays.
This fixture offers connectivity of six Ethernet ports, four standard etherCON Gigabit and two 10-Gigabit SFP+ ports, which can be supported by both copper and fibre infrastructure for seamless integration.
Features:
- 24K output
- Headless design allows users to customize displays
- 5x 60mm motorized playbacks and scroll wheels
Specifications:
- Supports three external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/CI support
- Two 16 mm (5/8 in) baby pin ports, with locking knobs (maximum accessory weight: 17.6 lb (8 kg))
- Five 60mm motorized faders, 100 10-fader pages for configurable faders, for channel, submaster and palette/preset, timing and effect rate/speed playback control
- Five backlit scroll wheel faders with button, 100 10-fader pages for configurable faders, for channel, submaster and palette/preset, timing and effect rate/speed playback control
- One 5-inch high-resolution fader display, with multi-touch and haptic touch feedback
- Main Playback with two 60 mm motorized faders, and display load buttons
- One bank of 2x5 user-definable Target Keys
- Six force-feedback encoders for non-intensity parameter control
- Eight backlit mini encoders for non-intensity parameter control, plus one mini encoder for navigation
- Dedicated 10.1-inch high-resolution encoder display
- Dedicated high-resolution intensity level wheel
- Backlit expanded Eos keypad
- 6.3-inch keypad touchscreen, with haptic touch feedback, servicing softkeys and custom user layouts
- Built-in keyboard tray, with USB A & C ports
- Two front-facing 5-volt/2-amp USB A dedicated charging ports
- Two independently dimmable warm-white LED booklights to illuminate adjacent surfaces
- Solid-state hard drive
- Dedicated graphics processing
- IEC power input (100–240 VAC at 50/60 Hz), inset power switch with integrated breaker, locking regionalized power cable included
- Four individually configurable Gigabit Ethernet ports, etherCON connectors, PoE++ (802.3bt compliant PSE)
- Two individually configurable 10-Gigabit SFP+ ports, which accept modules for copper, single-mode fibre, or multi-mode fibre connections
- One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
- Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
- sACN and Art-Net network output protocols
- USB 3.1 ports, for flash drives, pointing devices, keyboards (8 USB A ports, 6 USB C ports)
- One Littlite XLR port
- One Kensington lock port
- I/O Garage with four bays, which accept Response backpack style show control gateways, or Gadget II DMX output modules
- Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways
- Power consumption approximately 5 A at 120 V or 230/240 V
- Ambient room temperature 0°C to 35°C (32°F to 95°F)
- Ambient humidity up to 90% non-condensing
