ETC Desire D40XTI Studio Tungsten LED Par

The Desire D40XTI Studio Tungsten LED PAR delivers colour control with the x7 Colour System, offering the industry's most complete range of spectrally-balanced saturated and tinted colours.

This fixture features an IP66 rating for reliable indoor or outdoor mounting, a rugged die-cast enclosure, silent fan-free operation, and the ability to swap lens options on-site to match your specific application. It also contains forty 3000K LEDs for high-intensity, non-variable warm-white output.

This is the install specific version of the ETC Desire D40XT Studio Tungsten LED Par.

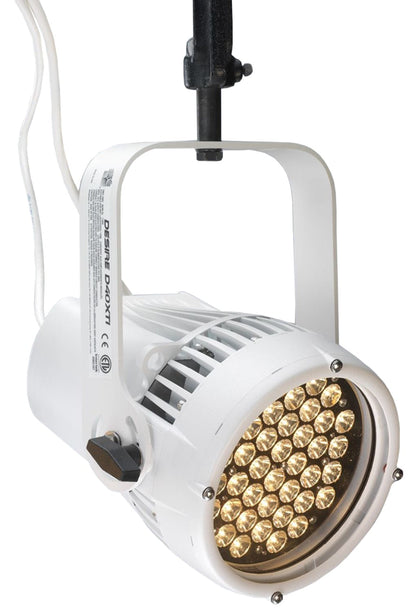

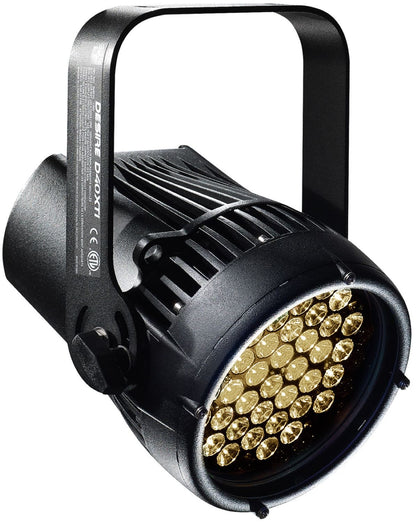

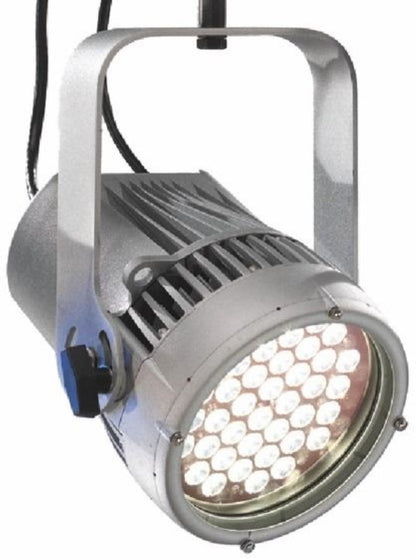

The ETC Desire D40XTI Studio Tungsten LED Par is available in black, silver, and white.

Features:

• Easy setup via any RDM device such as ETC Gateways and Gadget
• 40 LED variable colour-mixing light wash fixture (colour mixing fixtures)
• 40 LED white-light wash fixture (static white fixtures)
• ETL listed to UL1598
• IP66-rated for exterior wet location use
• Data termination board for easy installation (included)

Specifications:

• General:
  • Easy setup via any RDM device such as ETC Gateways and Gadget
  • 40 LED variable colour-mixing light wash fixture (colour mixing fixtures)
  • 40 LED white-light wash fixture (static white fixtures)
  • ETL listed to UL1598
  • IP66-rated for exterior wet location use
  • Data termination board for easy installation (included)
• Physical:
  • Rugged die-cast all-metal housing
  • Accessory ring for installation of secondary lenses
  • Available in black
  • Hanging yoke standard.
  • Effective Projected Area (EPA): 0.74
• Electrical:
  • 100VAC to 240VAC 50/60 Hz universal power input
  • Waterproof, 39” outdoor rated power lead
  • Up to 10 fixtures (15A max) may be fed on the same circuit
  • Requires power from a non-dim source
• LED:
  • 50,000 hour LED life (50,000 hours to 70% intensity)
  • 40 Luxeon® Rebel LED emitters
  • Studio Daylight and Studio Tungsten use Rebel ES white light emitters for higher output
• Colour:
  • Exclusive x7 Colour System™ seven-colour LED array
  • Broad spectrum colour interacts seamlessly with conventional sources
  • Beautifully illuminates skin tones and other objects for natural appearance and high colour rendering
  • Exclusive red-shift option emulates tungsten dimming performance (not available on static white fixtures)
  • Studio HD array uses warm and cool white light emitters with additional deep colour emitters
  • Studio Tungsten and Studio Daylight provide good colour rendering at very high brightness
• Optical:
  • Primary field angle of 17° and beam angle of 8°
  • Secondary lenses available for multiple beam spread options
  • Lenses must be ordered separately
  • Refer to accessories chart for lenses available
• Control:
  • DMX512 in and thru via termination board (included)
  • See DMX Control Table for operation modes
  • 15-bit virtual dimming engine provides smooth, high quality theatrical fades and minimizes colour shift during dimming
  • RDM functionality for address and setting changes
• Thermal:
  • Ambient operating temperature of -4° to 104°F (-20° to 40°C)
  • Active electronic thermal management for droop-free operation
  • Noiseless, fan-free convection cooling for acoustically sensitive installations
  • Fixture is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing
