ETC Desire D40 XTI Studio Tungsten LED Par

The D40 XTI Studio Tungsten offers three different LED options giving the user a choice for just the right white-light output for the job. The fixture can be configured to operate under console control for studio systems or in stand-alone ‘no console required’ mode for location lighting.

The D40 XTI Studio Tungsten contains forty 3000 K LEDs for high-intensity, non-variable warm-white output.

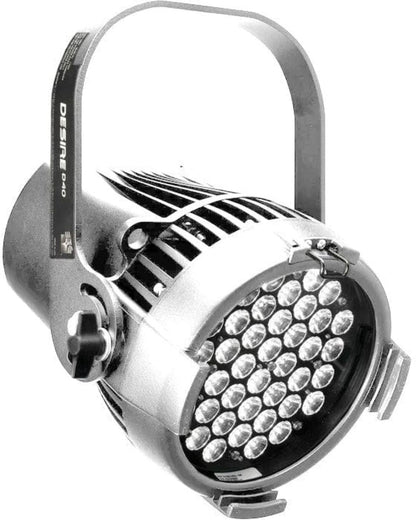

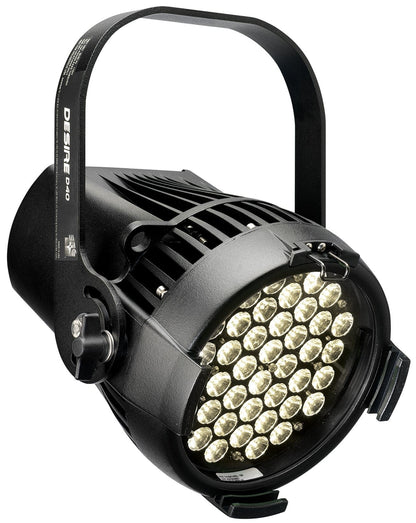

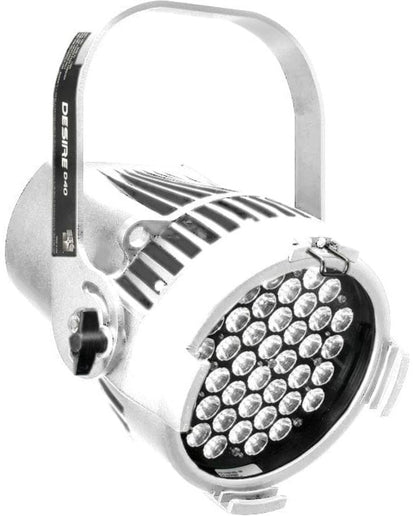

The D40 XTI Studio Tungsten is available in black, silver or white.

Specifications:

• Source:
  • LED details: 40 Lumileds LUXEON® Rebel LED
  • Max lumens: 5023
  • Lumens per watt: 52.8
  • L70 rating (hours to 70% output):50,000 hours
• Colour:
  • Colours used: Studio Tungsten: White
  • Colour temperature range: Studio Tungsten: 5600 K
  • Calibrated array: Studio Tungsten: No
  • Red shift: No
• Optical:
  • Beam angle: 11°
  • Aperture size: 7.5 in
  • Pattern projection: No
  • Pattern size: N/A
  • Camera flicker control/Hz range: Yes: 900–25,000 Hz
  • Notes: Secondary lenses available for multiple beam-spread options
• Control:
  • Input method: DMX512 via 5-pin XLR
  • Protocols: DMX512/RDM
  • Modes (footprint): See page 6
  • RDM configuration: Yes
  • UI type: LCD
  • Local control: Yes
  • Onboard presets: Yes
  • Onboard sequences: Yes
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method:
    • Neutrik powerCON in and thru
    • Requires power from non-dim source
  • Inrush (first half-cycle): :
    • 15 A at 120 V
    • 40 A at 240 V
  • Fixtures per circuit:10 (15 A via power thru)* (*Note: All measurements are for 120 V, 60 Hz. Results may vary in different regions.)
  • Wattage (typical):104
  • Current draw:
    • 0.88 A at 120 V
    • 0.42 A at 240 V
• Thermal:
  • Ambient operating temp:-20°–40°C (-4°–104°F)
  • Fan (controllable): No
  • Droop compensation: Yes
  • dB range: N/A
  • BTUs/hour: 375.32
• Physical:
  • Materials: Die-cast, all metal housing
  • Colour: Black
  • Mounting options: Yoke
  • IP rating: IP20
  • Weight: 6.4 kg (14 lb)
  • Included accessories: Hanging yoke, optional yoke/floor stand
  • Notes: Easy access slots for secondary lenses and standard 7.5 inch PAR accessories
• Warranty:
  • Fixture: 5 years
  • LED array: 10 years
• Regulatory and Compliance:
  • Approved regulatory standards:
    • UL 1573
    • CSA C22.2 No. 166
    • CE Compliant
    • EAC Compliant
