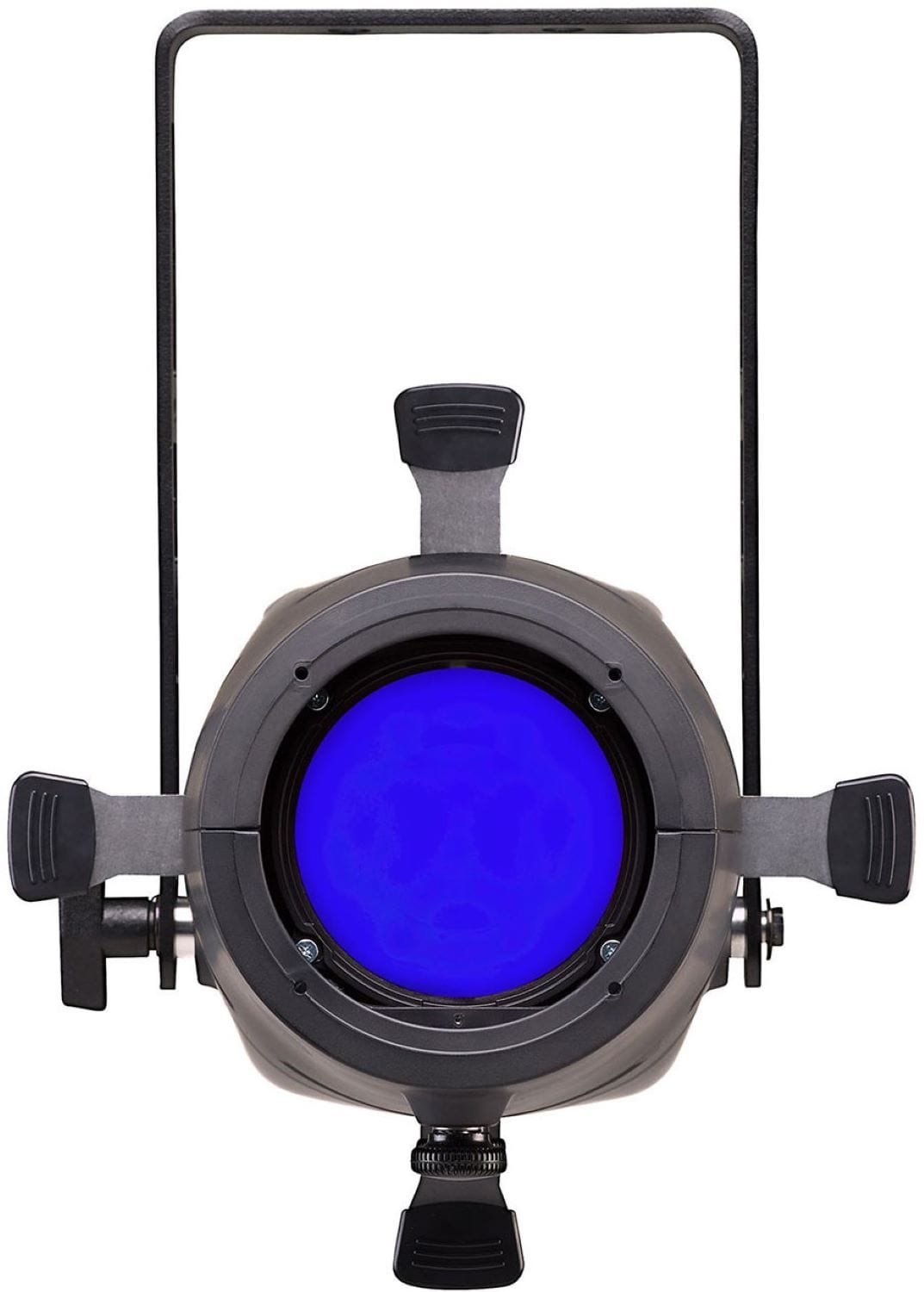

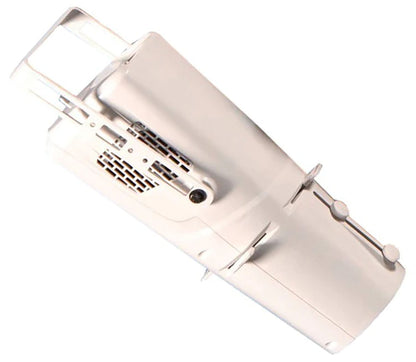

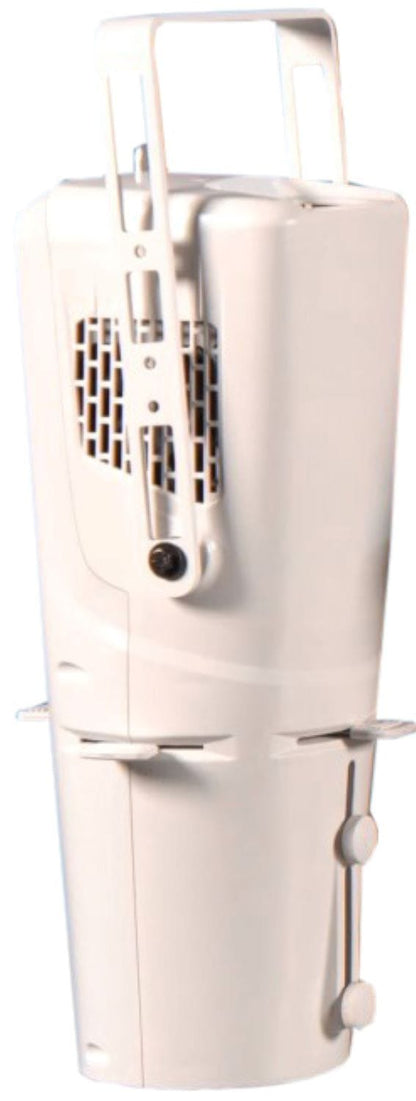

ETC ColourSource Spot Jr

The ColourSource Spot Jr delivers lighting in a compact, budget-friendly package. Its four-color light engine produces an impressive 5,708 lumens with an amazing range of colour, while integrated zoom capabilities provide flexible beam control for any venue.

The ETC ColourSource Spot Jr is available in both Original and Deep Blue arrays, and black or white.

Features:

• ETC’s RGB-L array (red, green, blue and lime) - Also available in Deep Blue, which replaces the blue LEDs with indigo for rich, saturated blues and magentas
• Simple user interface with seven-segment display
• powerCON® in and thru
• DMX/RDM in and thru (5-pin XLR)
• LED droop compensation
• Optically calibrated
• Built-in zoom

Specifications:

• Source:
  • LED details: 52 Lumileds LUXEON® C LED
  • Max lumens: 5,426
  • Max lumens per watt: 44.8
  • L70 rating (hours to 70% output): >54,000 hours (both variants)
• Colour:
  • Colours: Red, green, indigo, lime
  • Colour temperature range: Colour mixing
  • Calibrated array: Yes
  • Red shift: No
• Optical:
  • Beam angle range: Built in 25-50 degree zoom
  • Gate size: 50 mm
  • Aperture size: 6.25”-14”
  • Pattern projection: Yes
  • Pattern size: M (OD 66 mm, ID 48 mm), up to 2.03 mm (0.080 in) thick
  • Camera flicker control/Hz range: 1,200 Hz (default) and 25,000 Hz (via RDM)
• Control:
  • Input method: DMX512 via 5-pin XLR connector
  • Protocols: DMX512/RDM
  • Modes (footprint): 4 modes
  • RDM configuration: Yes
  • UI type: Seven-segment, three-button interface
  • Local control: Yes
  • Onboard pre-sets: Yes (12)
  • Onboard sequences: Yes (5)
  • Onboard effects: No
  • Fixture-to-fixture control: Yes
  • Notes: 15-bit virtual dimming engine
• Electrical:
  • Voltage range: 100–240 VAC 50/60 Hz
  • Input method: powerCON power in and thru
  • Inrush:
    • 35 A at 120 V (First half-cycle)
    • 49 A at 240 V (First half-cycle)
  • Fixtures per circuit: 7 fixtures (15 A power thru connector) or 8 fixtures (R20 module or similar)
  • Wattage typical:
    • 166 W / 2.6 W at 120 V
    • 162 W / 2.0 W at 240 V
  • Current draw:
    • 1.59 A at 120 V
    • 0.87 A at 240 V
• Thermal:
  • Ambient operating temp: 0°–40° C (32°–104° F)
  • Fan (controllable): Yes (No)
  • Droop compensation: Yes
  • dB range: Pending
  • BTUs/hour : 549
• Physical:
  • Materials: ABS plastic
  • Colour option: Black
  • Mounting options: Yoke
  • IP rating: IP20
  • Weight: 5.4 kg (12 lb)
  • Included accessories: Hanging yoke, 1.5 m power cable
