EPSON V12HA46010 External Projector Camera (ELPEC01)

The PixAlign ELPEC01 makes achieving sophisticated projection applications easy. Built for use with select Epson interchangeable lens projectors, the camera provides access to powerful projection tools that help speed up and simplify projector color calibration and geometric correction adjustment. Ideal for installations with multiple projectors, the PixAlign camera facilitates accurate color matching across networked projectors. The tiling assist tool is ideal for large or super wide displays via automated edge blending, while the stacking assist function allows for fast, simple stacking of two or more projectors to create a seamless image without the need for manual finetuning. Plus, with its easy-to-use design that doesn’t require an angle of view adjustment, getting up and running has never been easier.

Features:

• Powerful, time-saving features — camera helps speed up and simplify projector color calibration, geometric correction adjustment and remote monitoring
• Fast installation — attach camera without tools or angle of view adjustment
• Convenient access to projector tools — such as color calibration and screen matching
• Access the powerful tiling assist and stacking assist function — via the Epson Projector Professional Tool (EPPT) application from Windows® or macOS®

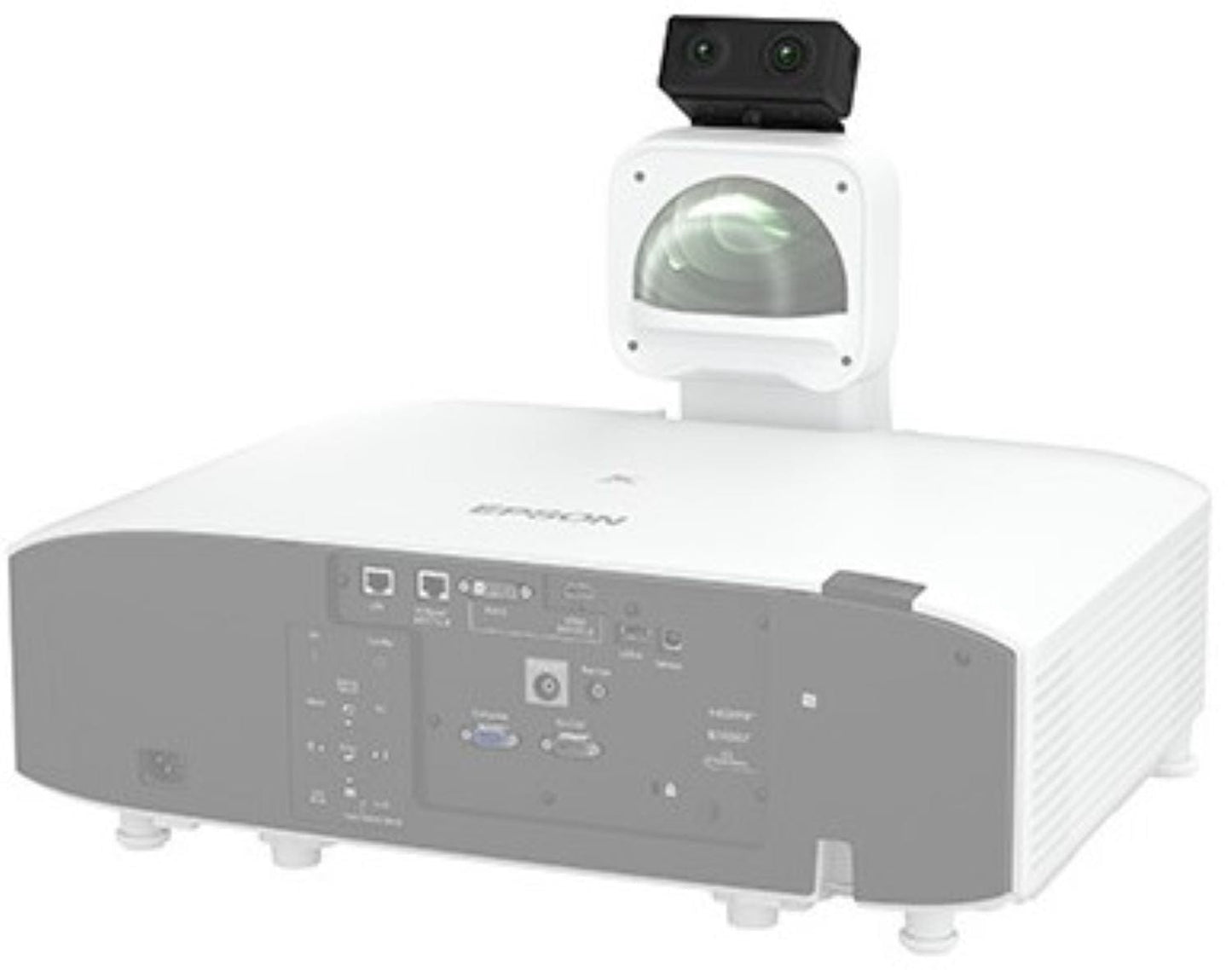

• Enhanced flexibility — camera attaches to the front of select Epson interchangeable lens projectors that do not have a built-in camera
• Attaches to select Epson UST lenses — providing access to camera assist functions
• Remote monitoring capabilities — camera allows for image capture for remote monitoring and remote maintenance
• Easy, accurate color matching — using a separate camera for each projector, automatically adjust the picture for seamless color accuracy and brightness between multiple projectors, without the need for manual fine tuning
• Install and adjust multiple projectors — easily install multiple projector with incredible accuracy
• Significantly reduce installation labor — via access to powerful projector tools

Specifications:

• Sensor Size: 1/2.9 inch
• Native Resolution: 1600 x 1300
• Lens (Wide) Type: No optical zoom/focus
• F-Number: F = 1.8
• Lens (Tele) Type: No optical zoom/focus
• F-Number: 2.2
• Interfaces:
  • 1x USB Type-B
  • MicroUSB USB2.0 HighSpeed
• Operating Temperature: 32 ˚ to 122 ˚F (0 ˚ to 50 ˚C) (0 m/0 ft to 2286 m/7500 ft), 32 ˚ to 113 ˚F (0 ˚ to 45 ˚C) (over 2286 m/7500 ft)
• Operating Altitude: 0 m to 3,048 m (0 ft to 10,000 ft)
• Power Supply Voltage: 5 V (US Bus Powered)
• Power Consumption: System on: Less than 1.5 W (300 mA)
• Structure Color: Black
• Dimensions (W x D x H):
  • External Camera (Maximum): 4.05" x 1.93" x 1.85"
  • Weight: 0.33 lb
