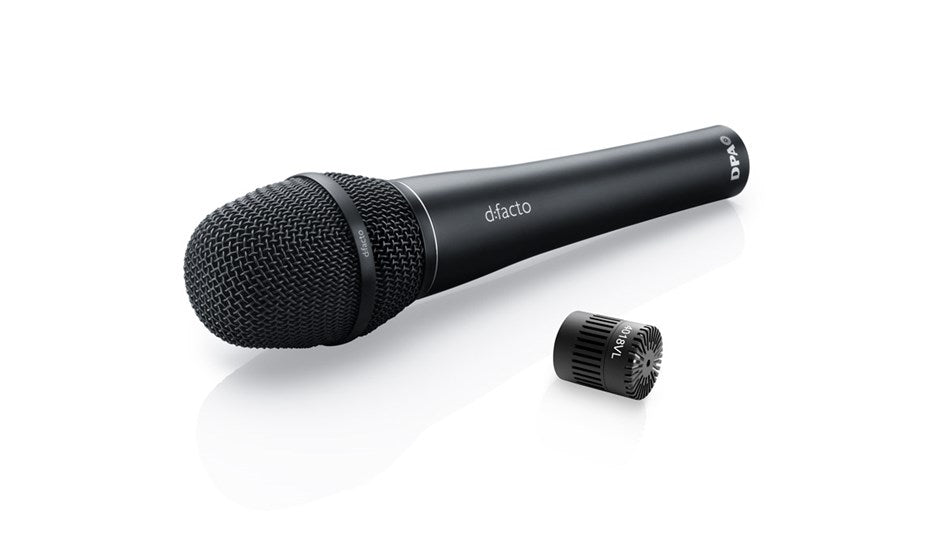

DPA d:facto 4018VL Linear Vocal Microphone

DPA d:facto 4018VL Linear Vocal Microphone

The d:facto series brings true studio sound to the live stage and broadcasting studio.

This version is extremely linear, engineered specifically for audio engineers who prefer setting their own unique impression on the final sound.

The modular nature of the d:facto series allows you to switch the capsule as well as the adapter, making it the most flexible vocal microphone available on the market. Customize your sonic character with interchangeable components to match your exact requirements, whether you're capturing vocals in a live venue or recording studio environment. Built for professionals who demand precision and control, the 4018VL delivers transparent, uncoloured audio that serves as the perfect foundation for your mixing and processing choices.

The DPA d:facto 4018VL Linear Vocal Microphone is available with a wired DPA handle, an SL1 adapter, a WI2 adapter, an SE2-ew adapter in black or nickel, or an SE5 adapter in black or nickel.

Features:

• Extraordinary natural sound
• Perfectly uniform supercardioid directionality
• High separation
• Extreme SPL handling
• Low handling noise
• Sleek design
• Flexibility adapter system fits most professional wireless systems

Specifications:

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB, at 12 cm (4.7 in): 40 Hz - 16 kHz
• Sensitivity, nominal, ±2 dB at 1 kHz:

  • 5 mV/Pa; -46 dB re. 1 V/Pa
  • 2 mV/Pa; -54 dB re. 1 V/Pa with Adapter for wireless
• Equivalent noise level, A-weighted: Typ. 19 dB(A) re. 20 µPa (max. 21 dB(A))
• Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
• Dynamic range: Typ. 120 dB
• Max. SPL, THD 10%: 160 dB SPL peak
• Rated output impedance: 100 Ω
• Minimum load impedance: 1
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Impedance balancing with Active Drive
• Common mode rejection ratio (CMRR): > 50 dB at 1 kHz
• Power supply (for full performance): P48 (Phantom Power)
• Current consumption: Max 2.0 mA
• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Weight: 309 g (10.9 oz)
• Microphone diameter: 52 mm (2.05 in)
• Capsule diameter: 19 mm (0.75 in)
• Microphone length: 205 mm (8.1 in)
• Maximum output voltage, RMS: 8 V
• Polarity: +V at pin 2 for positive sound pressure
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
• Colours: Matte black
