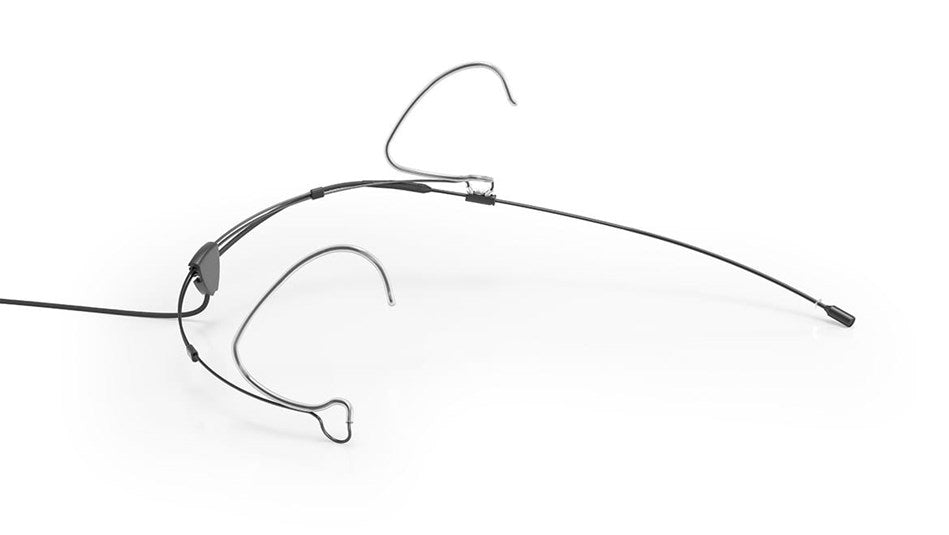

DPA 6066 Omnidirectional Headset Subminiature Mic

DPA Microphones 6066 Omnidirectional Headset Subminiature Mic

The DPA 6066 CORE Subminiature Headset delivers professional-grade audio in an incredibly compact 3 mm capsule. Despite its diminutive size, this omnidirectional mic combines the clarity, consistency, and durability of DPA's award-winning larger models, without compromising sound quality for aesthetics. Engineered with CORE by DPA technology, the 6066 maintains exceptional audio performance while remaining virtually invisible on stage or in studio settings.

Now featuring MicroLock, a secure locking connector that provides dependable, flexible connectivity with reassuring reliability. Perfect for performers, presenters, and professionals who demand premium sound in a discreet package.

The DPA Microphones 6066 Omnidirectional Headset Subminiature Mic is available in black, brown or beige.

Features:

• Amazing 3 mm CORE by DPA capsules technology
• Renowned DPA sound in a 60% smaller capsule
• One-size-fits-all, headset fits securely and comfortably
• 2-way adjustable, non-reflective boom with locking system
• Unique, comfortable 3-point gripping system above, below and behind the ear
• New 90° cable management constructed to guide the cable and minimise cable breaks

Specifications:

• Directional Pattern: Omnidirectional
• Principle of operations: Pressure
• Cartridge type: Pre-polarised Condenser
• Frequency Response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
• Sensitivity, nominal, ±2.4 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 μPa (max. 28 dB(A))


• Distortion, THD < 0.5%122 dB SPL RMS, 125 dB SPL peak


• Distortion, THD < 1%125 dB SPL RMS, 128 dB SPL peak
• Dynamic rangeTyp. 102 dB
• Max. SPL, THD 10%144 dB SPL peak
• Rated output impedanceFrom MicroLock: 30 - 40 Ω. From DAD9001-BC: 100 Ω
• Cable drive capabilityUp to 300 m (984 ft) with DAD9001-BC XLR adapter
• Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter
• Connector: MicroLock, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
• Weight: 11 g (0.40 oz) incl. Cable and MicroLock connector
• Microphone head size (h x w x d): 3.4 / 8.9 mm (0.13 / 0.35 in)
• Capsule diameter: 3 mm (0.12 in)
• Cable length: 1.3 m (4.3 ft)
• Polarity: Positively increasing sound pressure produces positive going voltage on MicroLockpin
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
• Colours: Black, Beige, Brown
