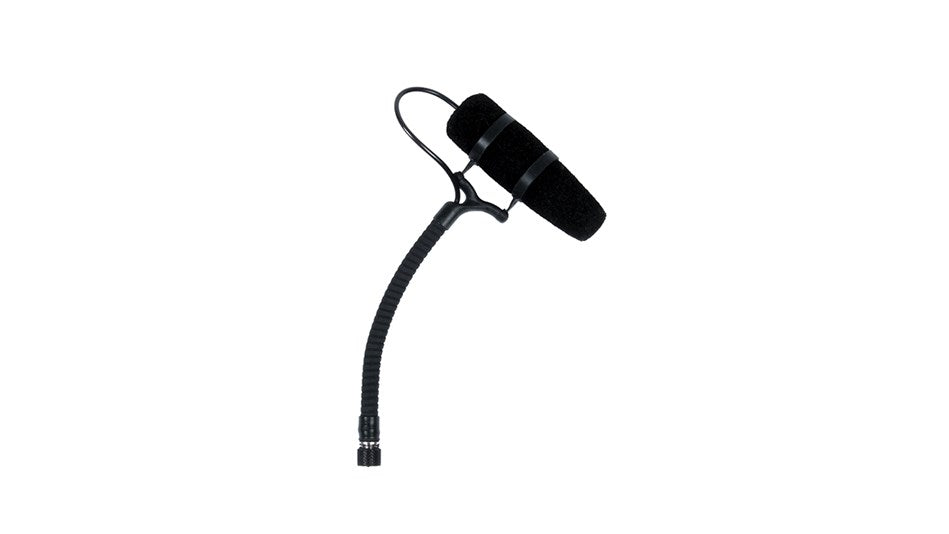

DPA 4097 Micro Shotgun Microphone

DPA 4097 Micro Shotgun Microphone

The DPA 4097 CORE+ Micro Shotgun Microphone delivers precision audio capture with its supercardioid polar plot, isolating your subject while rejecting unwanted ambient noise. Ultra-low self-noise and high sensitivity ensure crystal-clear recordings even in challenging environments. Built to handle extreme sound pressure levels, it captures undistorted natural sound whether subjects speak softly or yell, ideal for automotive filming, interviews, and tight spaces.

The integrated MicroLock system provides enhanced stability and mounting flexibility, making it a reliable choice for professional broadcast, film, and location recording.

Features:

• Wireless podium mic capability
• Highly directional - very isolated
• High rejection of radio frequency interference
• CORE+ technology
• Sleek, modernized design
• Sturdy shock mount and cable-born noise isolation
• MicroLock connector

Specifications:

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB, at 20 cm (7.9 in): 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 16 mV/Pa; -36 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max 26 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
• Distortion, THD < 0.5%: 130 dB SPL RMS, 133 dB SPL peak
• Distortion, THD < 1%: 131 dB SPL RMS, 134 dB SPL peak
• Dynamic range: Typ. 111 dB
• Max. SPL, THD 10%: 136 dB SPL peak
• Rated output impedance: From MicroLock: 30 - 40 Ω. From DAD9099 XLR Adapter: 100 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD9099 XLR Adapter
• Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9099 XLR Adapter
• Power supply (for full performance):

  • For wireless systems Min. 5 V - max. 10 V through DPA adapter
  • With DAD9099: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9099 XLR Adapter
• Connector: MicroLock. XLR via supplied DAD9099 adapter
• Weight: 10 g (.35 oz)
• Maximum Total Height: 253 cm (100 in)
• Microphone length: 10.4 cm (4 in)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
• Colours: Black
