DPA 4061 Omni Miniature Lavalier Microphone

DPA 4061 Omni Miniature Lavalier Microphone

The DPA 4061 Omni is a groundbreaking miniature microphone that brings hearing aid and measurement microphone technology to professional audio. Engineered for remote or damped sound sources, it delivers exceptional signal-to-noise balance with a maximum SPL of 134 dB before clipping. Now featuring CORE+ technology, which neutralizes distortion across the entire dynamic range for pristine audio capture.

The secure MicroLock connector provides dependable, flexible mounting with limitless positioning options and reassuring reliability. Ideal for applications demanding compact size without compromising performance.

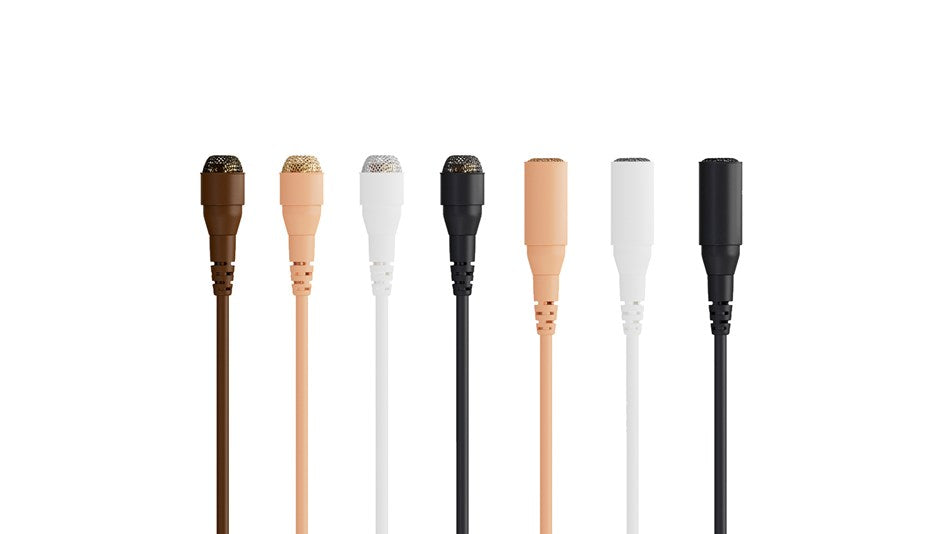

The DPA 4061 Omni Miniature Lavalier Microphone is available in black, brown, beige, or white, and is available with MicroLock, 3-pin LEMO, TA4F Mini-XLR, or Mini-Jack connection.

Features:

• Exceptional audio quality
• Uniform, consistent sound between DPA mics
• Extremely rugged and reliable
• Diminutive size made for flexible and easy concealment
• Large selection of clips, windscreens, grids and other accessories
• Modular adapter system fits most professional wireless systems

Specifications:

• Directional pattern: Omnidirectional
• Principle of operation: Pressure
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
• Distortion, THD < 0.5%: 133 dB SPL RMS, 136 dB SPL peak
• Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
• Dynamic range: Typ. 111 dB
• Max. SPL, THD 10%: 144 dB SPL peak
• Rated output impedance: 30 - 40 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD9001-BC XLR Adapter
• Power supply (for full performance):

  • For wireless systems Min. 5 V - max. 10 V through DPA adapter
  • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter
• Connector: MicroLock, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
• Weight: 7.5 g (0.26 oz) incl. Cable and MicroLock connector
• Microphone diameter: 5.4 mm (0.21 in)
• Microphone length: 12.7 mm (0.5 in)
• Cable length: 1.8 m (5.9 ft)
• Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
• Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
