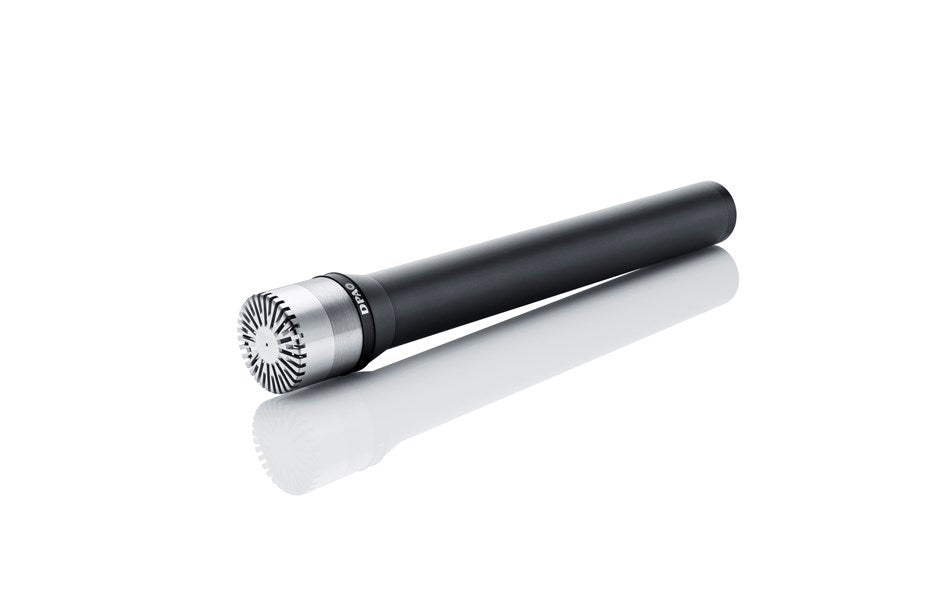

DPA 4041 Omnidirectional Large Diaphragm Microphone, P48

DPA 4041 Omnidirectional Large Diaphragm Microphone, P48

The DPA 4041 is a professional-grade omnidirectional large diaphragm microphone capsule engineered for studio and live sound applications. Built entirely from stainless steel, both the diaphragm and housing deliver exceptional durability and thermal stability, ensuring consistent performance across varying ambient temperatures.

This capsule integrates seamlessly with Solid State Phantom Power systems, providing reliable operation in demanding recording environments.

The precision-engineered back plate is mounted on a quartz insulator, guaranteeing maximum electrical stability and minimal noise interference for pristine audio capture. Ideal for vocals, acoustic instruments, and overhead miking, the 4041 combines robust construction with professional audio fidelity.

Features:

• Handles high sound pressure levels with no distortion
• Natural and transparent sound

Specifications:

• Directional pattern: Omnidirectional
• Principle of operation: Pressure
• Cartridge type: Condenser w. stainless steel diaphragm
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB: 20 Hz - 20 kHz with 4 - 6 dB soft boost at 8 kHz
• Sensitivity, nominal, ±2 dB at 250 Hz: 70 mV/Pa; -23 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Max. 8 dB(A) re. 20 µPa
• Equivalent noise level, ITU-R BS.468-4: Max. 20 dB
• Distortion, THD < 1%: 123 dB SPL RMS, 126 dB SPL peak
• Dynamic range: Typ. 118 dB
• Max. SPL, THD 10%: 134 dB SPL peak
• Rated output impedance: < 200 Ω
• Cable drive capability: 100 m (328 ft)
• Power supply (for full performance): Via external Power supply
• Current consumption: 2.20 mA
• Connector: 3-pin XLR-M
• Weight: 190 g (6.7 oz)
• Capsule diameter: 24 mm (1 in)
• Microphone length: 170 mm (6.7 in)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
