DPA 2061 Omnidirectional Miniature Microphone

DPA 2061 Omnidirectional Miniature Microphone

The DPA 2061 delivers professional-grade voice capture across broadcast studios, ENG, theatres, houses of worship, and event venues.

Its omnidirectional design ensures consistent speech intelligibility in any environment. Built for durability with sweat-repellent and water-resistant construction, this miniature microphone handles demanding conditions without compromise. Whether amplifying live performances or recording content, the 2061 provides the clarity and reliability that makes it an essential tool for serious audio professionals.

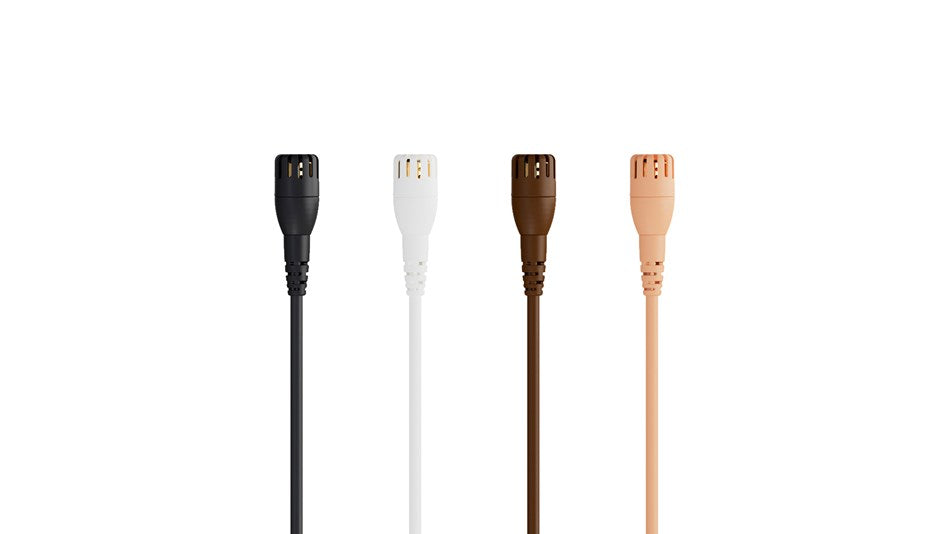

The DPA 2061 Omnidirectional Miniature Microphone is available in black, brown, beige or white, and is available with either 3-pin LEMO, TA4F Mini-XLR, or Mini-Jack connectivity.

Features:

• Best-in-class speech intelligibility
• Robust mechanical construction
• Advanced sweat-repelling capabilities
• Water-resistant IP57 certification
• Available in multiple colours and fixed connectors
• Fast, secure mounting with included clip (black and white variants)

Specifications:

• Directional pattern: Omnidirectional
• Principle of operation: Pressure
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±3 dB: 50 Hz - 16 kHz , 3 dB soft boost at 8 - 16 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
• Distortion, THD < 0.5%: 120 dB SPL RMS, 123 dB SPL peak
• Distortion, THD < 1%: 125 dB SPL RMS, 128 dB SPL peak
• Dynamic range: Typ. 102 dB
• Max. SPL, THD 10%: 137 dB SPL peak
• Rated output impedance: 112 Ω
• Minimum load impedance: 5
• Power supply (for full performance): For wireless systems min. 5 V - max 10 V
• Current consumption: Typ. 0.6 mA
• Connector: TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
• Weight: 10 g (.35 oz)
• Microphone diameter: 5,5 mm (0.22 in)
• Microphone length: 9,7 mm (0.38 in)
• Cable length: 1,5 m (4.9 ft)
• Cable diameter: 1.6 mm (0.06 in)
• Maximum output voltage, RMS: 1,6V
• Polarity: '+V at output for positive sound pressure
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90 %
• Colours: Black, Brown, Beige, White
