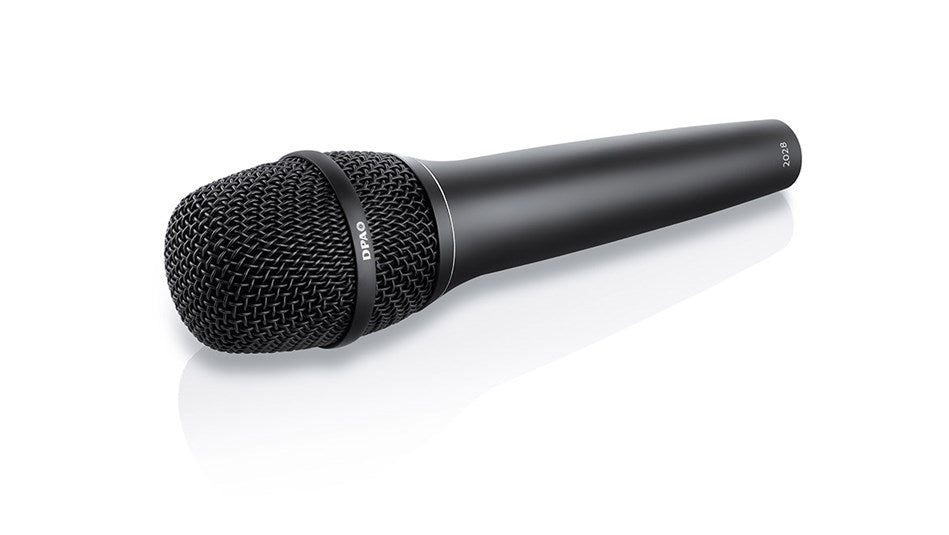

DPA 2028 Vocal Handheld Microphone

DPA 2028 Vocal Handheld Microphone

The DPA 2028 Vocal Handheld Microphone delivers transparent, professional-grade vocal clarity for live stage performances.

This flexible handheld mic is engineered to capture vocals with exceptional presence and detail, making it ideal for live venues, houses of worship, broadcast applications, and beyond.

The wired XLR termination ensures reliable connectivity and consistent audio transmission. Simply connect and experience vocals that shine with clarity and warmth. Built for performers who demand quality sound in demanding environments.

The DPA 2028 Vocal Handheld Microphone is available with a wired DPA handle, an SL1 adapter or an SE2 adapter.

Features:

• Renowned DPA sound
• Natural vocals - from folk to metal
• Reduces feedback issues
• Rugged enough for the live stage
• Uniform supercardioid directionality
• Extreme SPL handling

Specifications:

• Directional pattern: Supercardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB, at 12 cm (4.7 in): 100 Hz - 16 kHz. Permanent 3rd order low-cut filter at 80 Hz
• Sensitivity, nominal, ±3 dB at 1 kHz: 5 mV/Pa; -46 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 22 dB(A) re. 20 µPa (max. 23 dB(A))
• Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
• Dynamic range: Typ. 117 dB
• Max. SPL, THD 10%: 160 dB SPL peak
• Rated output impedance: 150 Ω
• Minimum load impedance: 1
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Impedance balancing with Active Drive
• Common mode rejection ratio (CMRR): > 50 dB at 1 kHz
• Power supply (for full performance): P48 (Phantom Power)
• Current consumption: Max 2.5 mA
• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Weight: 286 g (10.1 oz)
• Microphone diameter: 48 mm (1.9 in)
• Capsule diameter: 19 mm (0.75 in)
• Microphone length: 188 mm (7.4 in)
• Maximum output voltage, RMS: 9 Vrms; 19 dBV; 28 dBu
• Polarity: +V at pin 2 for positive sound pressure
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90 %
• Colours: Matte black
