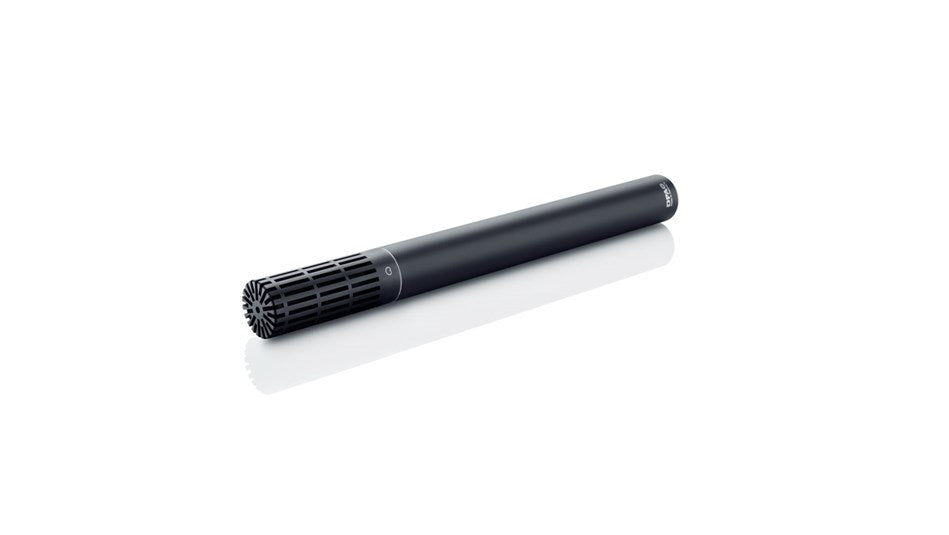

DPA 2011 Twin Diaphragm Cardioid Microphone

DPA 2011 Twin Diaphragm Cardioid Microphone

The DPA 2011 Twin Diaphragm Cardioid Microphone delivers precision-engineered directional capture with a distinctly balanced sound signature. Engineered with dual diaphragm technology, this microphone bridges the sonic gap between our acclaimed pencil condensers and professional lavalier systems.

Its cardioid pattern ensures focused pickup while rejecting off-axis noise, making it ideal for instrument miking, vocal recording, and live sound applications where clarity and controlled directionality matter.

The twin diaphragm design provides exceptional transient response and frequency accuracy across the full spectrum.

The DPA 2011 Twin-Diaphragm Cardioid Microphone is available in a compact version or with an XLR connector mounted on either the rear or side of the microphone.

Features:

• Blends clarity, richness and dynamics
• Twin Diaphragm Capsule Technology
• Advanced Interface Tube Technolody
• Superb stage separation and level control
• Modular flexibility

Specifications:

• Directional pattern: Cardioid
• Principle of operation: Pressure gradient, with interference tube
• Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range, ±2 dB, at 30 cm (11.8 in): 50 Hz - 17 kHz with 3 dB soft boost at 12 kHz
• Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 33 dB (max. 36 dB)
• Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak
• Dynamic range: Typ. 117 dB
• Max. SPL, THD 10%: 153 dB SPL peak
• Switchable attenuator, filters etc.: 0 dB / -20 dB
• Rated output impedance: 200 Ω
• Minimum load impedance: 2
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Impedance balancing with Active Drive
• Common mode rejection ratio (CMRR): > 60 dB
• Power supply (for full performance): P48 (Phantom Power)
• Current consumption: 2.8 mA
• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
• Weight: 164 g (5.8 oz)
• Microphone diameter: 19 mm (0.75 in)
• Microphone length: 198 mm (7.8 in)
• Maximum output voltage, RMS: > 5 V
• Polarity: +V at pin 2 for positive sound pressure
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
• Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
• Colours: Matte black
