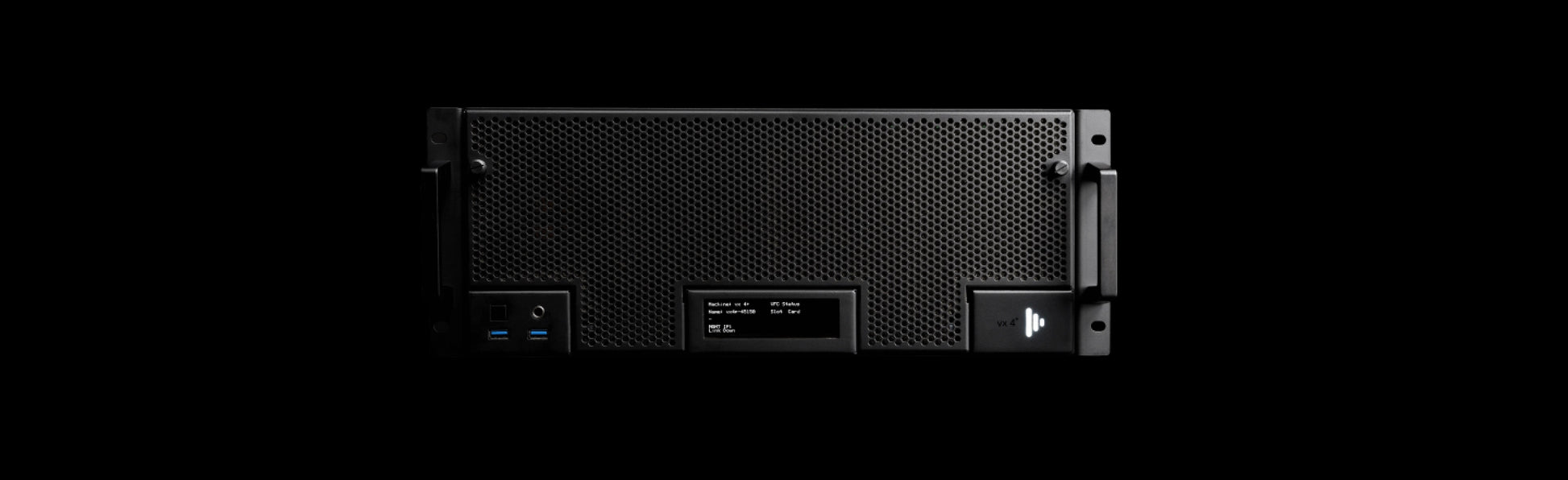

Disguise VX 4+ Media Server

Disguise VX 4+ Media Server

The industry-standard media server powering the world's biggest and most demanding productions. With major video processing improvements and increased storage performance, the VX 4+ handles more than twice the video layers of its predecessor while maintaining minimal latency. Designed as part of the Disguise modular ecosystem, the VX 4+ includes two 100GbE network ports and 12G video capture as standard, enabling enhanced 4K compositing performance for real-time extended reality production. Future-proof your video playback requirements with additional bandwidth and never drop a single frame.

Features:

• Unrivalled playback performance
• 4K xR compositing
• Meet growing content demands

Specifications:

System Connectivity I/O:

• Video input: 4x 12G inputs or 16x 3G inputs (HD-BNC connectors)
• Video output: 4x 4K outputs (with integrated EDID management)
• Audio I/O:
  • Balanced XLR (circular 3-pin connector) - 2x in, 2x out
  • Analogue (1/4 headphone jack) - 1x in
• General network:
  • 1 x 1GbE/sec
  • 2 x 10 GbE/sec
• High-speed network: 2x 100GbE/sec port (QSFP28)

Hardware specs:

• CPU: Intel Xeon 3.1Ghz
• GPU: AMD RADEON Pro VII
• Voltage:
  • 100-240V, 50-60Hz
  • for countries with variable power supply we recommend a UPS to provide consistent voltage
• Power consumption peak: 785W
• Mounting system: 4U 19" rack mount
• Storage: 4x 1.92TB Removable NVMe SSD (default RAID 10) (upgrades available)
• Memory: 128GB RAM (8x 16GB)
• Operating system: Windows 10 IoT Enterprise GAC
