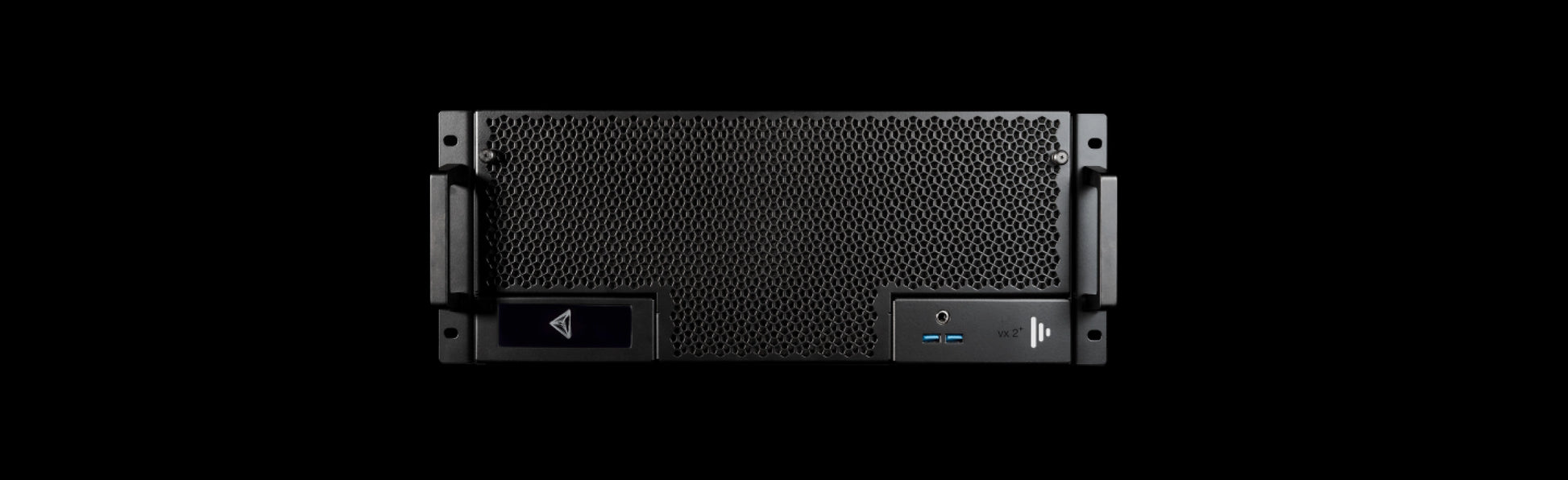

Disguise VX 2+ Media Server

Disguise VX 2+ Media Server

The Disguise VX 2+ Media Server delivers next-generation performance for professional production environments. Engineered for medium-sized studios, this powerful system features dual 4K video outputs that push higher-resolution real-time content with enhanced bit depth and superior colour fidelity. Optimised for both pre-rendered and real-time video playback, the VX 2+ meets the highest video performance standards while future-proofing your productions.

It unlocks exceptional 4K xR graphics compositing capabilities, delivering 40% overscan when integrated with multiple real-time render nodes and 4K camera systems. Built to harness the power and speed required for the highest production standards, the VX 2+ seamlessly handles demanding workflows and complex visual requirements with confidence and reliability.

Features:

• Future-proof productions
• More performance per output
• Superior xR compositing

Specifications:

System Connectivity I/O:

• Video input: 2x 12G inputs or 8x 3G inputs (HD-BNC connectors)
• Video output: 2x 4K outputs (with integrated EDID management
• Audio I/O:
  • Balanced XLR (circular 3-pin connector) - 2x in, 2x out
  • Analogue (!/4 headphone jack)
• General network:
  • 1x 1GbE/sec
  • 2x 10GbE/sec
• High-speed network: 2x 100 GbE/sec port (QSFP28)

Hardware specs:

• CPU: Intel Xeon 3.1Ghz
• GPU: NVIDIA RTX A4500
• Voltage:
  • 100-240V, 50-60Hz
  • for countries with variable power supply we recommend a UPS to provide a consistent voltage
• Power consumption peak: 655W
• Mounting system: 4U 19" rack mount
• Storage: 1x 3.84TB Removable NVMe SSD (upgrades available)
• Memory: 96GB RAM (6x 16 GB)
• Operating system: Windows 11 IoT Enterprise GAC
