Description

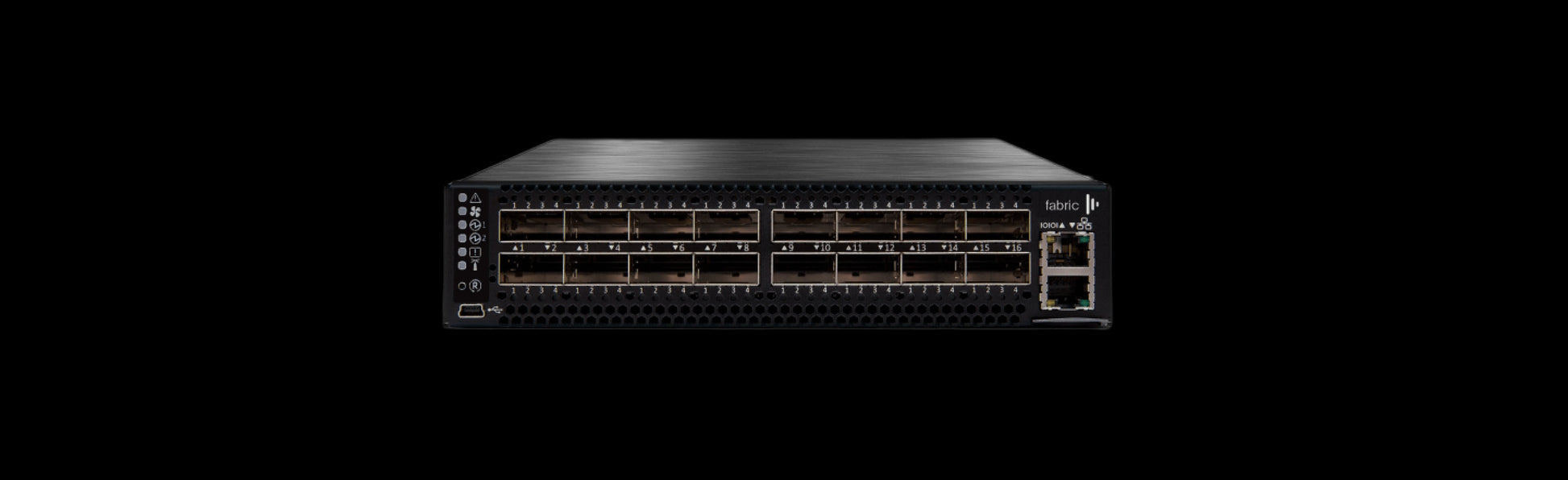

Disguise Fabric Network Switch
Supercharge your connectivity with Fabric, a preconfigured network switch engineered to connect your VX, GX, and RX servers at the highest bandwidth. Each frame is delivered accurately, ensuring reliable performance across your entire system. Set up in minutes without requiring network engineering expertise.
Fabric is preconfigured to work seamlessly with RenderStream and all Disguise media servers, streamlining your workflow from installation to operation. With up to 64 network ports optimized for Disguise systems, Fabric enables you to stream 4K content over 100GbE networking. Built for powerful and robust performance, it's available in five bundle types to match your specific scale and networking requirements.
Features:
- Ready to go
- High Bandwidth Networking
- Fully bundled
Specifications:
System connectivity I/O:
- Connector cage: 16x QSFP28
- Supported modules and cables:
- QSFP28 and SFP28 optics
- DAC and OM4 fiber cables
Hardware Specs:
- Voltage:
- 100-240V, 50-60Hz
- for countries with variable power supply we recommend a UPS to provide a consistent voltage
- Power consumption peak:294W
- Mounting system: 1U 19" rack mount
- Operating system: Mellanox Onyx
- Throughput: 3.2Tb/s
- Speed:
- Default:
- Configurable to:
