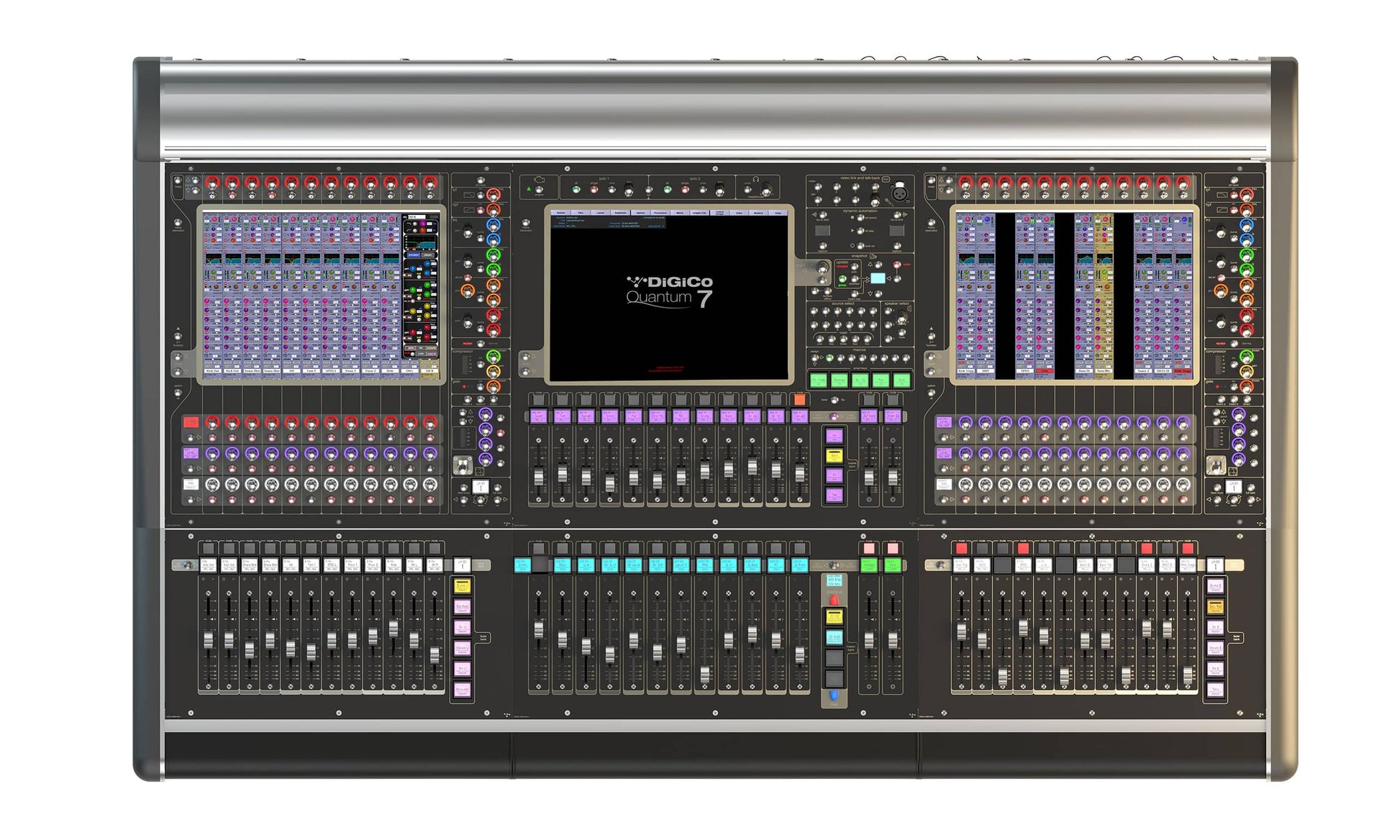

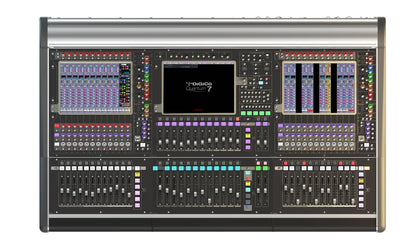

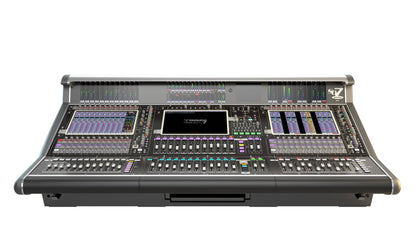

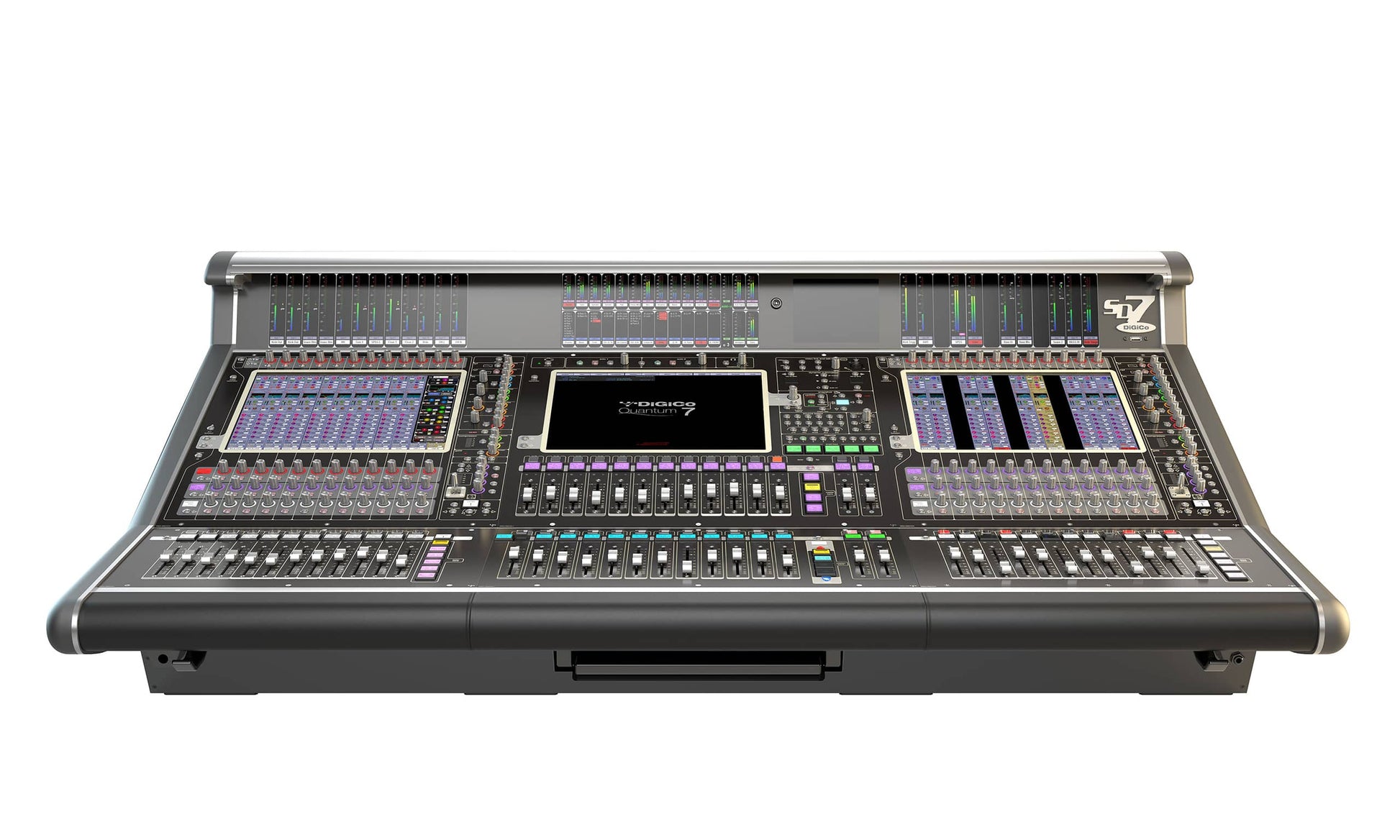

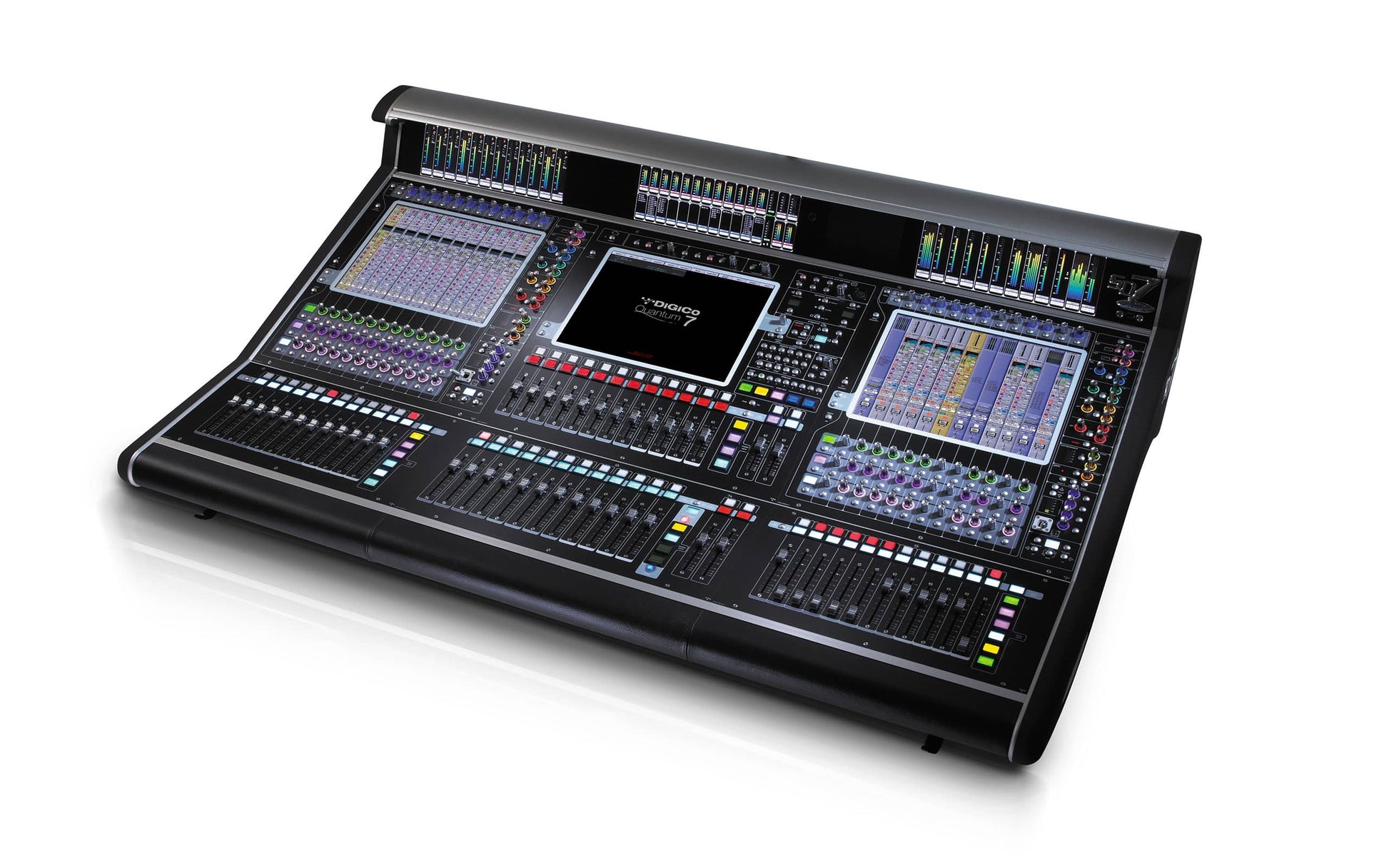

The Quantum 7 is built on seventh generation FPGA technology with three large-scale FPGAs. It transports up to 2,000 channels across 688 processing paths at 96kHz.
The console features new GTX ports running at 6.6GHz and streamlined two-wire connections.
Standard channel processing across both inputs and outputs includes Channel Delay, DiGiTuBe, Single and Multi-Channel Presets, Dual insert points, Hi- and Lo-pass filters at 24dB/octave, four-band parametric EQ with band curve selection and Dynamic EQ on each band, DiGiCo’s DYN 1 and DYN 2.
The Quantum 7 incorporates 48 gangable 48 band graphic EQs, 48 stereo effects, and 36 control groups. Also, 128 busses are assignable as mono/stereo groups or auxiliaries, while a 48×48 output matrix, dual solo busses with True Solo, and a LR/LCR/5.1 Master buss.
The console supports various configurations including MADI, One Multi-Mode Optic Loop HMA and Multi-Mode Optic Loop ST.
The DiGiCo Quantum 7 Digital Mixing Console is also available in the Quantum 7T or 7B versions.
Features:
Consoles
Quantum 7
Quantum7T
Quantum 7B
Input Channels
256
256
256
Aux / Sub-Group Busses
128
128
128
LR/LCR/5.1 Master Buss
X
X
X
Full Processing Matrix
48 x 48
48 x 48
48 x 48
Dynamic Equalisers
694
694
694
Sample Rate
48/96 kHz
48/96 kHz
48/96 kHz
Specifications:
Channels: Up to 256 input channels
Buses: Up to 128 busses + LR/LCR master bus
Matrix: 32 x 32 matrix

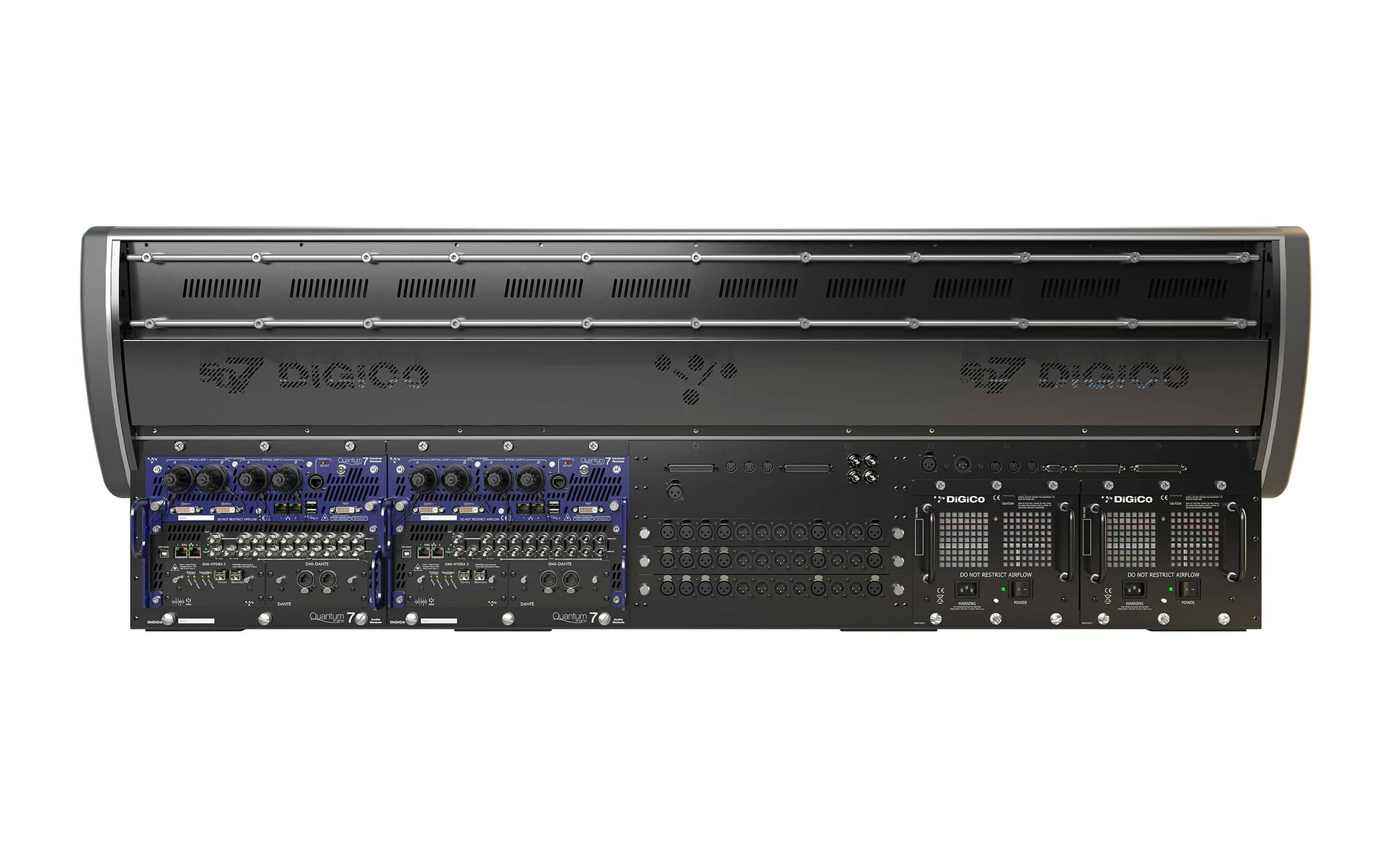

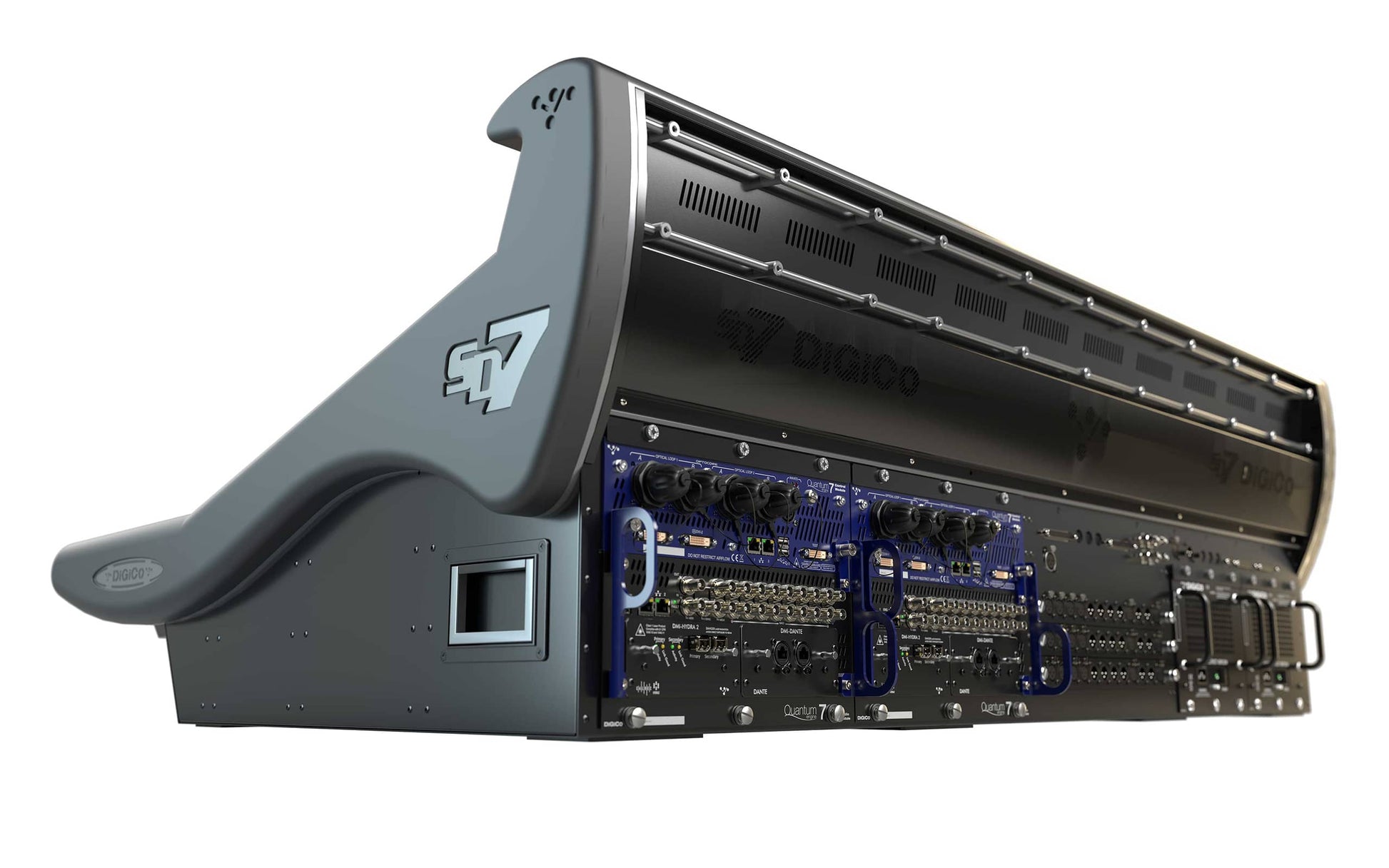

Local I/O:
8 mic/line inputs
8 line outputs
4 AES/EBU I/O
MADI ports: Dual MADI ports supporting up to 64 channels at 48kHz or 32 channels at 96kHz each
DMI slots: 2 slots for DiGiCo Multichannel Interface cards
FPGA technology: Powered by advanced Quantum FPGA processing
