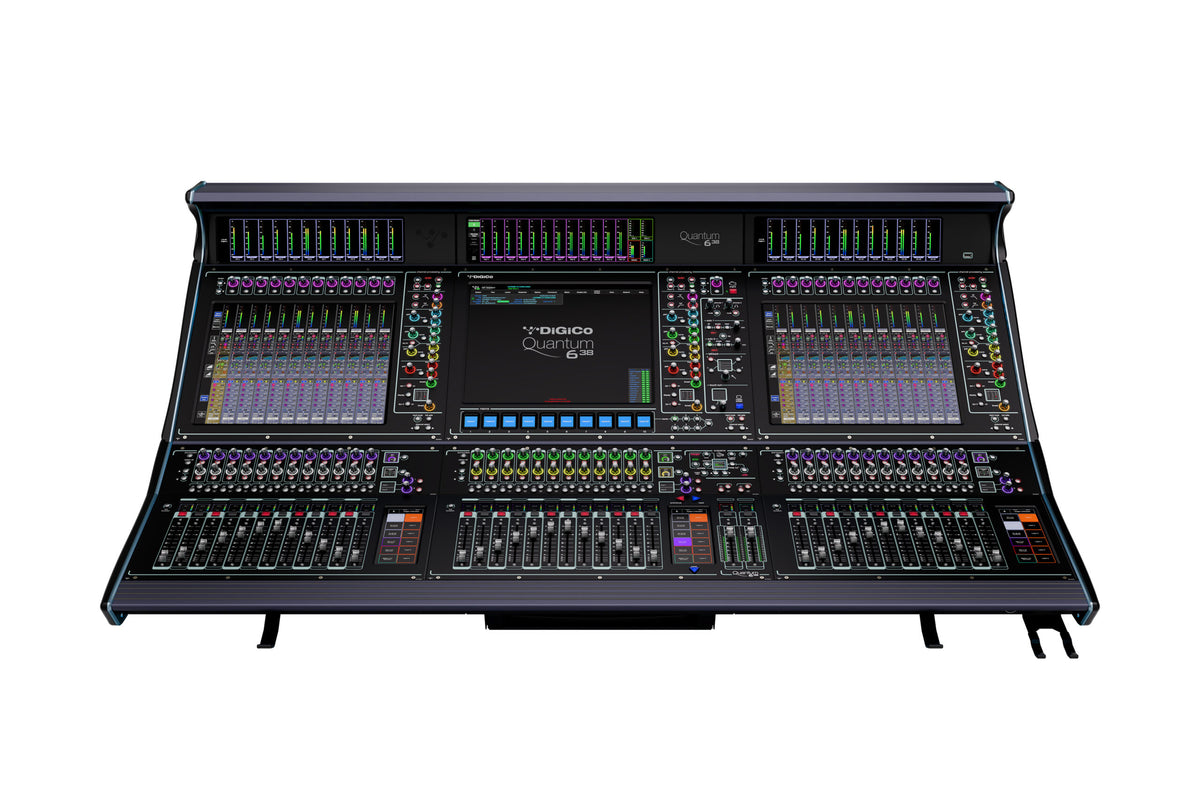

DiGiCo Quantum 638 Digital Mixing Console

DiGiCo Quantum 638 Digital Mixing Console

The DiGiCo Quantum 638 is a professional-grade digital mixing console engineered for large-scale live sound and broadcast applications.

This powerhouse features up to 256 input channels in single or dual engine configurations, supported by five high-performance FPGAs that deliver exceptional processing power.

The console includes 128 auxiliary and sub-group buses, 38 physical faders, and three 17-inch high-resolution daylight-bright touchscreens for intuitive control in any lighting environment. Its 48 x 48 processing matrix with 36 control groups provides unparalleled flexibility for complex mixing scenarios.

The Quantum 638 offers 48 FX rack slots, 32 graphic EQs, and FPGA-powered processing for pristine audio quality. Advanced features include the Mustard Processing and Spice Rack tools, nodal processing architecture, and true solo buses. Two dedicated solo buses ensure seamless monitoring.

This console is the ultimate choice for demanding venues, festivals, and broadcast facilities requiring professional mixing capabilities without compromise.

Features:

• 256 Input Channels
• 128 Aux / Sub-Group Busses
• LR/LCR/LCRS/5.1 Master Buss
• 48 x 48 Full Processing Matrix

• 694 Dynamic Equalizers
• 48/96 kHz Sample Rate

Specifications:

• Faders: 38 x 100mm touch-sensitive
• Screens: 3 x 17” LCD high-brightness, high-resolution touch screens + 3 x 6.8″ LCD high-brightness, high-resolution touch screens
• TFT Screens: 38 x 1.3″ touch sensitive full colour LCD display + 15 x 1.3″ full colour LCD displays
• Meterbridge: 3 x Custom Mounted 14″ LCD high – brightness, high – resolution screens
• Redundancy: Internal removable engine x 2
• Internal hot-swappable PSU x 2
• Input Channels: 256
• Busses Up: 128 Aux / Group busses with full processing Mono / Stereo / LCR / 5.1
• Matrix: 48 Input / 48 Outputs with full processing
• Control Groups: 36, selectable for VCA-style, Moving fader, Mute Group
• Graphic Eq: 32 x 32-band, Gain +/- 12dB
• Internal FX: 48 stereo effects comprising floating point reverbs plus delay/chorus/pitch/enhancer
• Spice Rack: 16 mono / 8 stereo Rack Slots
• Mustard Proc: 80 Processing Strips
• Nodal Proc: 256 Nodal Processors

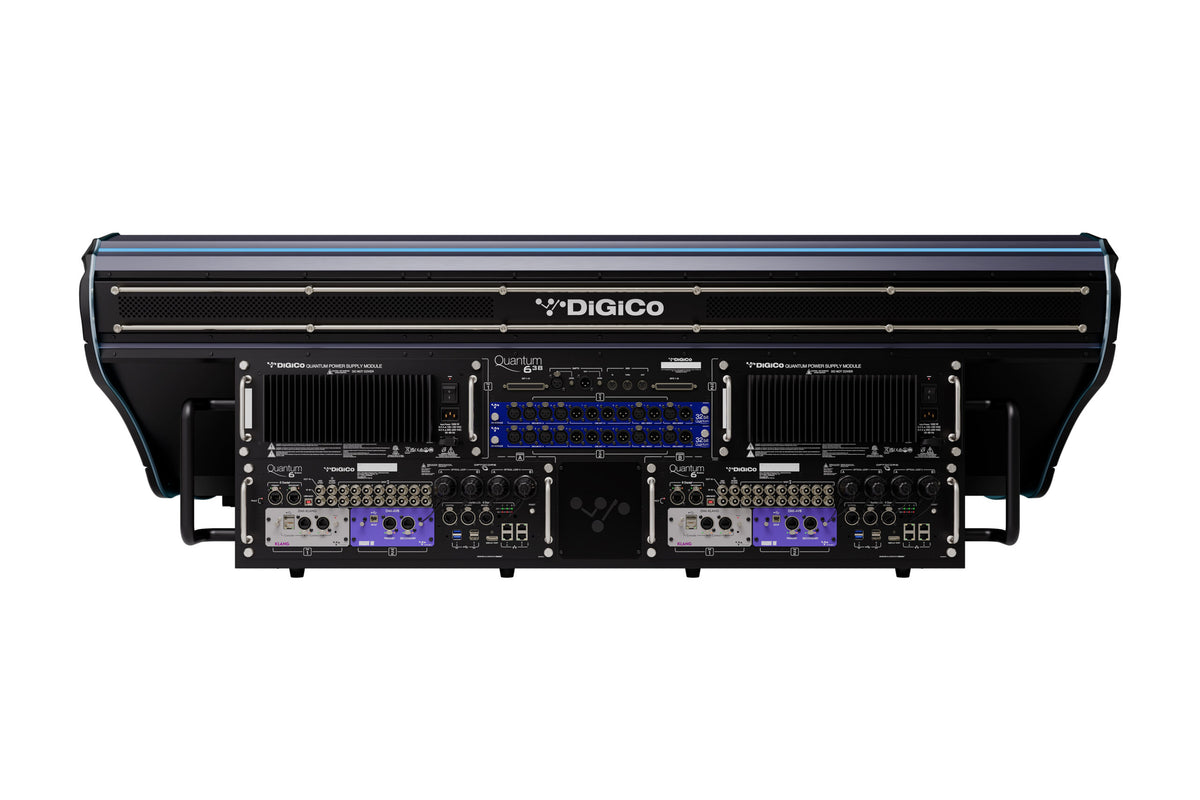

• Local I/O 8 x mic/line I/O, 8 x AES I/O
• 8 x MADI interfaces @ 48kHz,  4 redundant interfaces @ 96kHz, BNC connectivity
• Standard Optocore (Dual Loop – Optional)
• Sampling rates 48kHz / 96kHz
• GPIO: 1 x DSub37
• DMI: 2 x DiGiCo Multichannel Interface
• fourier interface card and  Waves Card Option.
• Ext Sync Wordclock, AES, MADI, Optocore
