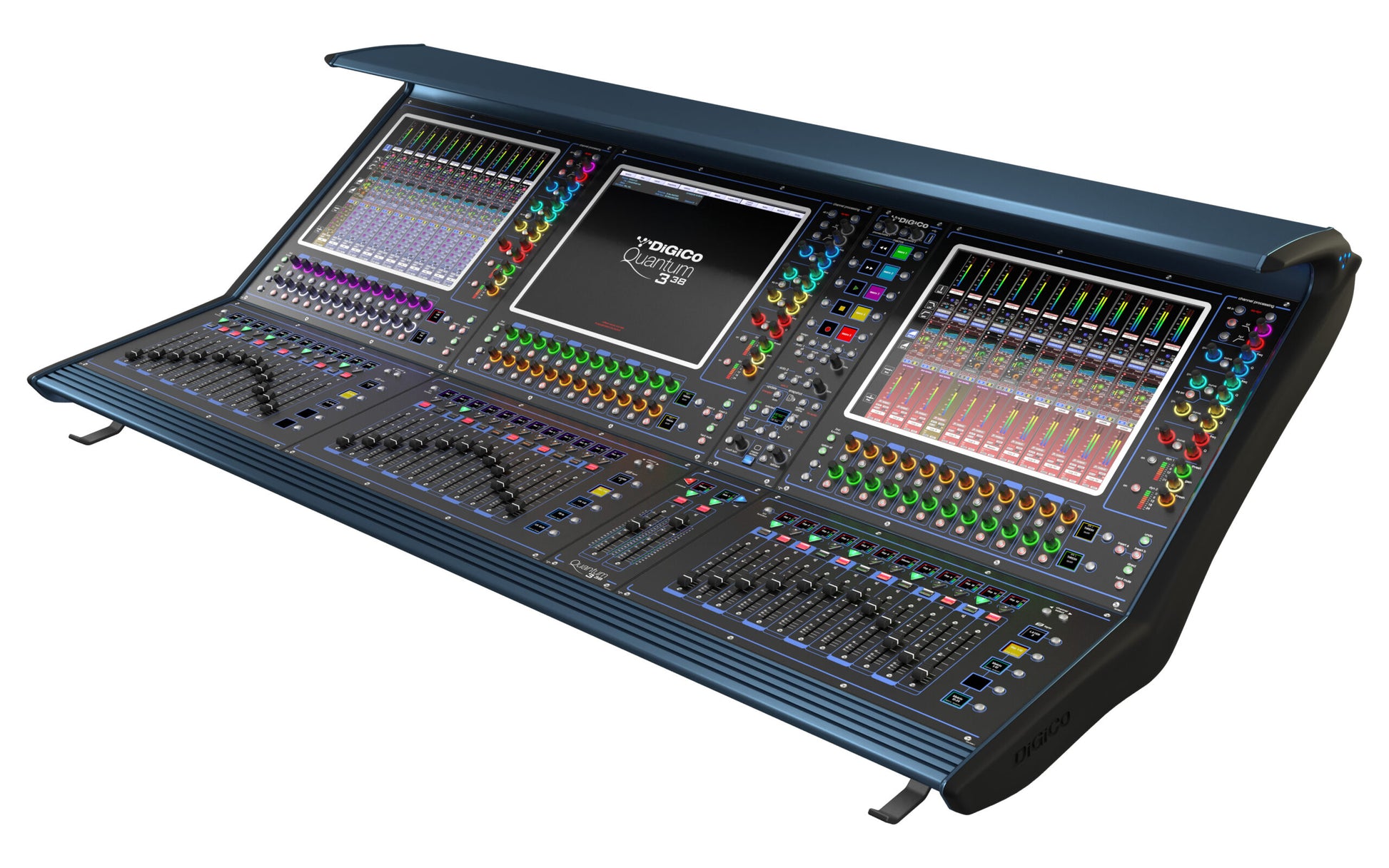

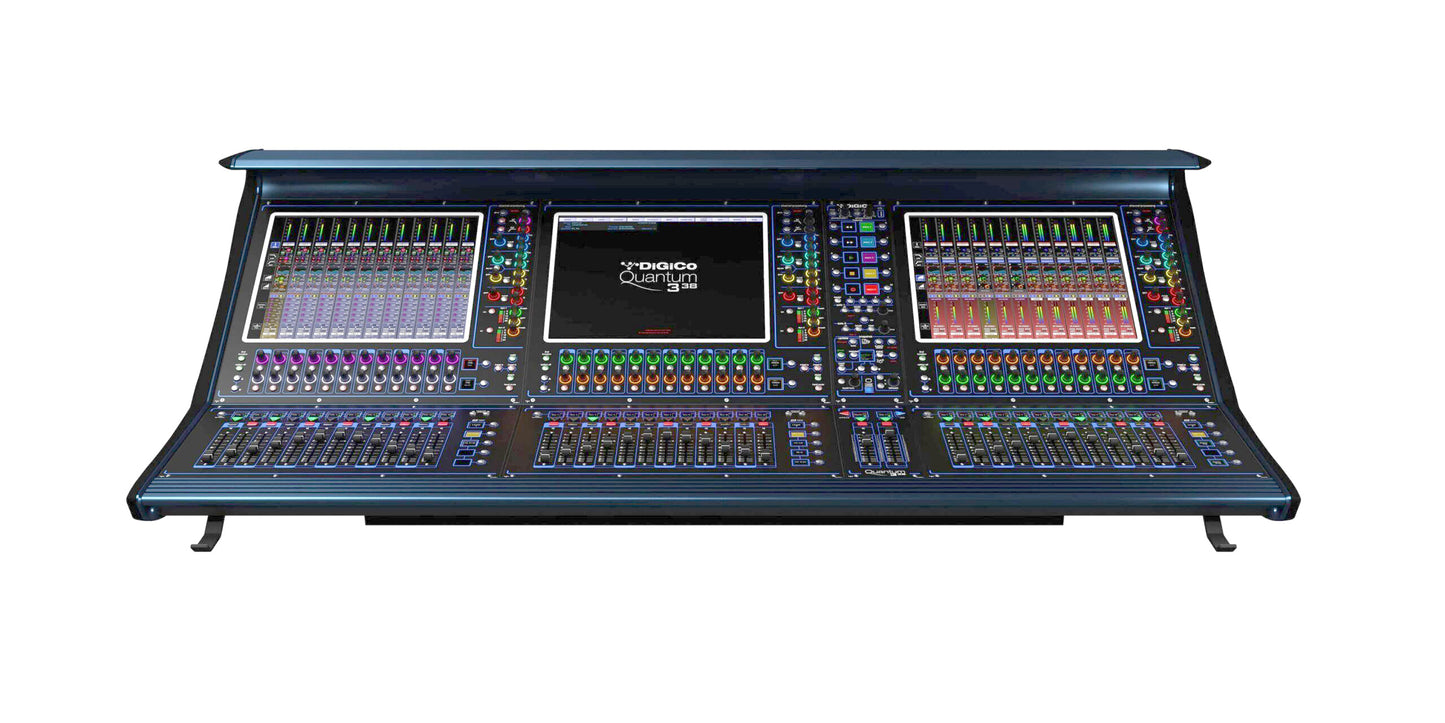

DiGiCo Quantum 338 Digital Mixing Console

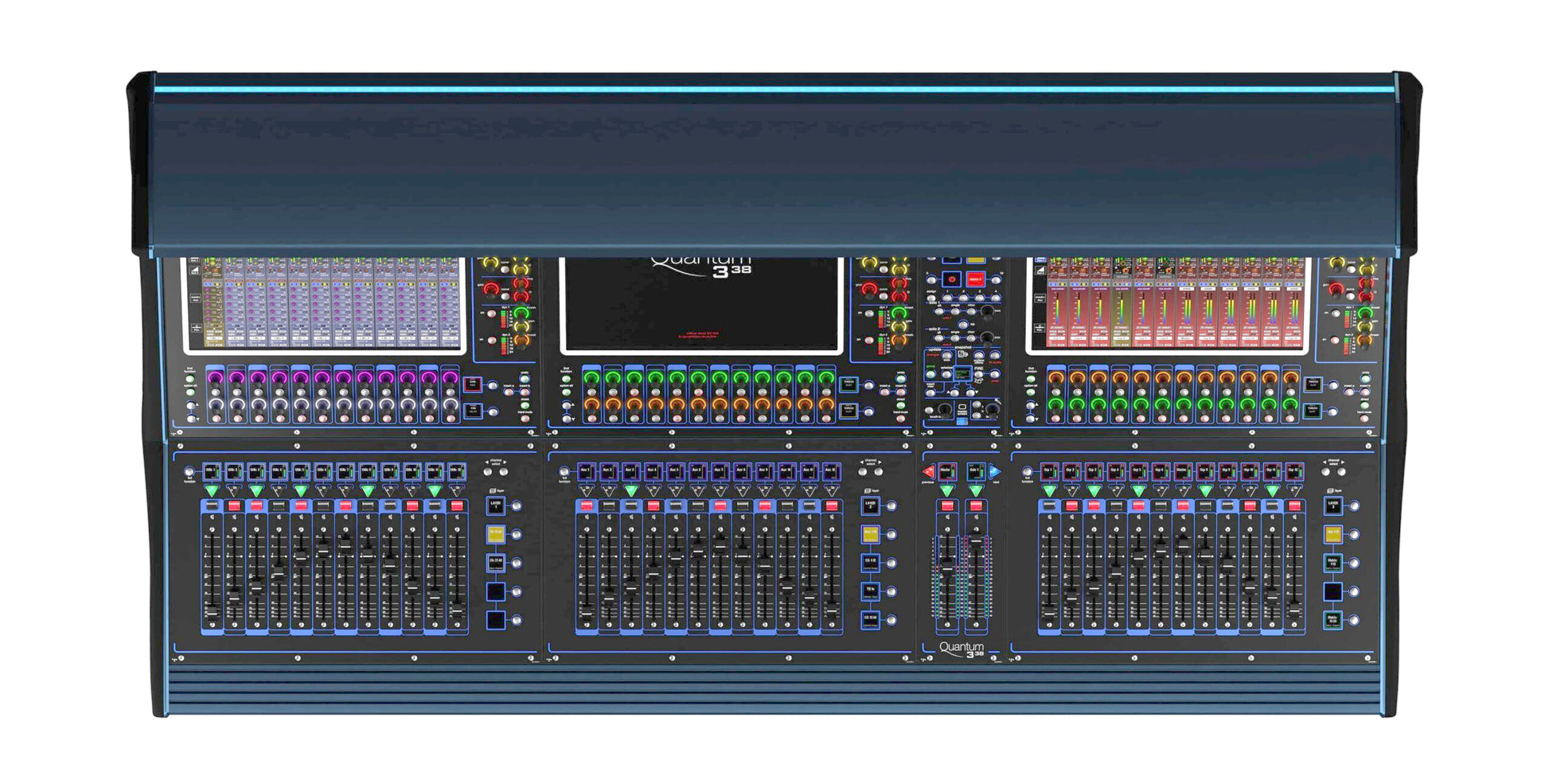

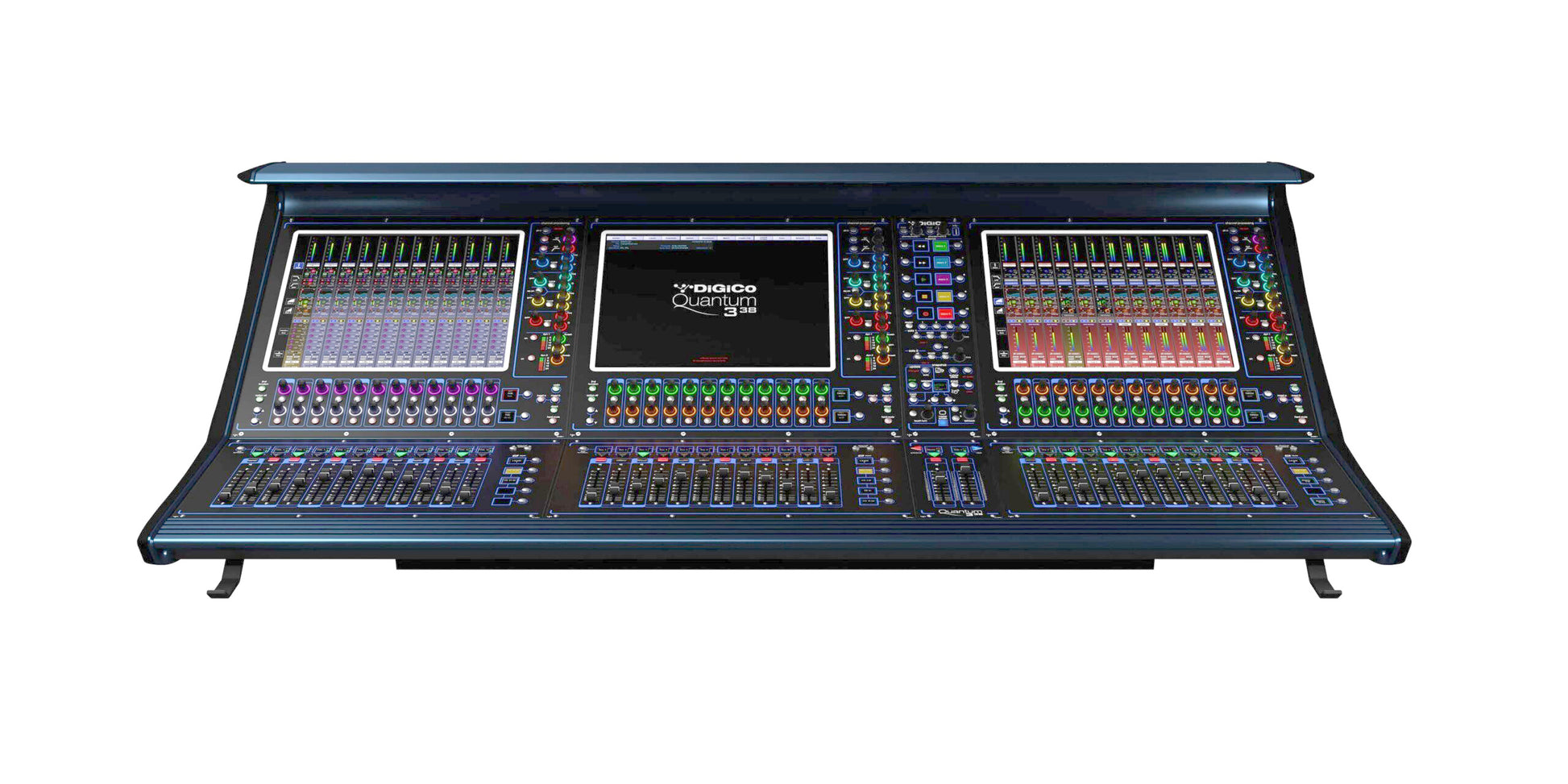

The Quantum 338 features three 17-inch, 1000-nit high-brightness multitouch screens, each equipped with a meter bridge and soft quick select buttons for intuitive control. It offers 70 individual TFT channel displays and 38 touch-sensitive faders arranged in three banks of 12, plus two user-assignable faders, providing extensive hands-on mixing capability.
The Quantum 338 is powered by “Ultimate Stadius” 32-bit ADC and DAC conversion. It supports six single or three redundant MADI connections, dual DMI slots, and includes a built-in UB MADI USB recording interface, ensuring versatile connectivity and superior audio performance.
The console supports various configurations including MADI, One Multi-Mode Optics HMA/ST and Multi-Mode Optic Loop OpticalCon.
Features:
- 128 Input Channels
- 64 Aux / Sub-Group Busses
- LR/LCR/LCRS/5.1 Master Buss
- 24 x 24 Full Processing Matrix
- 286 Dynamic Equalizers
- 48/96 kHz Sample Rate
Specifications:
- Channels: 128 input channels
- Buses: 64 busses + LR/LCR master bus
- Matrix: 24 x 24 matrix
- Local I/O:
- 8 mic/line inputs
- 8 line outputs
- 4 AES/EBU I/O
- MADI ports: Dual MADI ports supporting up to 64 channels at 48kHz or 32 channels at 96kHz
- DMI slots: 2 slots for DiGiCo Multichannel Interface cards
- FPGA technology: Powered by advanced Quantum FPGA processing
- Dynamic EQ: 4-band fully parametric dynamic EQ
- Multi-band compression: 3-band multi-band compression
- Power supply: Dual redundant power supplies
- Dimensions: Approximately 1,195mm x 812mm x 358mm (47" x 32" x 14")
- Weight: Approximately 58kg (128 lbs)
