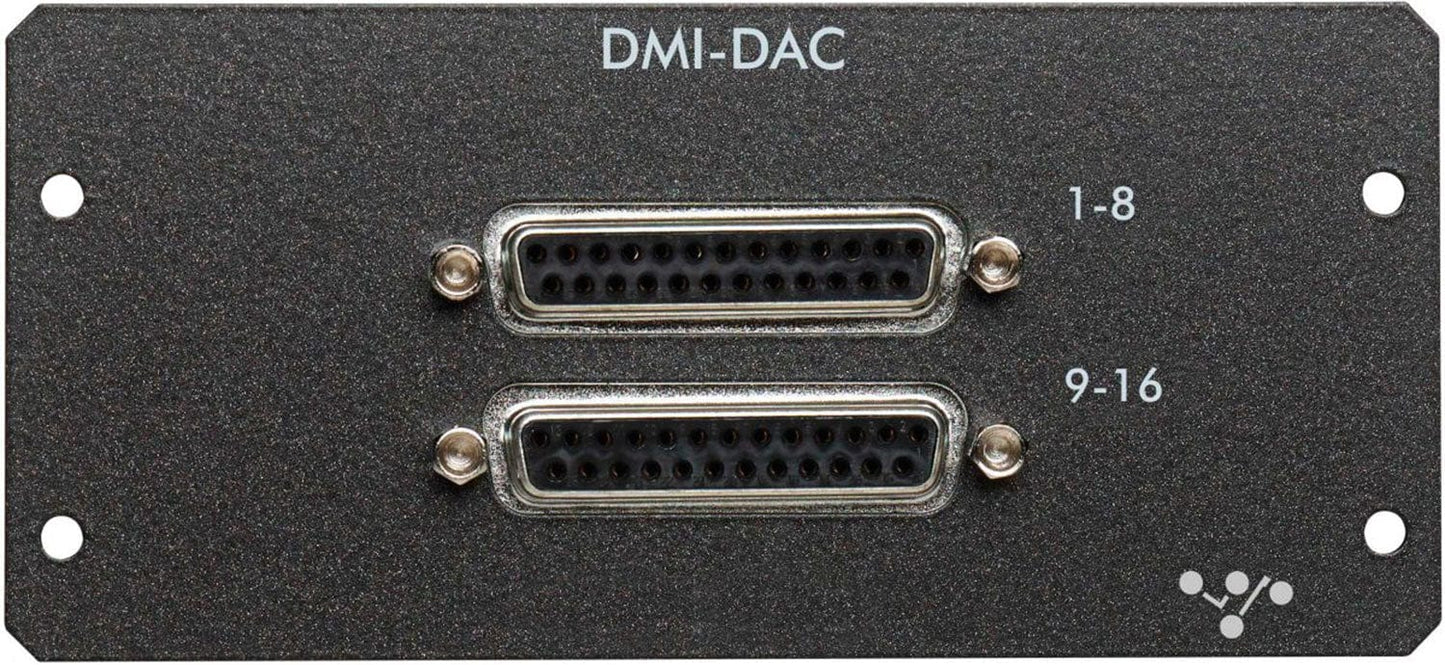

DiGiCo MOD-DMI-DAC 16-Channel Line Out Expansion Card with 2x 25-Pin D-Type Connectors

DMI-DAC

This card provides 16 analogue outputs on 2 x 25 way “D” connectors DAC card is line level only. Maximum output level +22dBu (Digital Full Scale)

As a simple solution to expanding the local i/o of the S-Series, DiGiCo offer the DMI-ADC and the DMI-DAC. Both use 2 x 25 way “D” connectors to add either 16 analogue inputs or 16 analogue outputs. Both cards are compatible with S-Series, Quantum Range, SD12, Orange Box and 4REA4.

Main Features

• 16 analogue outputs
• 2 x 25 way “D” connectors
• Compatible with S-Series, Quantum Range, SD12, Orange Box and 4REA4
