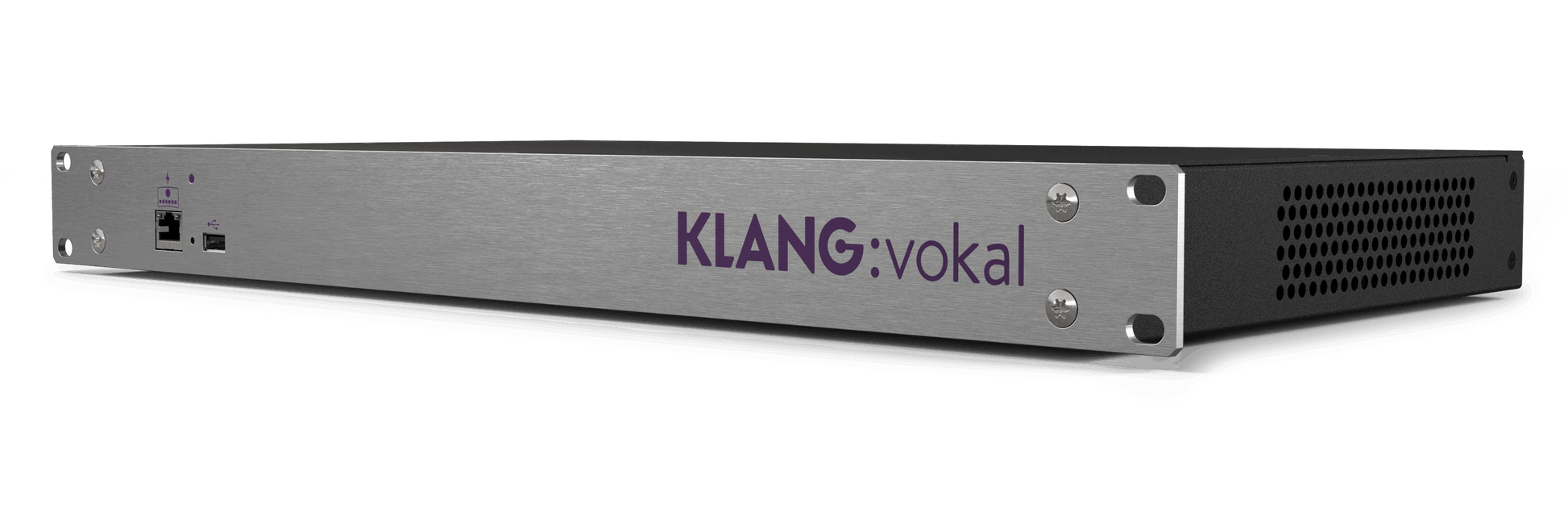

DiGiCo KLANG:VOKAL IEM Processor

DiGiCo KLANG:VOKAL Immersive IEM Processor with Maximum Flexibility and User Friendliness for Installations in HoW and Theatre

The KLANG:vokal is a next-generation immersive IEM processor engineered to complement KLANG:kontroller or operate independently. Built on KLANG's ultra-low latency FPGA core, it delivers 12 mixes from up to 24 mono or stereo inputs at 48kHz and 96kHz, featuring revolutionary Root-Intensity EQs for precise audio shaping. Process up to 24 channels from 64 available Dante and MADI inputs, with mixes routed via Dante to KLANG:kontroller or back to your mixing console through MADI or Dante. Designed for Houses of Worship and theatre installations, KLANG:vokal combines maximum flexibility with intuitive operation. Upgrade to vokal+ software to unlock full 64-input-per-mix capability and expand your immersive mixing potential.

Features:

• 12 immersive In-Ear mixes
• 24 Mono or Stereo Inputs, chosen per Mix from up to 64 Mono Inputs
• Upgradable to full 64 channels per with with :vokal+ channel boost
• High End Personal Monitoring System
• Natural immersive sound through binaural technology
• KLANG Root Intensity EQs for all 64 Mono Inputs and all 12 Mixes

Specifications:

• 64x64ch Dante HC (48kHz and 96kHz)
• Processing Latency 1/4ms
• 96 kHz | 48 kHz
• MADI BNC Input & Output (64x64ch @48kHz or 32x32ch @96kHz)
• Word Clock Input & Output
• 2x USB ports (front and rear) for Updates and Showfile exchange
• 2x Ethercon Dante Ports (Configurable without/with or with VLAN tagged Control)
• 2x Ethercon combined Control Network Ports with Outgoing Multicast Filter (Can be separated from Dante)
• 1x PoE delivery Dante & Control Port (front) for direct KLANG:kontroller operation
• 1x IEC Power Supply 110–240VAC
• 1 RU
• Weight: 3.6kg | Size body: 44.0 / 4.5 / 27.5 cm | Front panel (width): 48.5cm | 19 inches
