DiGiCo KLANG:KONDUCTOR Processor

DiGiCo KLANG:KONDUCTOR Processor

The KLANG:konductor is KLANG's most powerful and versatile immersive in-ear mixing processor, engineered for monitor engineers and fixed installations.

It delivers 16 immersive mixes while processing 128 input signals at up to 96kHz with less than 0.25ms internal processing latency. Three DMI slots provide unrivaled IO flexibility, supporting Optocore, Dante, and MADI formats with up to 64 input and output channels at both 48kHz and 96kHz. Single channel routing capabilities allow seamless conversion between different DMI formats and free routing between the immersive mix engine. Seamless integration with DiGiCo's control interface, the intuitive KLANG:app, and KLANG:kontroller gives engineers and musicians direct control over their mixes.

The front-mounted studio-grade amplifier circuit and headphone port enable direct connection of headphones and low-impedance in-ears, with easy switching between console cue output and KLANG cue via the app.

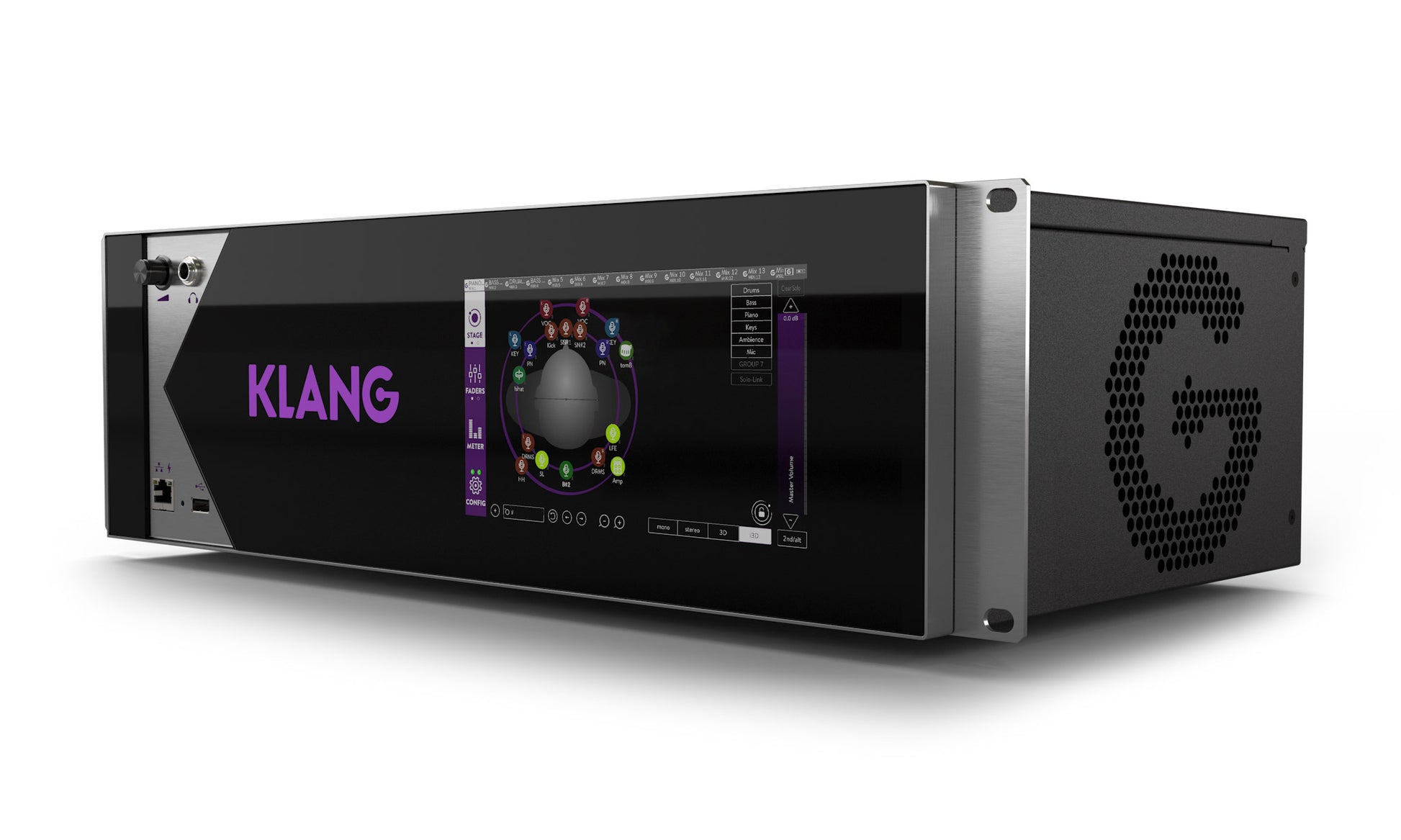

A 7-inch colour touch display on the front provides direct mix control, audio setup, routing, and monitoring meters. Front-mounted network port delivers power over ethernet to KLANG:kontroller or KLANG:quelle devices. Dual redundant power supplies ensure maximum reliability for demanding live and installation environments.

Features:

• 16 immersive In-Ear mixes
• 128 inputs channels
• 3 DMI card expansion slots (e.g. for Optocore, MADI, Dante)
• Arbitrary single channel audio routing (between DMI cards and engine)
• Ultra low processing latency through cutting edge FPGA technology
• Integrated Studio Grade Headphone Amp for Monitoring
• Workflow integration with DiGiCo SD and Q series consoles
• Compatible with KLANG:app, KLANG:kontroller and other KLANG processors
• 7″ touch screen with full KLANG:app control
• KLANG’s root intensity EQs

Specifications:

• 1/4 ms processing latency (without IO cards)
• 2 x USB port for software updates and preset exchange
• 1 x Studio grade headphone amp with volume control
• 7 inch color touch display
• Dual redundant Power Supply
• 1x RJ45 Front Ethernet port with PoE delivery (15W) | ideal for :kontroller
• 2x RJ45 EtherCON Control Ethernet ports
• 1x RJ45 EtherCON Ethernet LINK port
• 128 Inputs / 16 Mixes @ 48 and 96kHz
• Word Clock input and output
• 192×192 channel audio network router
• Weight: 6.3kg | Size body: 43.5 / 13.3 / 26.8 cm
• Front panel: 48.5cm | 19″ | 3RUs
