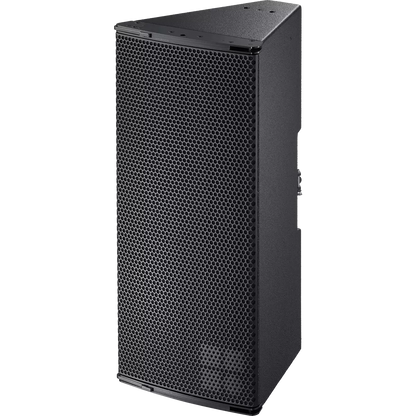

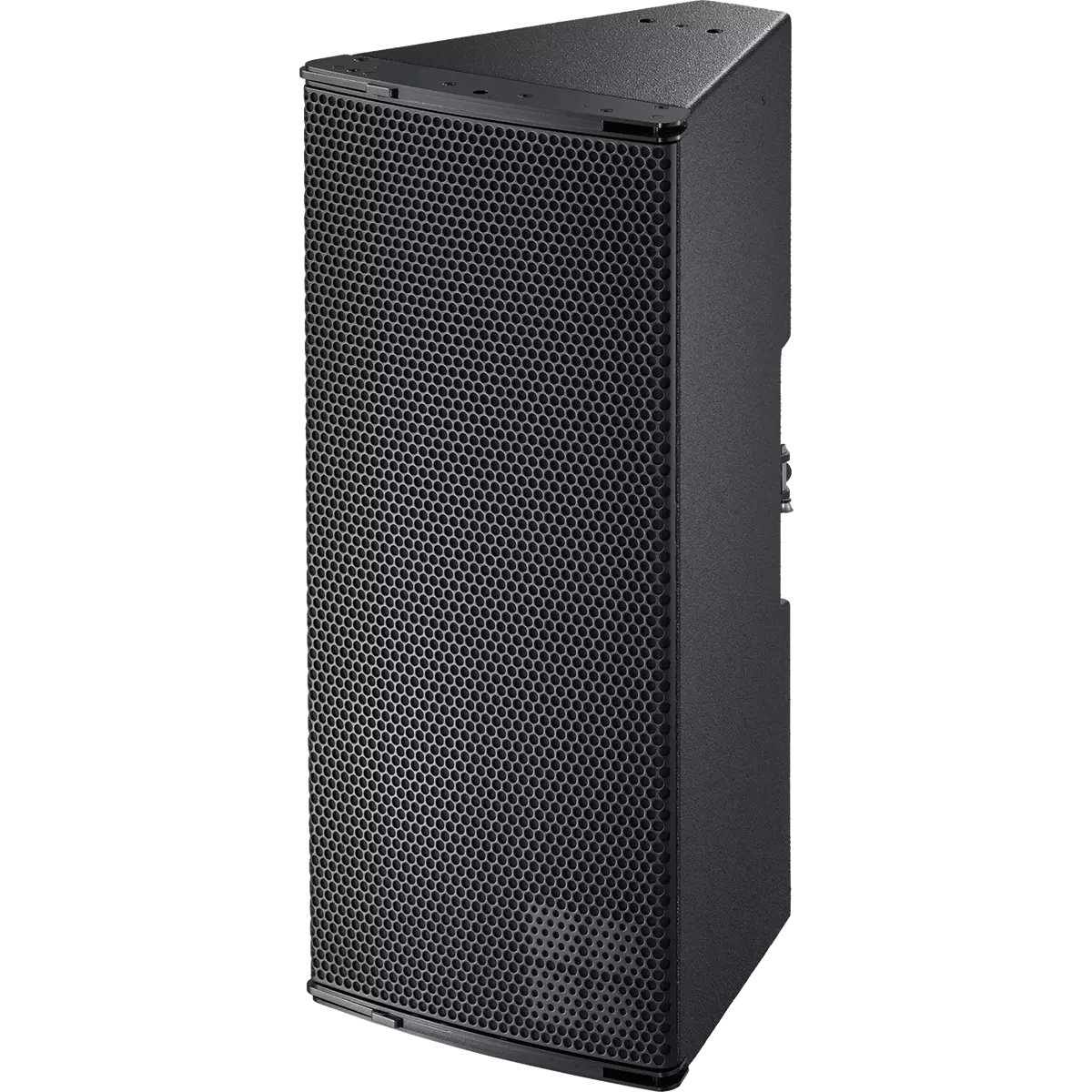

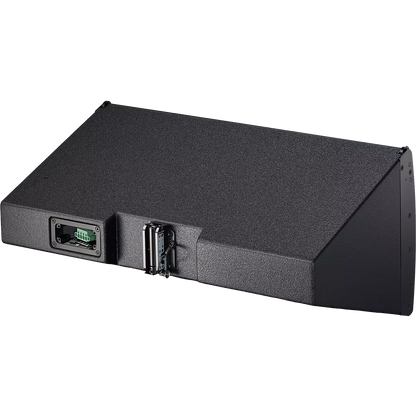

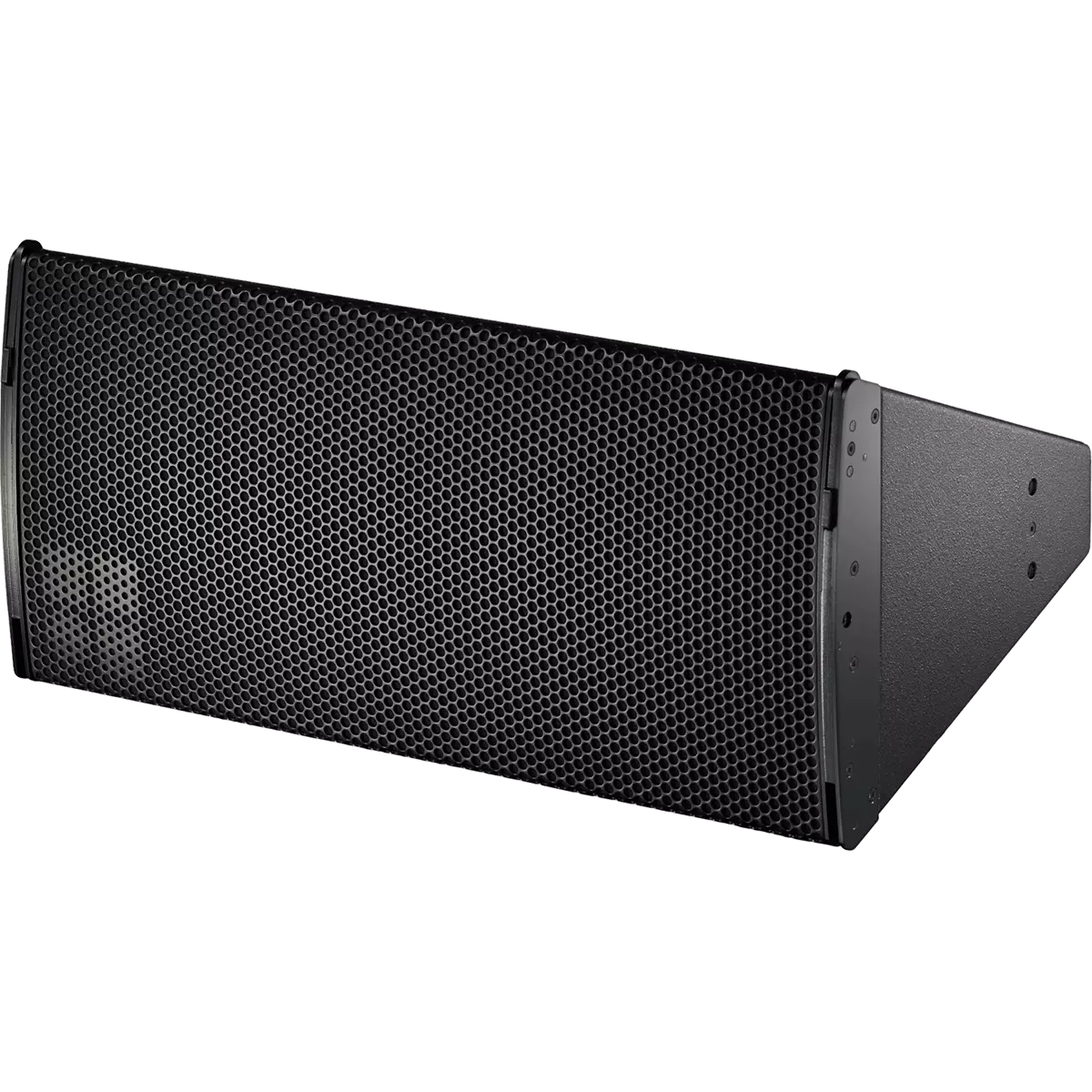

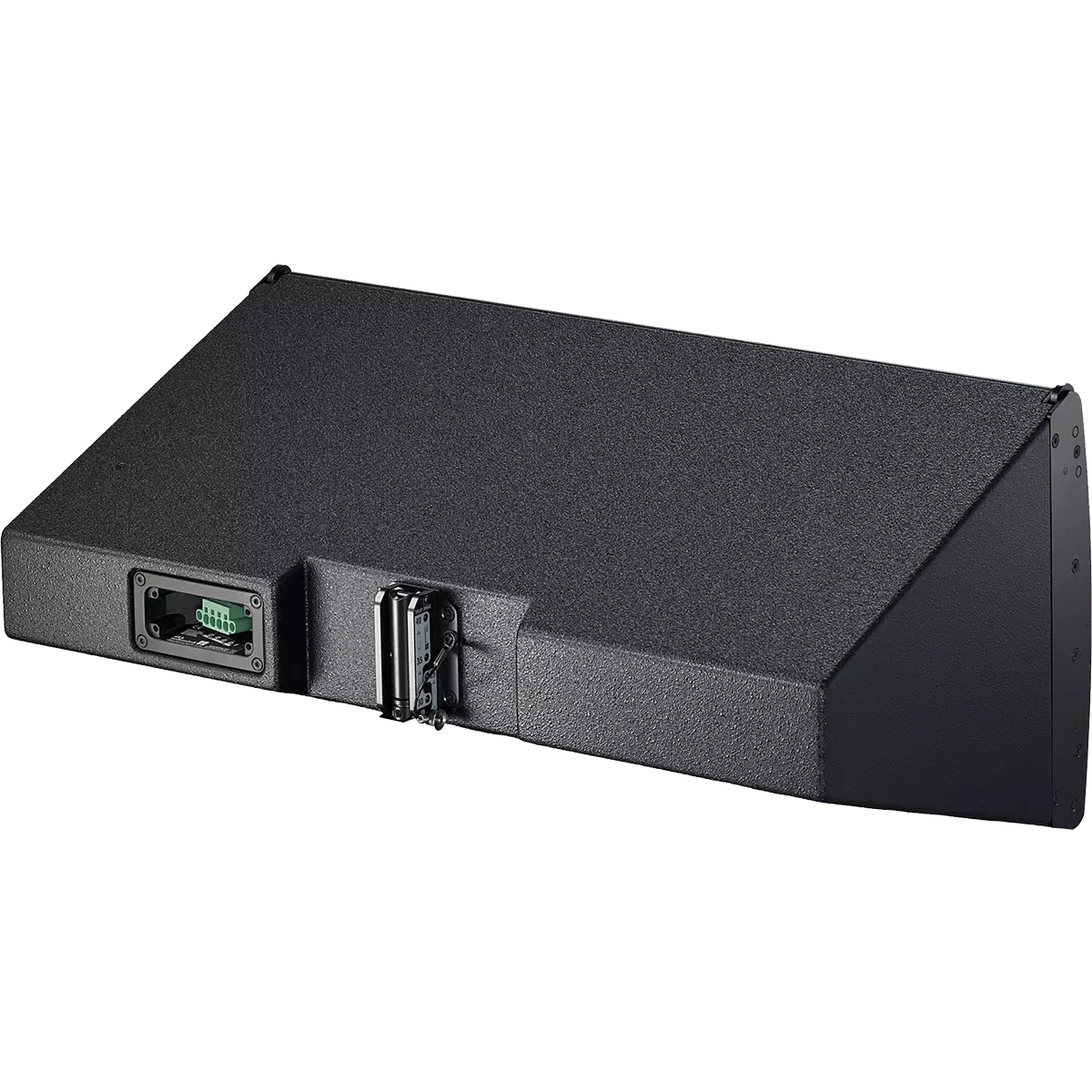

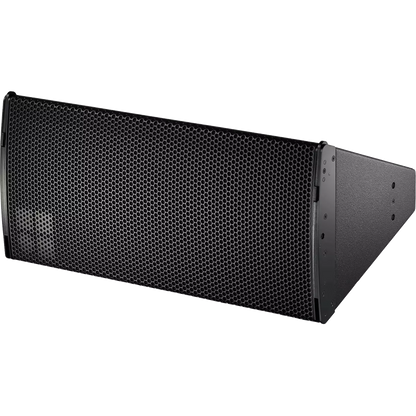

d&b audiotechnik ALi90 Loudspeaker

The ALi90 is a passive 2-way system featuring two 10" neodymium LF drivers and a 1.4" compression driver with a 3" diaphragm, optimised by a dedicated wave-shaping device.

The ALi90, when used with the AL Flyingframe, supports flying up to four cabinet modules in vertical columns, delivering a consistent 90° directivity dispersion. Horizontal arrays of up to four units can be configured using the AL Flying adapter.

The loudspeaker offers adjustable splay angles from 20° to 40° enable coverage ranging from 50° to 150°, while broadband horizontal dispersion control is maintained down to 370 Hz.

This is the install specific of the d&b audiotechnik AL90 Loudspeaker.

Features:

• Components 2 x 10" LF driver, 1 x 1.4” exit compression driver with 3" coil
• Dispersion 90° x 30°
• SPLmax 139 dB
• Weight 22 kg / 48.5 lb
