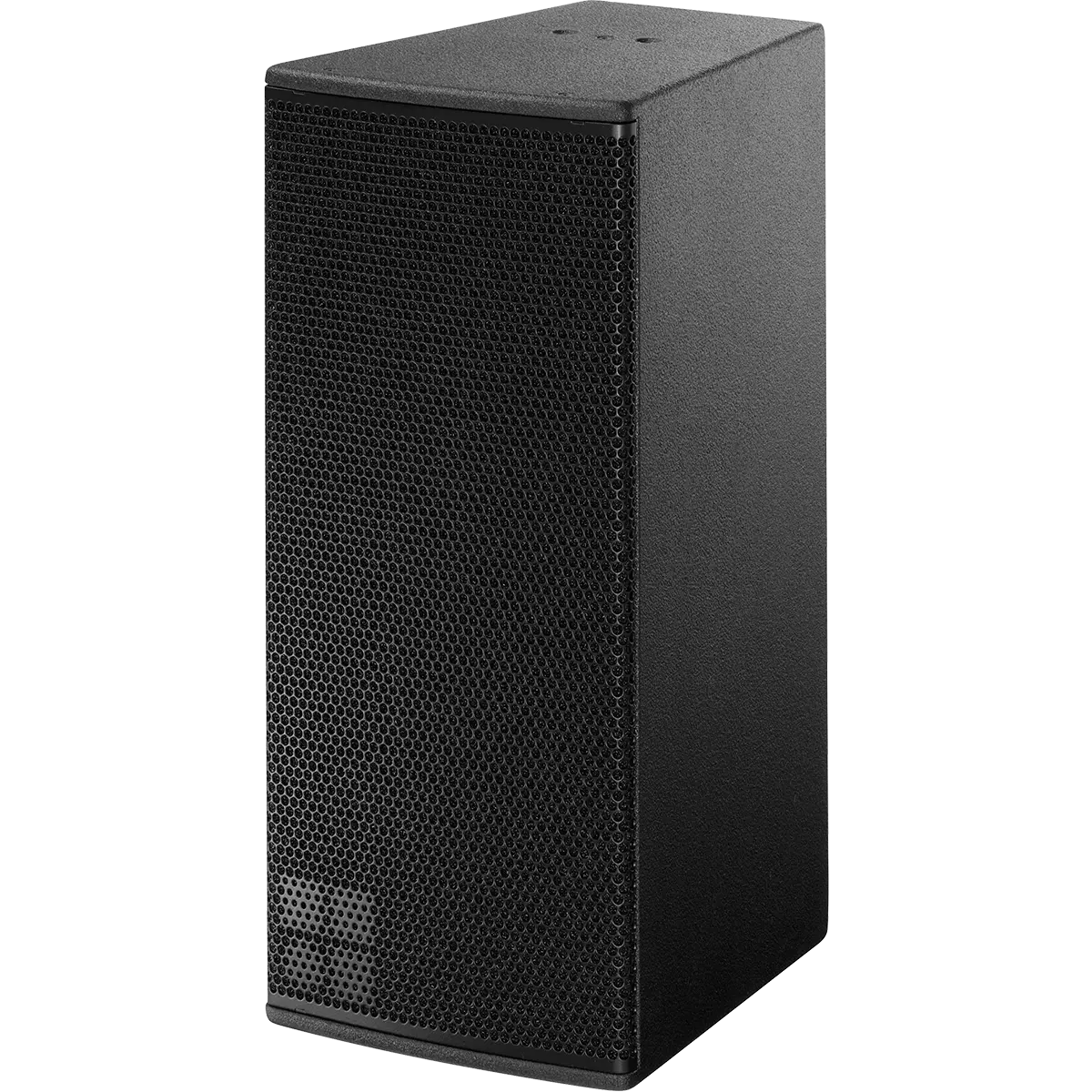

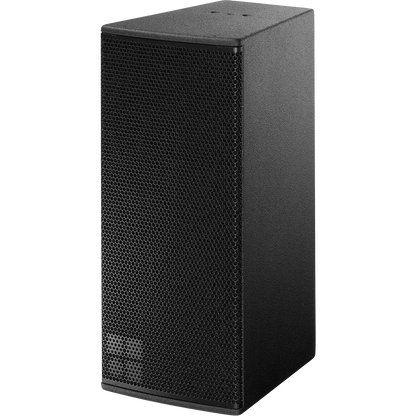

d&b audiotechnik Yi10P Installation Specific High Performance 2-way Passive Point Source Loudspeaker with Wide Dispersion

The Yi10P is a compact 2-way passive point-source loudspeaker engineered for professional installation applications. Featuring dual 8" LF drivers in a dipole arrangement paired with a 1.4" compression driver on a rotatable constant-directivity horn, it delivers full-bandwidth performance with extended bass output.

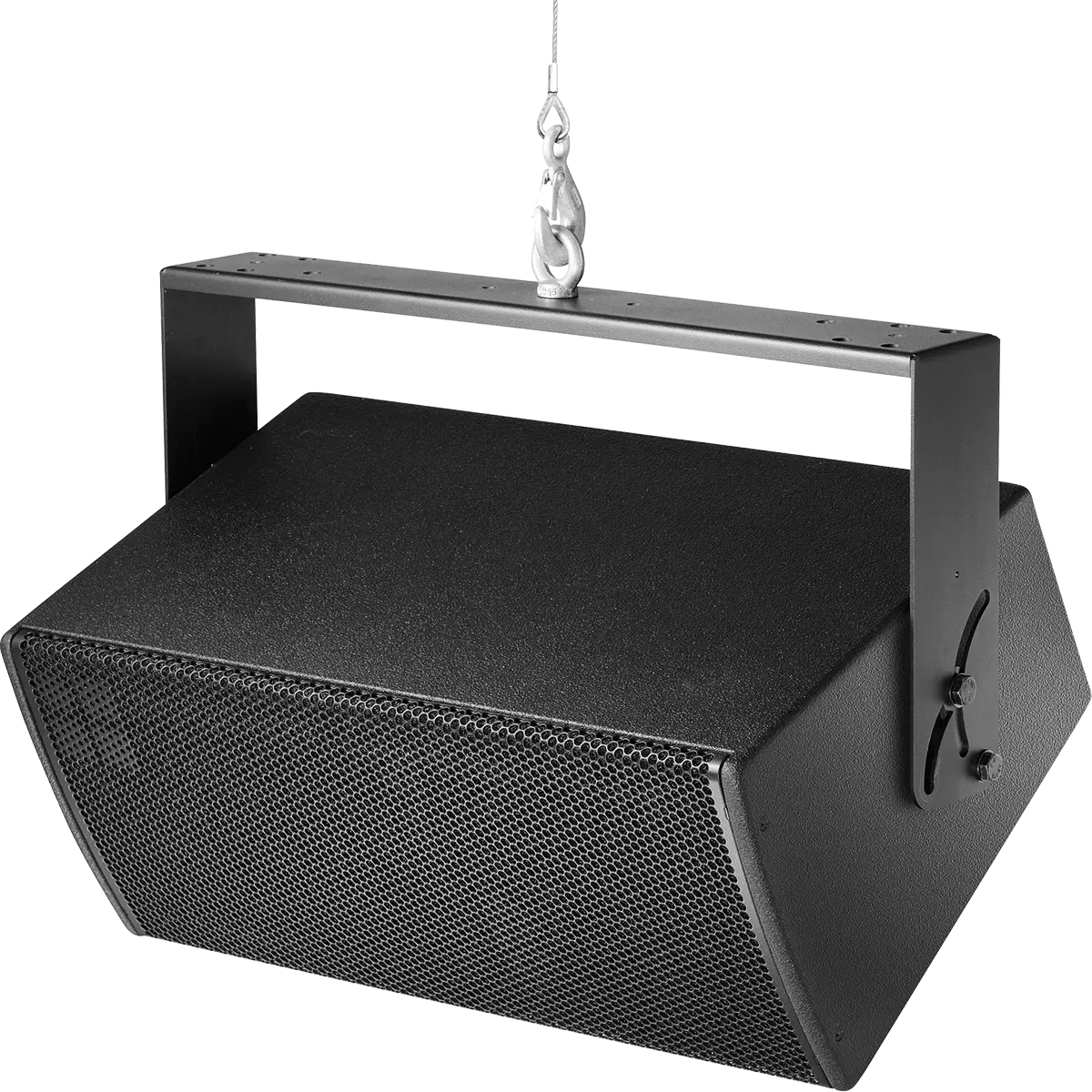

The advanced horn geometry and bass-reflex design provide 110° horizontal directivity down to 500 Hz and 40° vertical dispersion, with a 90° rotatable horn for flexible mounting orientations. Built from marine-plywood with an impact-resistant finish, the Yi10P works as a standalone full-range cabinet or integrates seamlessly with other Y-Series elements in flown or ground-stacked configurations.

Available in Weather Resistant (IP55) and Special Colour versions for diverse environmental and aesthetic needs.

Features:

• Components 2 x 8"/1.4"
• Dispersion 110° x 40°
• SPLmax 136 dB
• Weight 18 kg / 40 lb

Specifications:

System Data:

• Frequency Response (-5 dB Standard): 59 Hz - 18 kHz
• Frequency Response (-5 dB CUT Mode): 118 Hz - 18 kHz
• Max. sound pressure
  with 10D: 131 dB
  with D25/25D: 134 dB
  with D40/D80/D90/40D: 136 dB
• Cabinets per Amplifier Channel: 2

Loudspeaker Data:

• Configuration: Installation specific high performance 2-way passive point source loudspeaker with wide dispersion
• Nominal Impedance: 8 Ω
• Power Handling Capacity (RMS/Peak 10 ms): 400/1600 W
• Nominal Dispersion Angle (h x v): 110° x 40°
• Components: 2 x 8" driver with neodymium magnet
  1.4" exit compression driver
  passive crossover network
• Connections: 2 x NL4
  Screw terminal block

Dimensions / Weight:

• Dimensions (h x w x d): 580 x 257 x 341 mm
  22.8 x 10 x 13.4"
• Weight: 18 kg
  40 lb

Amplifiers:

• d&b audiotechnik 30D Amplifier
• d&b audiotechnik 40D Amplifier
