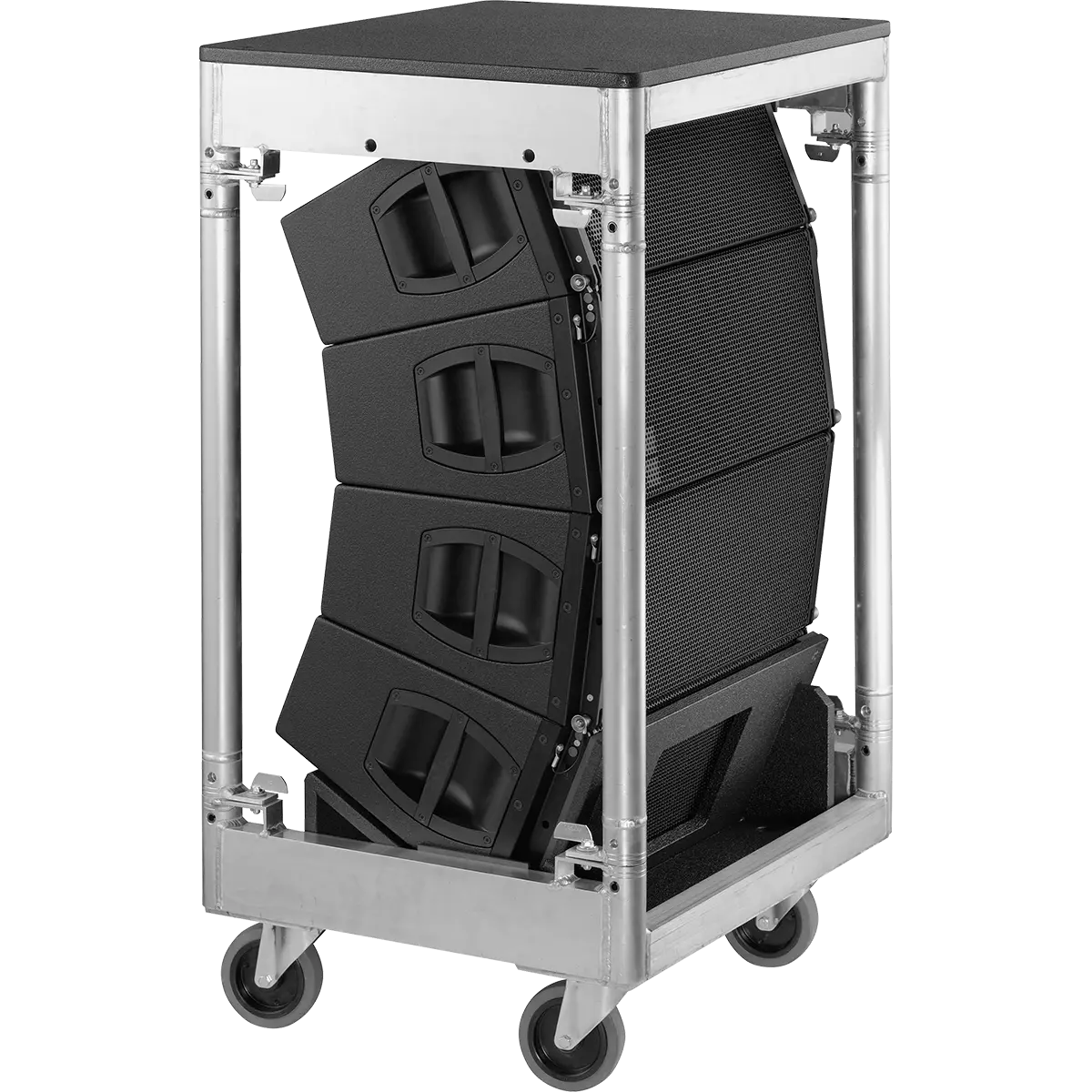

d&b audiotechnik Y8 Loudspeaker

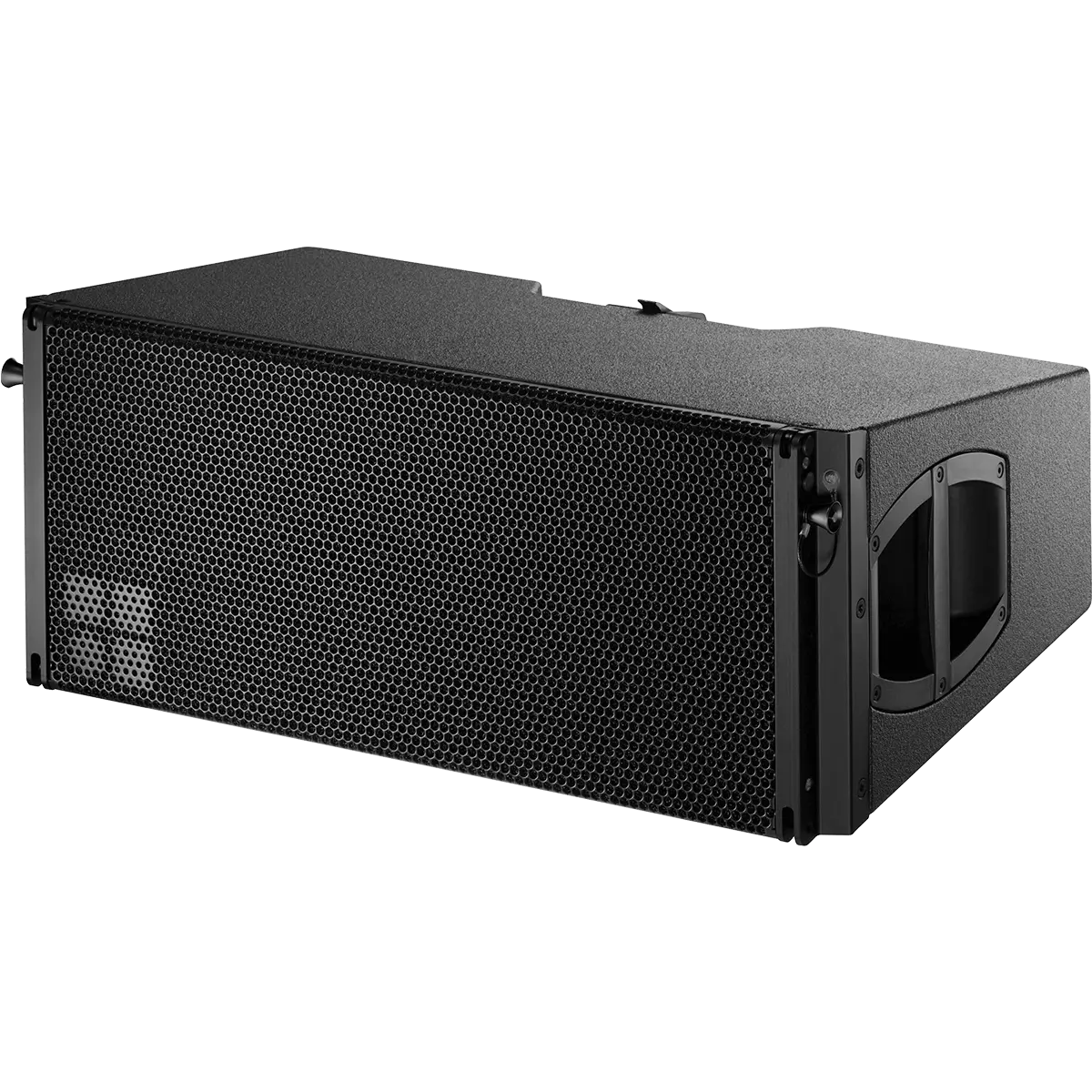

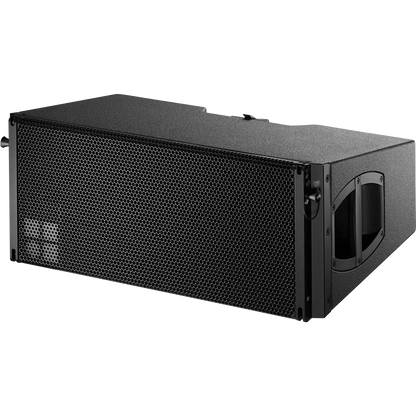

The Y8 features a 2-way passive design, housing two 8" drivers and a 1.4" HF compression driver with a wave transformer. Its driver arrangement ensures consistent 80° horizontal directivity down to 500 Hz.

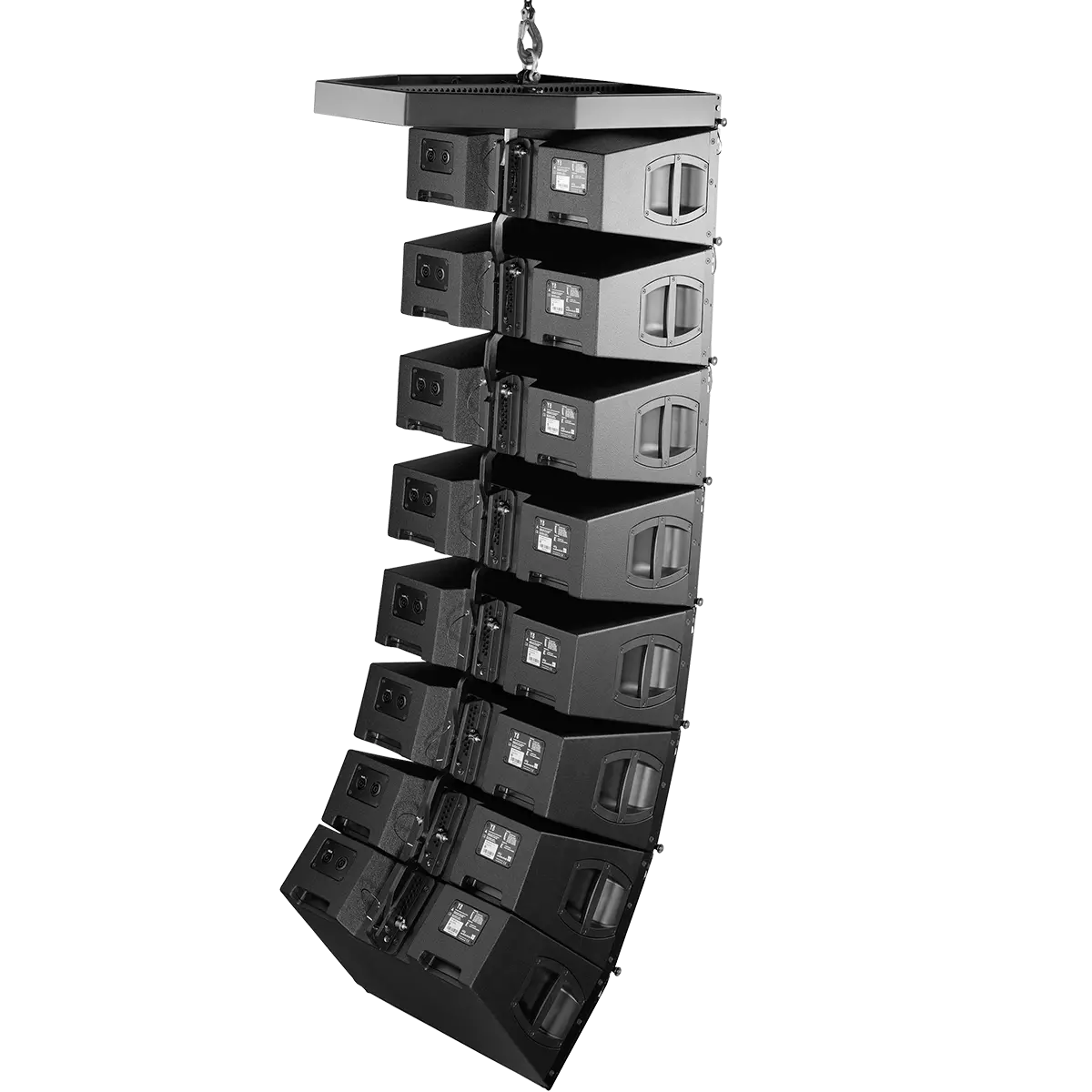

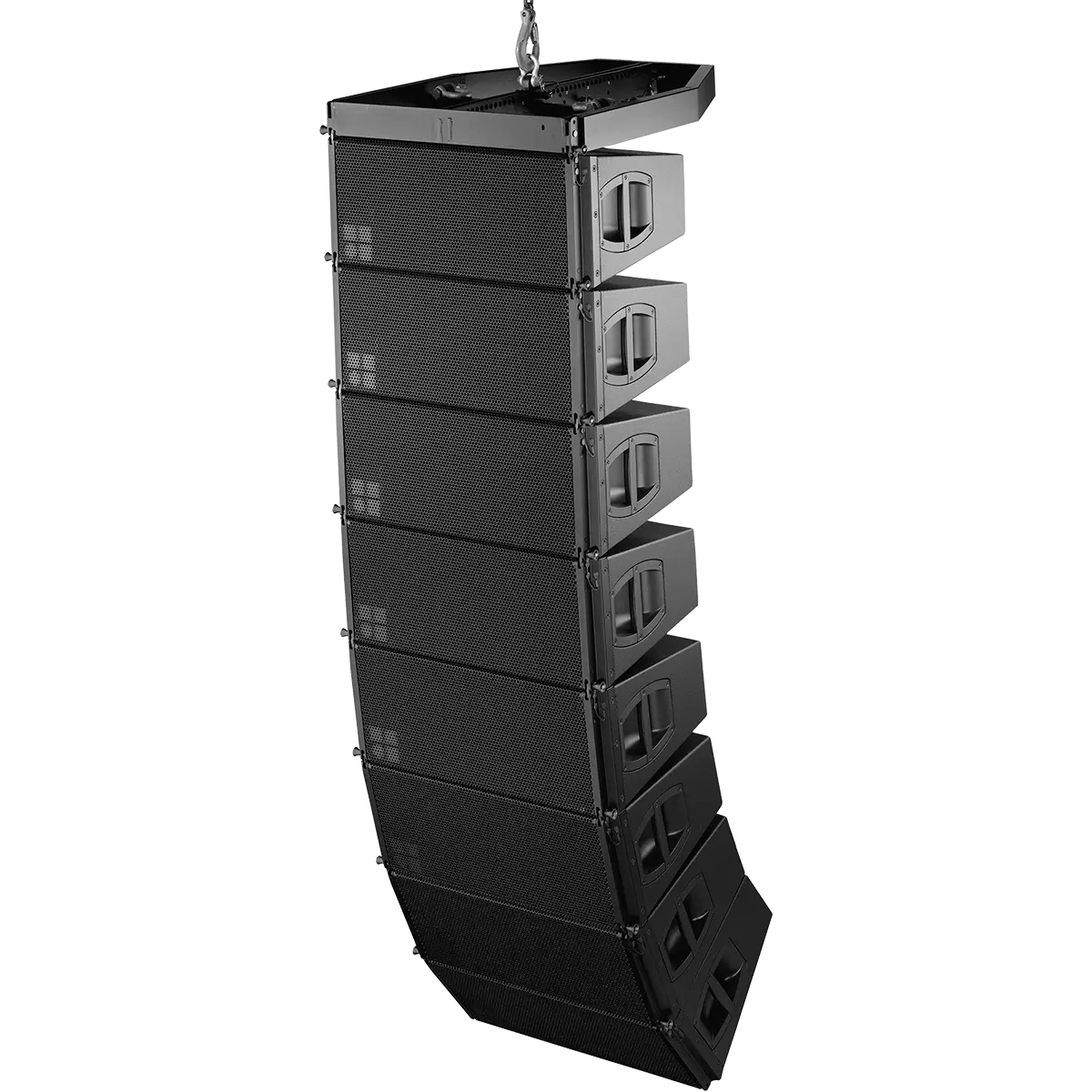

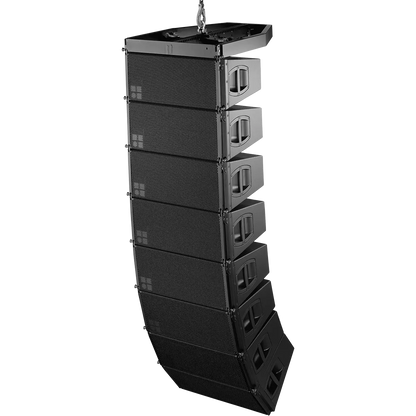

The Y8 is designed for flown vertical arrays of up to 24 units with vertical splay angles from 0° to 14° with a 1° resolution. Also, the Y8 can be used alone or combined with Y12 loudspeakers and Y-SUBs.

The Y8 is available with NL4 Connections and NLT4 F/M Connections.

Features:

• Components 2 x 8"/1.4"
• Dispersion 80°
• SPLmax 139 dB
• Weight 20 kg / 44 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 54 Hz - 19 kHz
  • Frequency response (-5 dB CUT mode): 100 Hz - 19 kHz
  • Max. sound pressure:
    • with 10D: 134 dB
    • with D20/30D: 137 dB
    • with D40/D80/40D: 139 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: High performance 2-way passive line array loudspeaker
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 400/1600 W
  • Nominal dispersion angle (horizontal): 80°
  • Splay angle settings: 0° - 14° (1° increment)
  • Components:
    • 2 x 8" driver with neodymium magnet
    • 1.4" exit compression driver
    • passive crossover network
  • Connections: 2 x NL4
• Dimensions / weight:
  • Dimensions (H x W x D): 257 x 630 x 375 mm (10 x 24.8 x 14.8")
  • Weight: 20 kg (44 lb)
