d&b audiotechnik Y-Sub Subwoofer

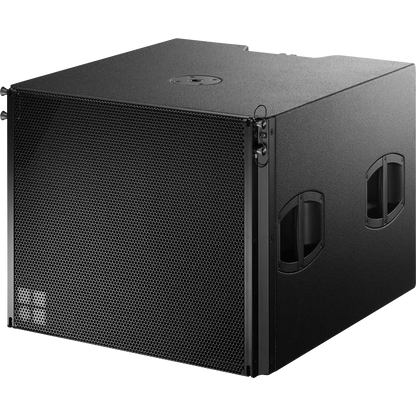

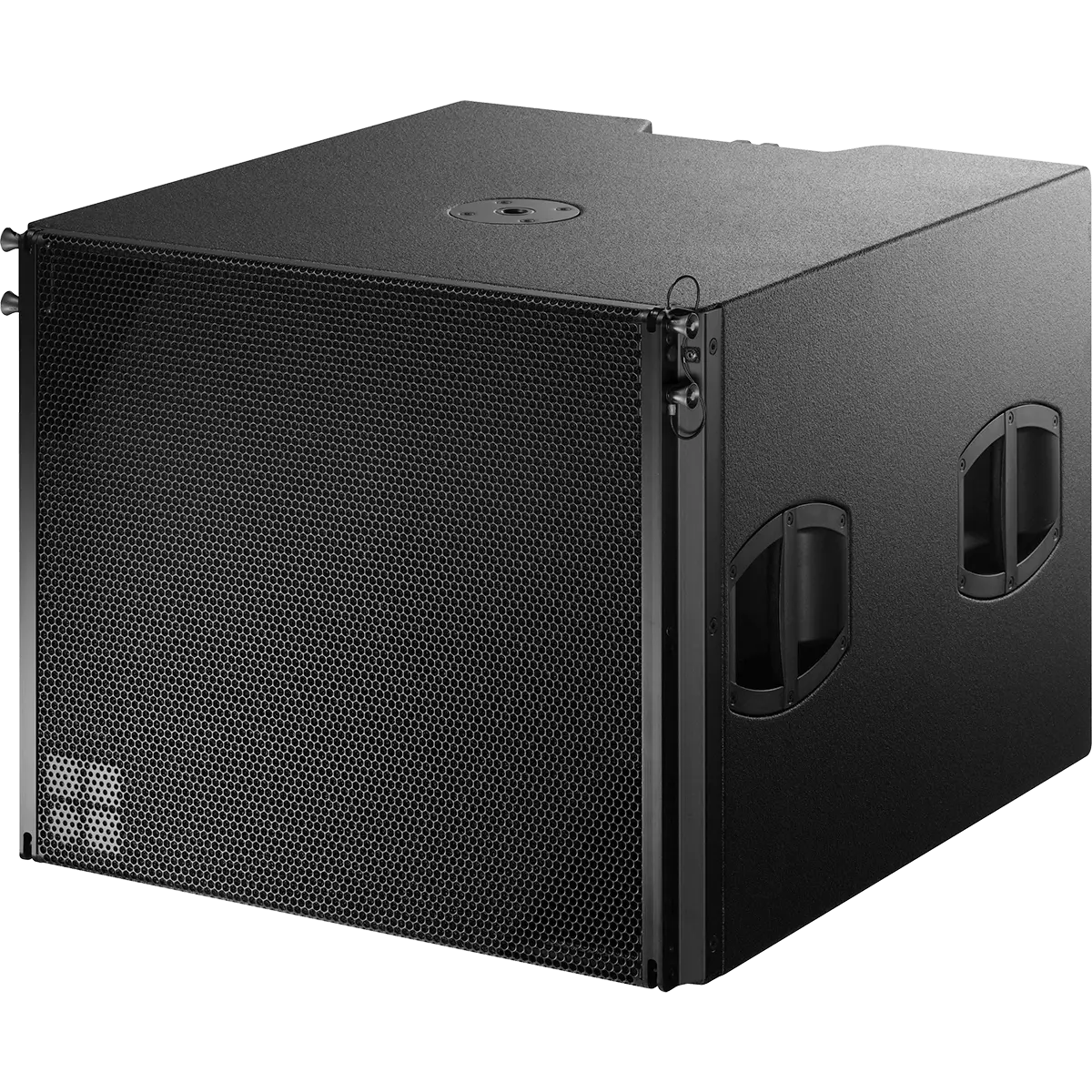

The Y-Sub is a cardioid subwoofer driven by a single amplifier channel. It features two long-excursion neodymium drivers: an 18" bass-reflex driver projecting forward, and a 12" driver in a two-chamber bandpass design radiating to the rear.

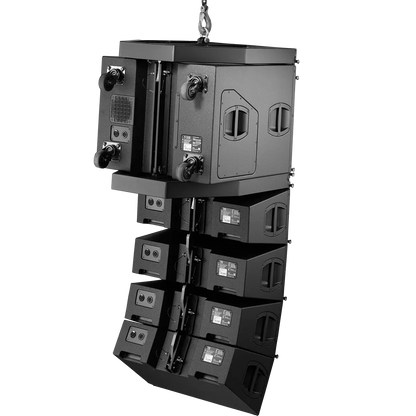

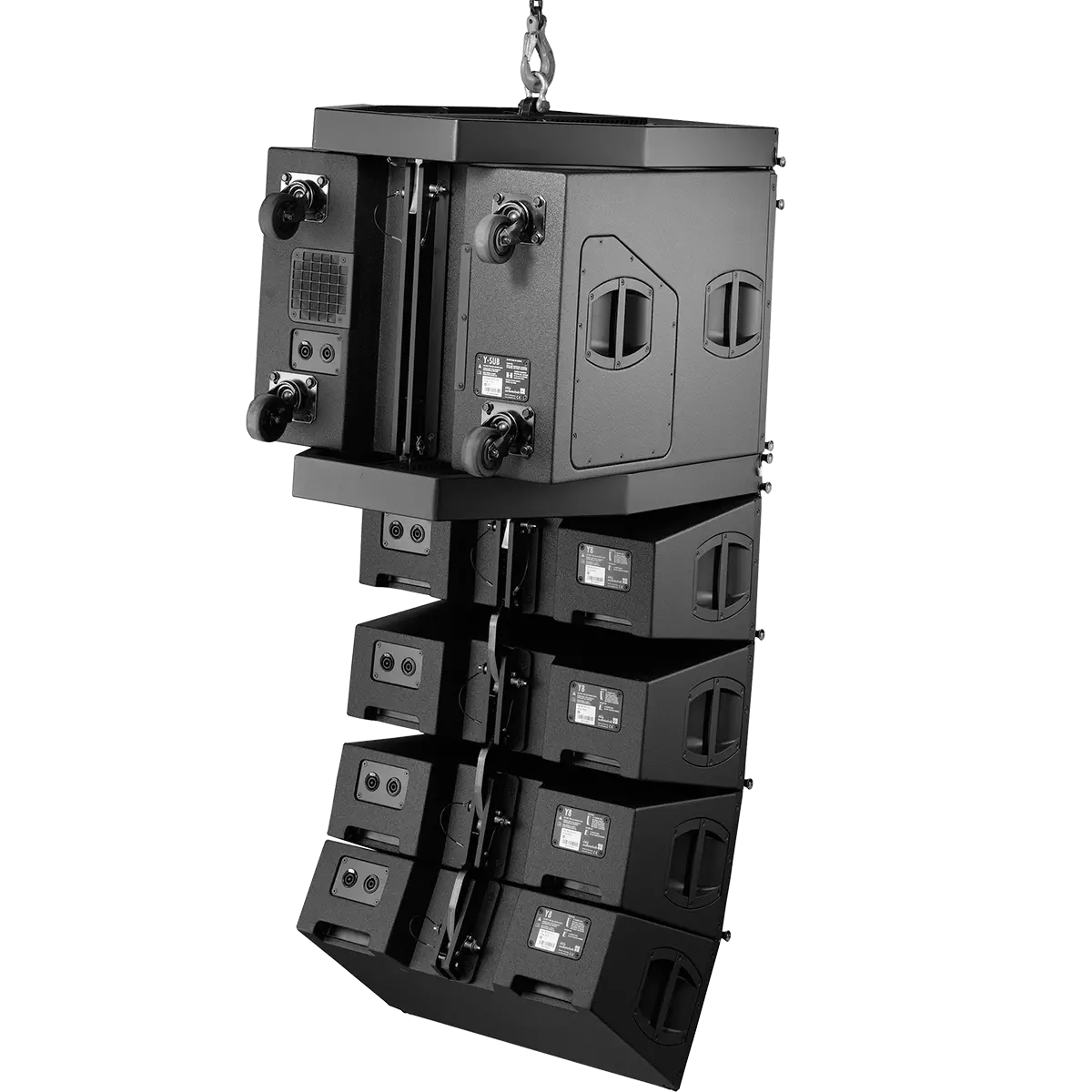

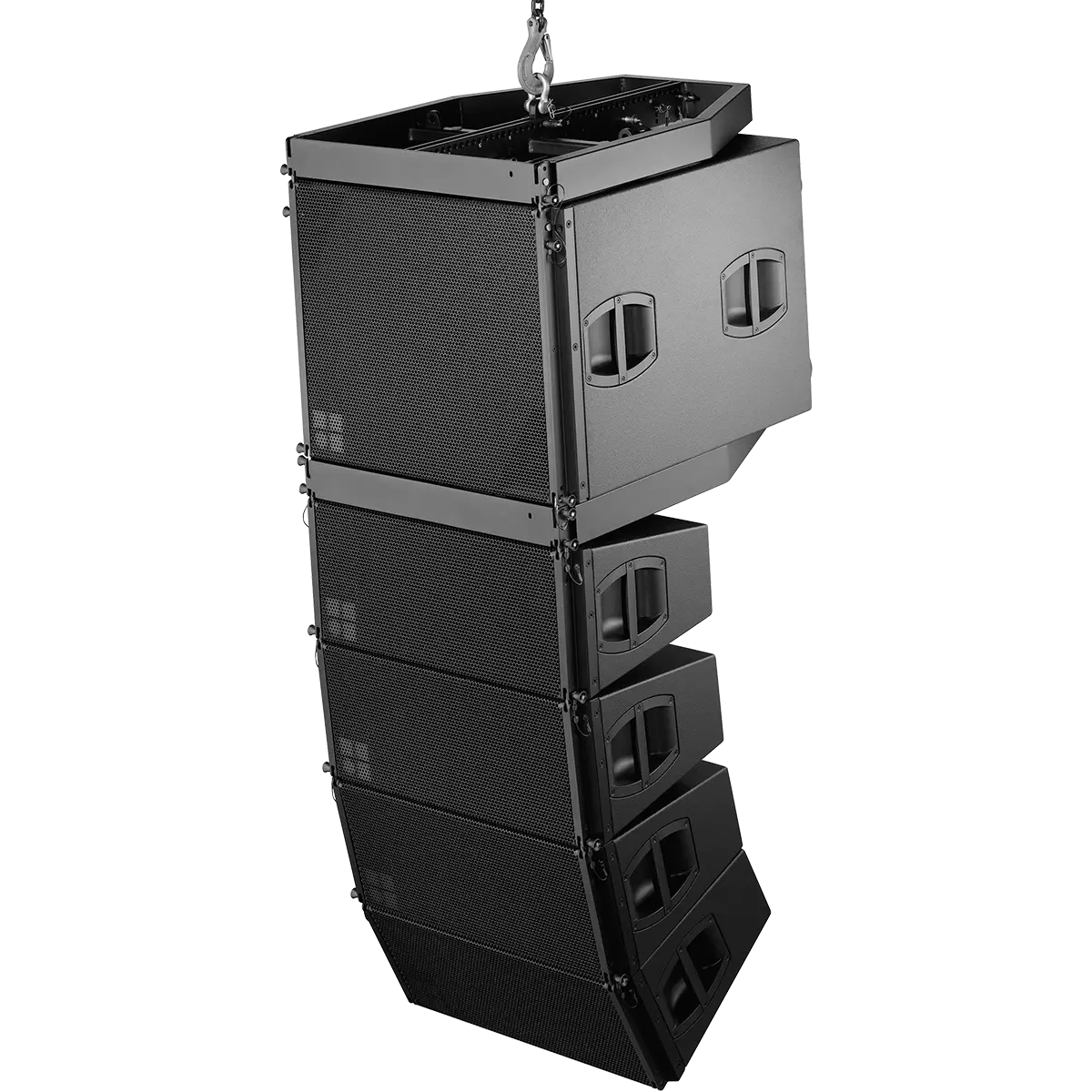

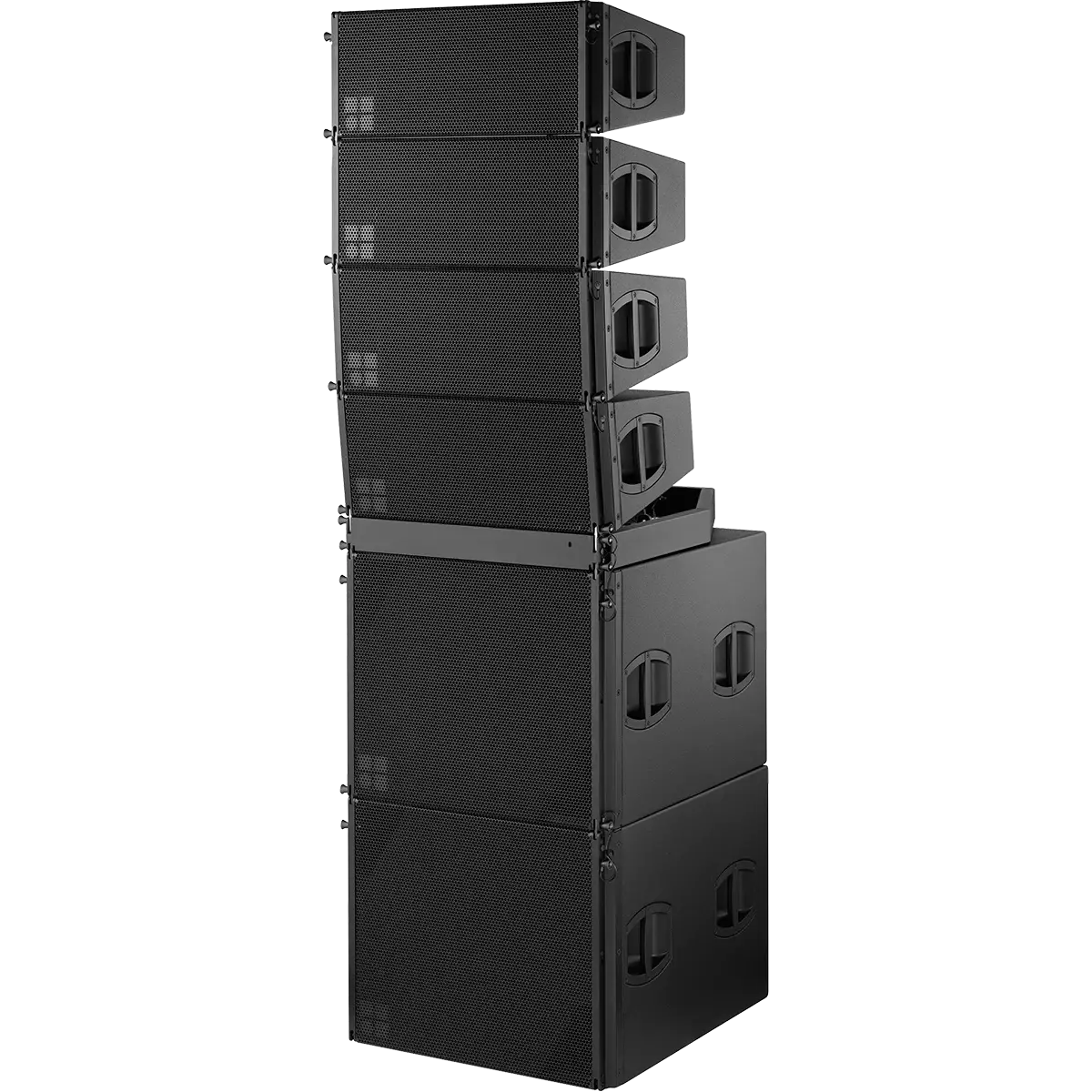

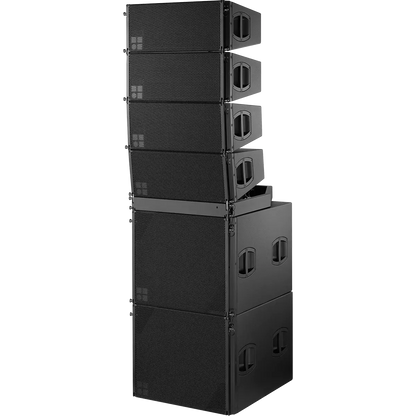

The Y-Sub features integrated three point rigging hardware and can be flown in a column of purely Y subwoofers, at the top of a Y array or used in a ground stacked setup.

The Y-Sub is available with NL4 Connections or NLT4 F/M Connections.

Features:

• Components 18"/12"
• Dispersion Cardioid
• SPLmax 134 dB
• Weight 52 kg / 115 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 39 Hz - 140 Hz
  • Frequency response (-5 dB CUT mode): 39 Hz - 110 Hz
  • Max. sound pressure:
    • with 10D: 128 dB
    • with D20/30D: 131 dB
    • with D40/D80/40D: 134 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: High performance flyable cardioid subwoofer
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 600/2400 W
  • Nominal dispersion angle (horizontal): 120°
  • Splay angle settings: 0° and 2.5°
  • Components:
    • 1 x 18" driver with neodymium magnet
    • 1 x 12" driver with neodymium magnet
  • Connections: 2 x NL4
• Dimensions / weight:
  • Dimensions (H x W x D): 500 x 630 x 700 / 804 mm (19.7 x 24.8 x 27.6 / 31.6")
  • Weight: 52 kg (115 lb)
