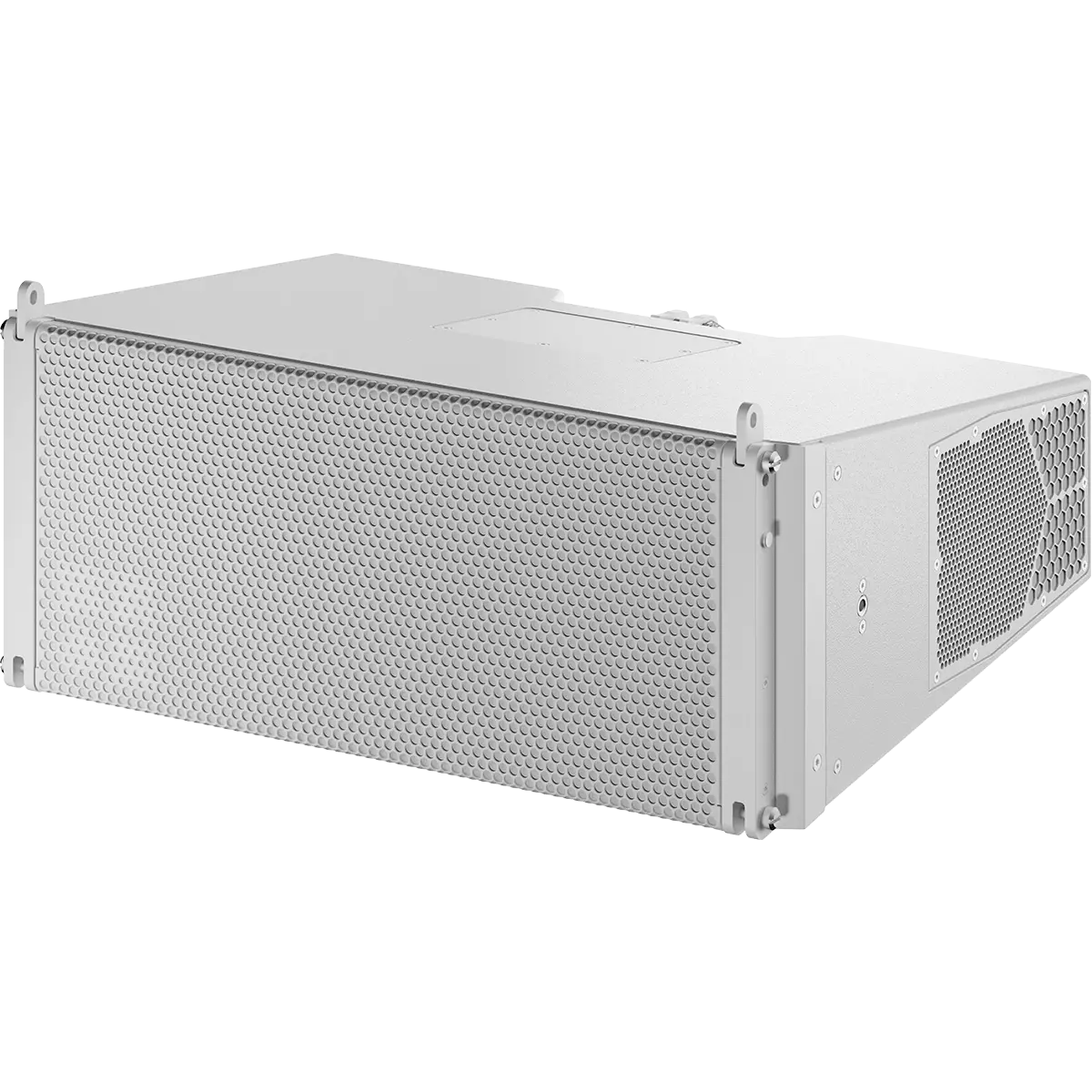

d&b audiotechnik XSLi8 Loudspeaker
The XSLi8 features custom rigging solutions that enable flying up to twenty-four cabinets with the XSLi Flying frame set or up to twelve cabinets with the XSLi Mounting frame in vertical columns. This set-up delivers an 80° constant directivity dispersion pattern.
The XSLi8 houses two 8” neodymium forward-facing LF drivers, two 6.5” side-firing neodymium LF drivers, a horn-loaded 6.5” MF driver, and two 1” exit HF compression drivers with 2” voice coils, each mounted to a dedicated wave-shaping device.
The loudspeakers design ensures directivity control from the lowest frequencies up to above 18 kHz.
The XSLi-System mounting hardware supports splay angles between cabinets from 0° to 14° in 1° increments for precise coverage optimization.
This is the install specific of the d&b audiotechnik XSL8 Loudspeaker.
