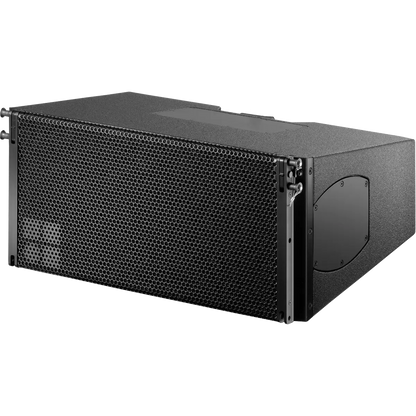

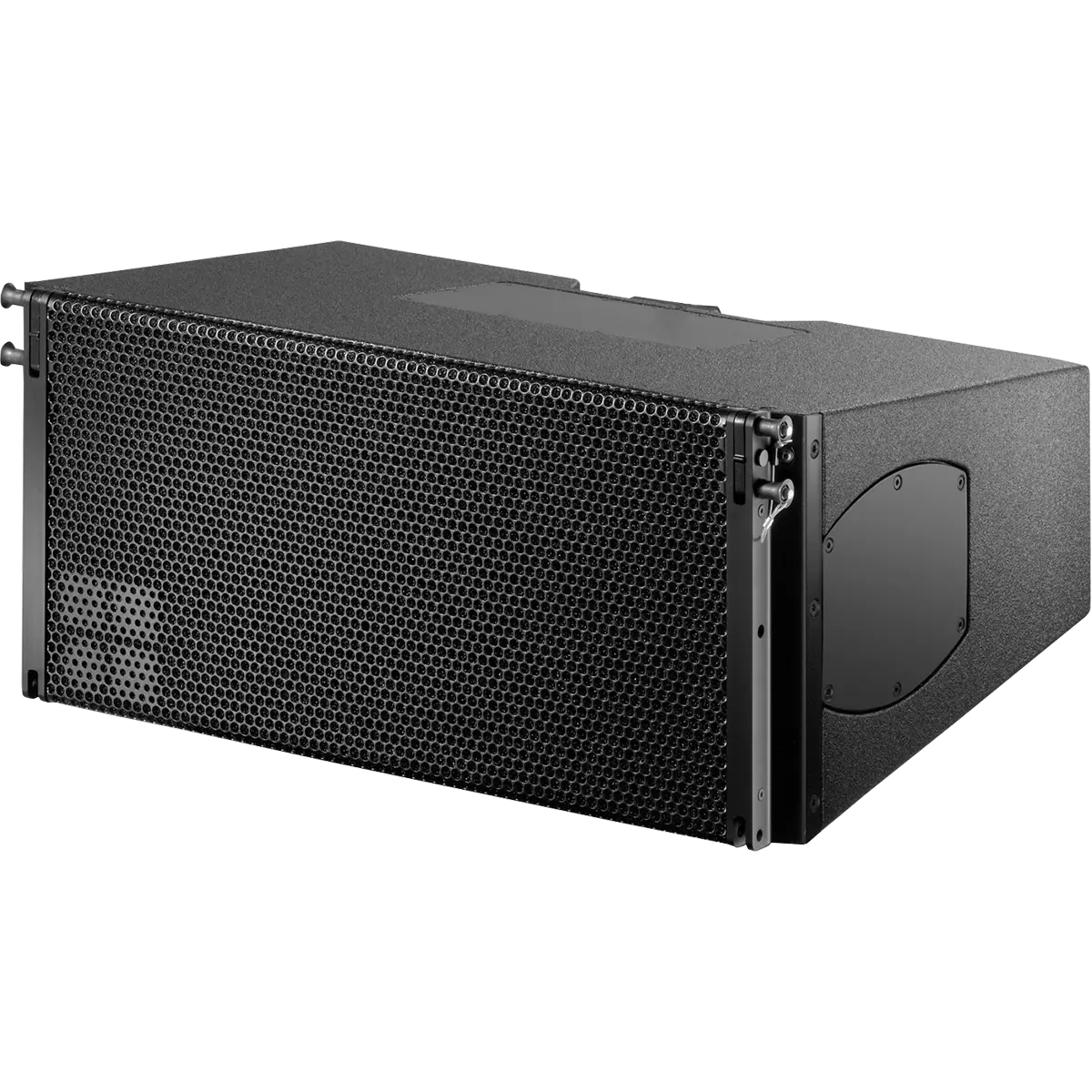

d&b audiotechnik Vi8 Loudspeaker Installation Specific High Performance 3-way Passive Line Array Loudspeaker

The Vi8 is a 3-way passive design with 2 x 10" LF drivers, one horn-loaded 8" MF driver, and two 1.4" exit HF compression drivers equipped with 2.5" voicecoils and mounted to a waveshaping device. It delivers 80° horizontal constant directivity down to 250 Hz.

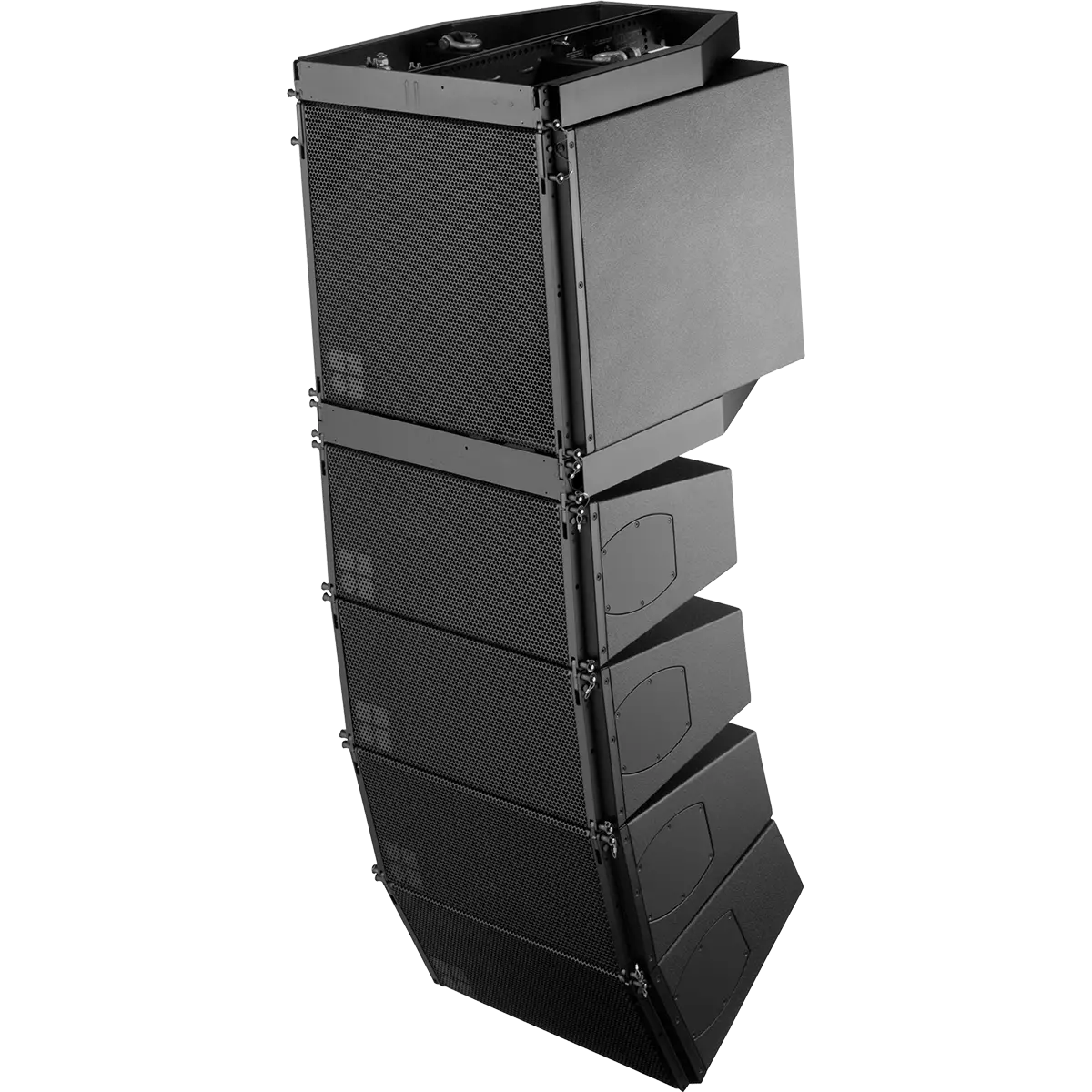

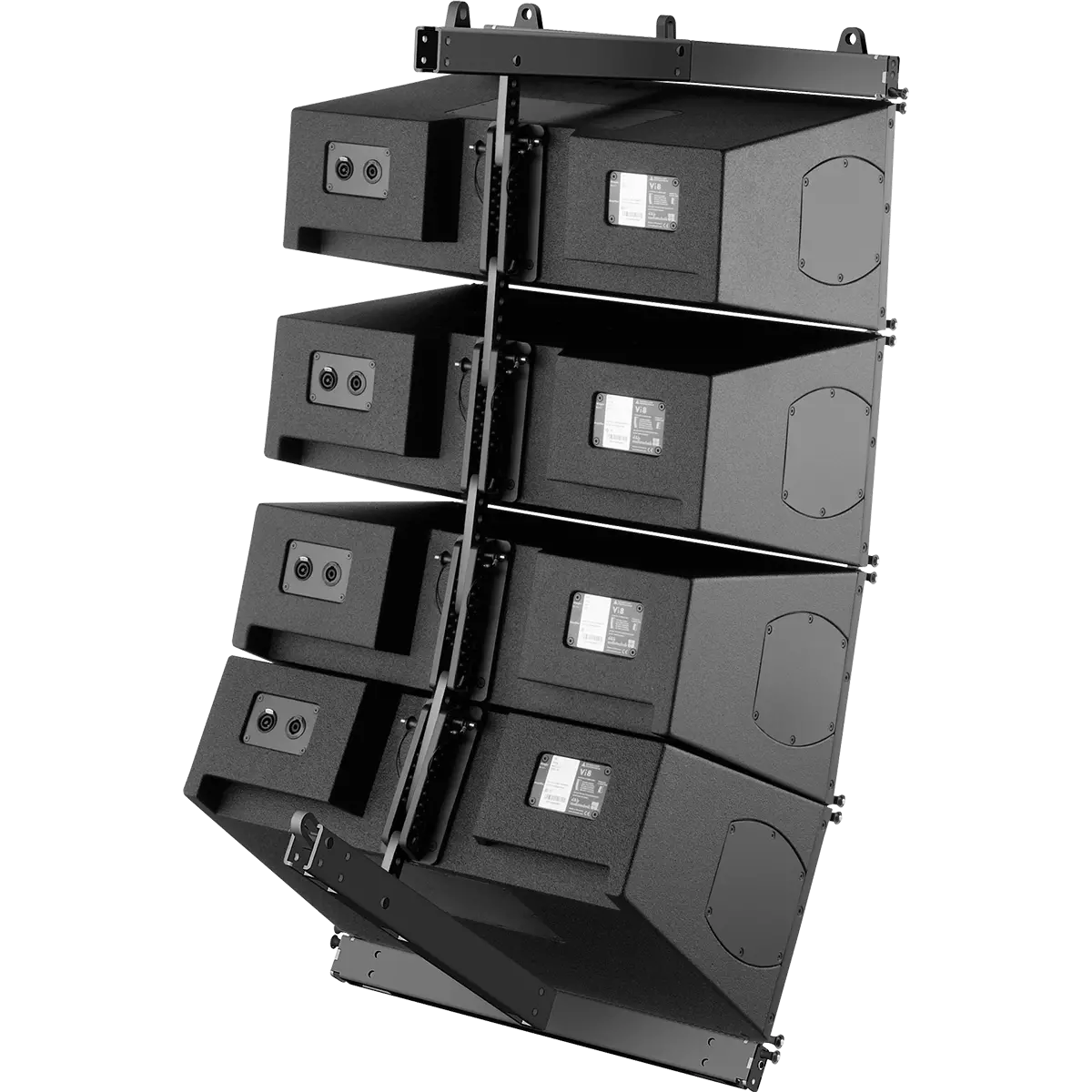

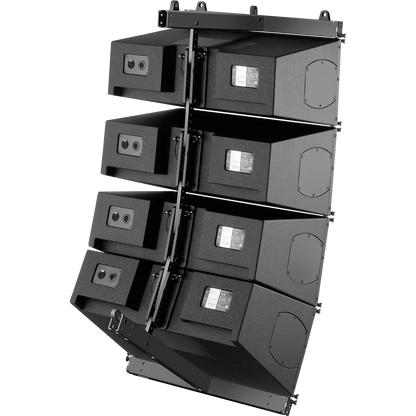

The Vi8's design supports flown vertical arrays of up to twenty-four loudspeakers and can be used alone or alongside Vi12 loudspeakers and Vi-SUBs.

This is the install specific of the d&b audiotechnik V8 Loudspeaker.

Features:

• Components 2 x 10"/1 x 8"/2 x 1.4"
• Dispersion 80°
• SPLmax 142 dB
• Weight 34 kg / 75 lb
