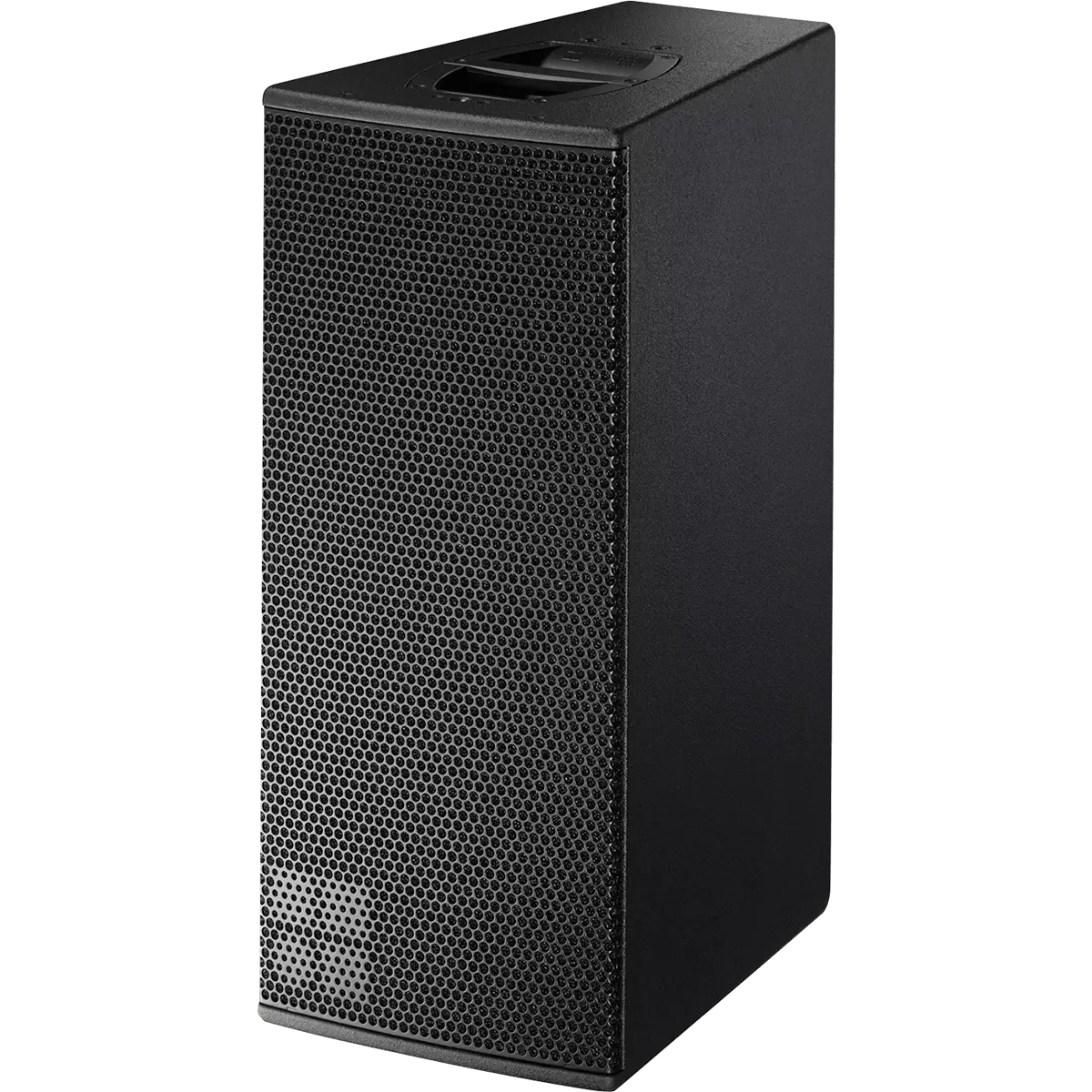

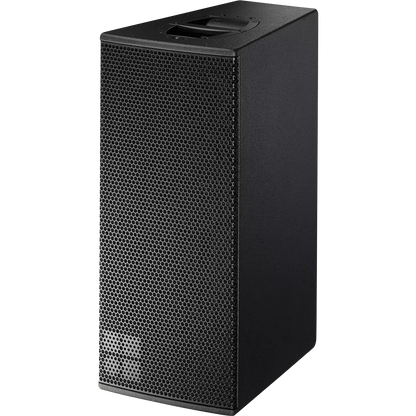

d&b audiotechnik V7P Loudspeaker

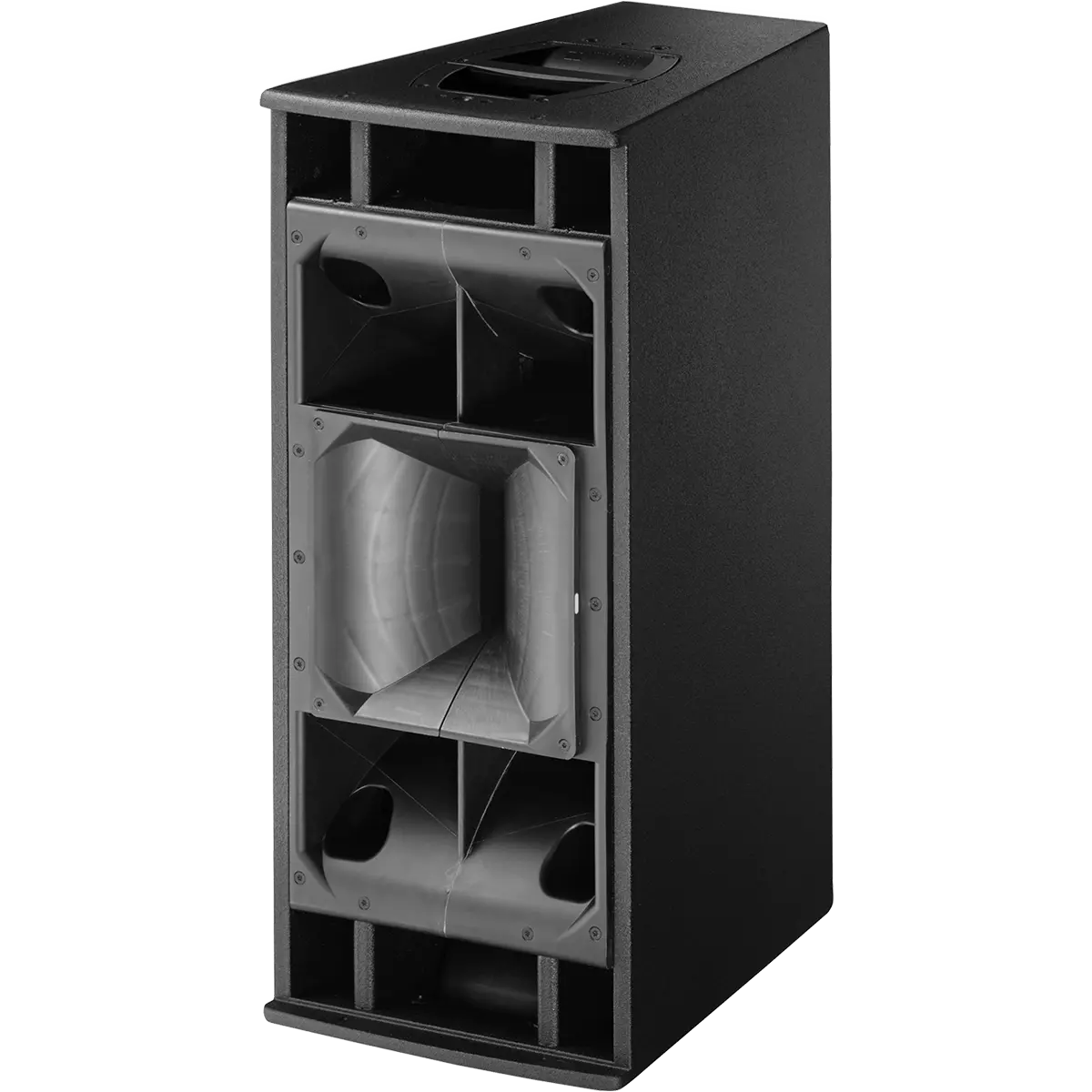

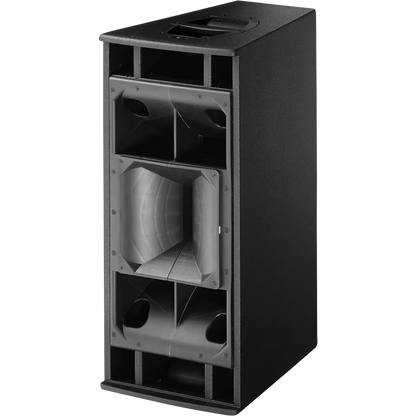

The V7P is a 3-way passive loudspeaker featuring two 10" drivers in a dipole arrangement with a horn-loaded 8" MF driver and a 1.4" compression driver on a rotatable CD horn.

The loudspeaker provides broadband dispersion control down to approximately 350 Hz within the dipole plane.

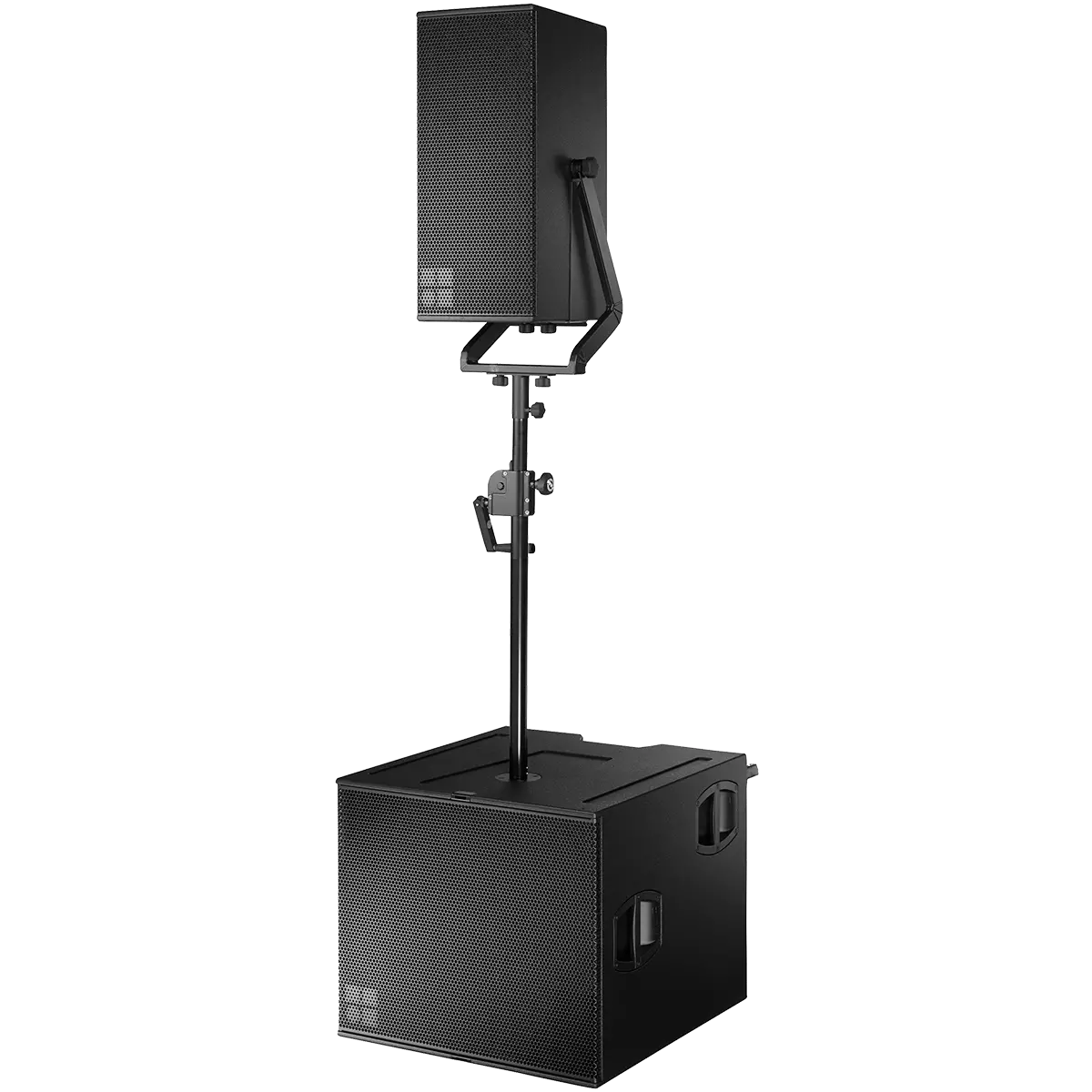

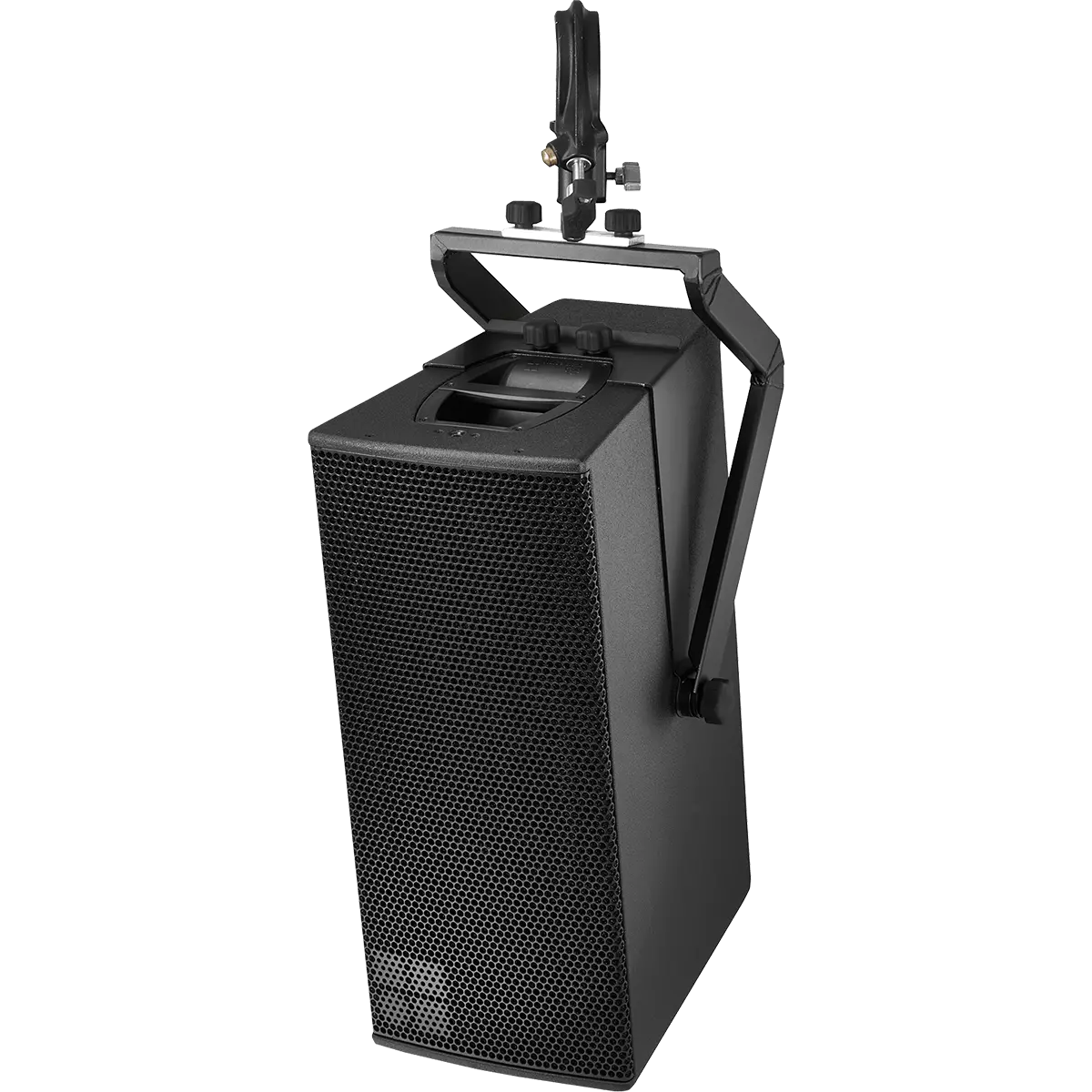

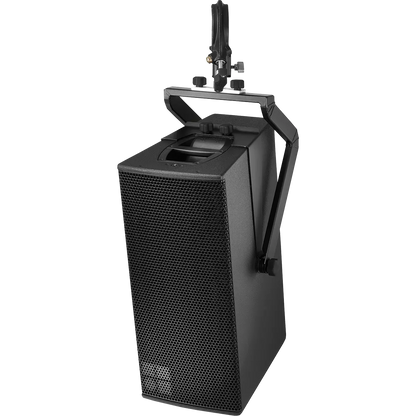

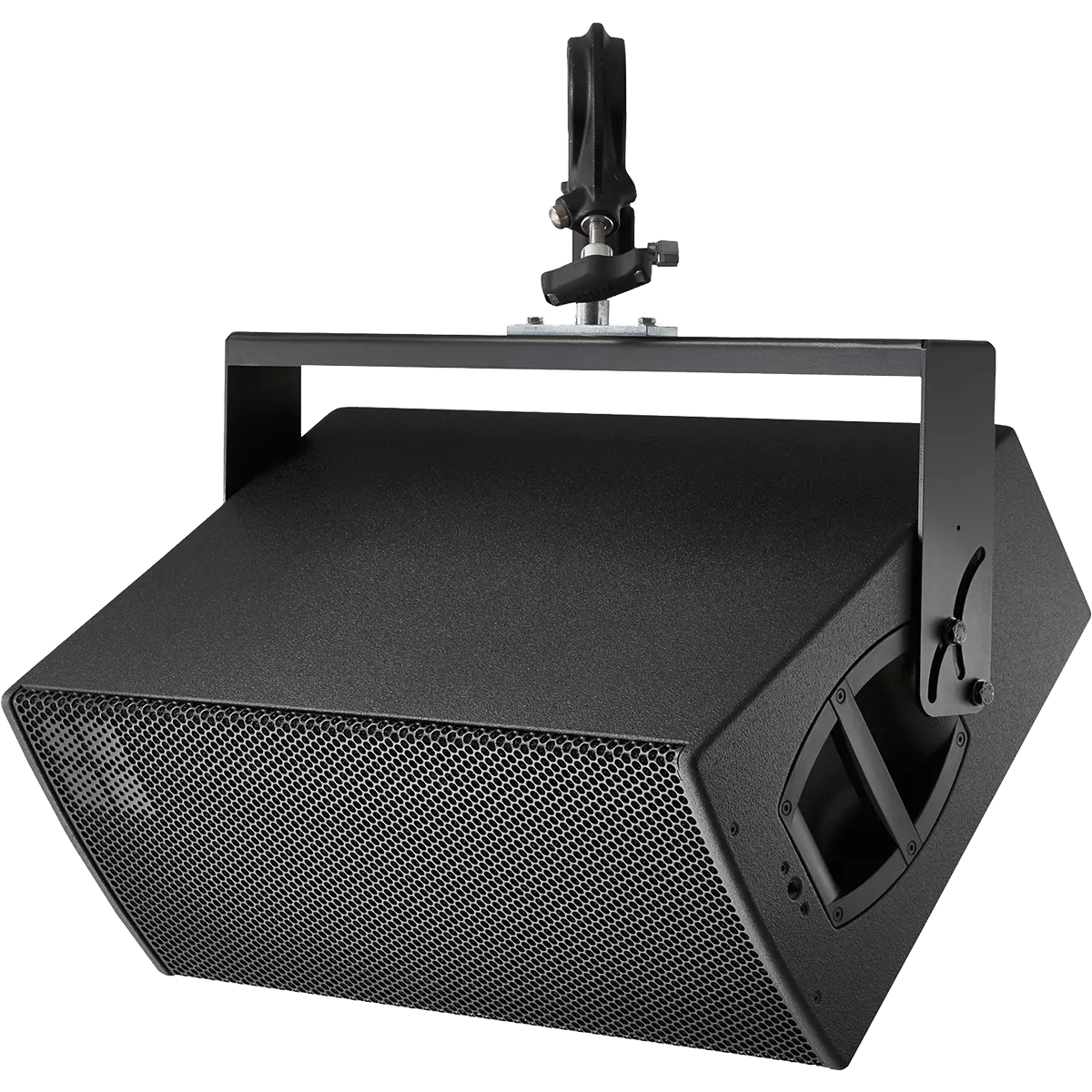

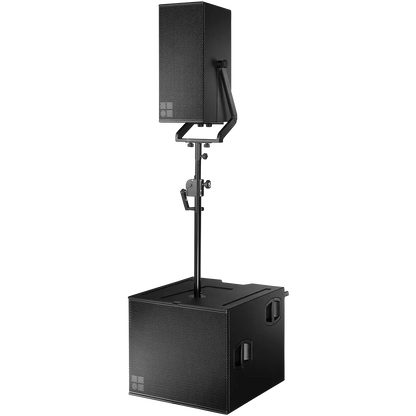

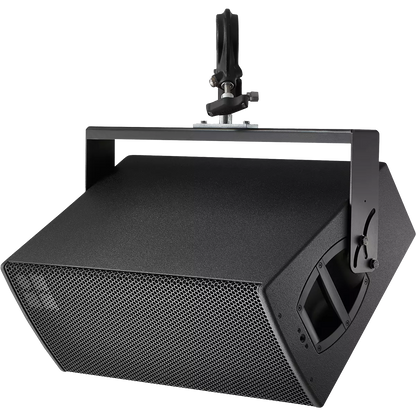

The V7P delivers a 75° horizontal and 40° vertical coverage pattern, and the rotatable horn can be rotated 90° to enable horizontal orientation. Also, the V7P is suitable for ground stacking, flying, or standalone use.

The V7P is available with NL4 Speakon Connection or NLT4 F/M Connections.

Features:

• Components 2 x 10"/8"/1.4"
• Dispersion 75° x 40°
• SPLmax 140 dB
• Weight 33 kg / 75 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 59 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 100 Hz - 18 kHz
  • Max. sound pressure:
    • with D20/30D: 137 dB
    • with D40/D80/40D: 140 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: High performance 3-way passive point source loudspeaker
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 500/2000 W
  • Nominal dispersion angle (h x v): 75° x 40°
  • Components:
    • 2 x 10" LF driver with neodymium magnet
    • 1 x 8" MF driver with neodymium magnet
    • 1 x 1.4” exit compression driver
    • Passive crossover network
  • Connections: 2 x NL4 M
• Dimensions / weight:
  • Dimensions (H x W x D): 700 x 308 x 466 mm (27.5 x 12 x 18.3")
  • Weight: 33 kg (75 lb)
