d&b audiotechnik V12 Loudspeaker

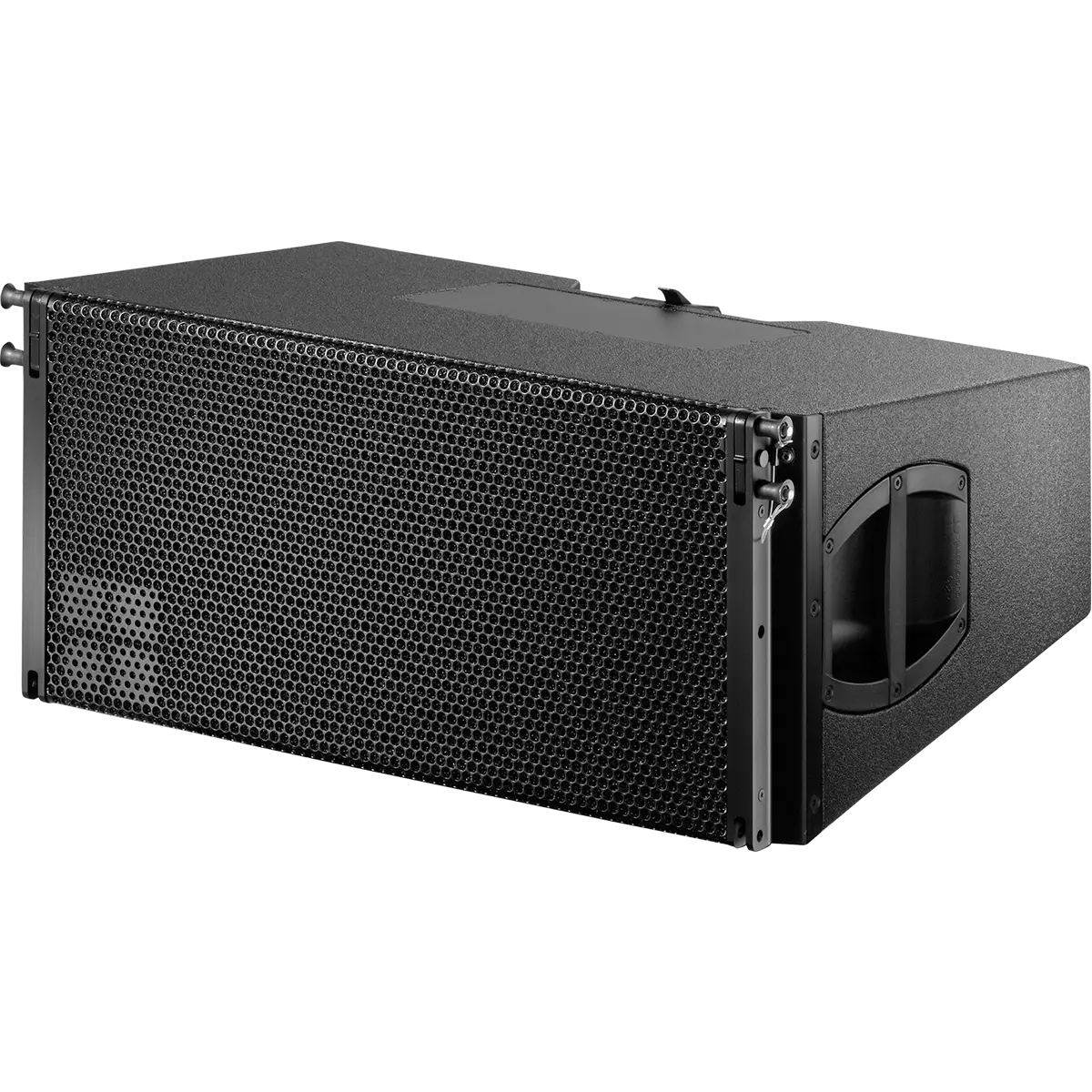

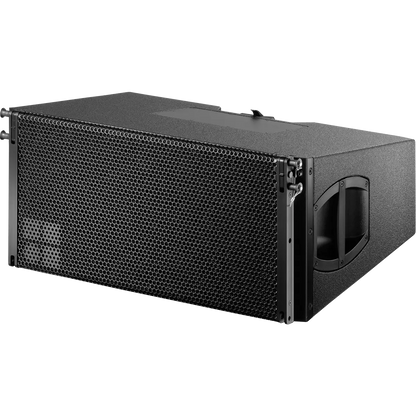

The V12 features a 3-way passive design, housing two 10" LF drivers, a horn-loaded 8" MF driver, and dual 1.4" HF compression drivers with 2.5" voice coils mounted on a dedicated waveshaping device. Its driver arrangement ensures consistent 120° horizontal directivity down to 250 Hz.

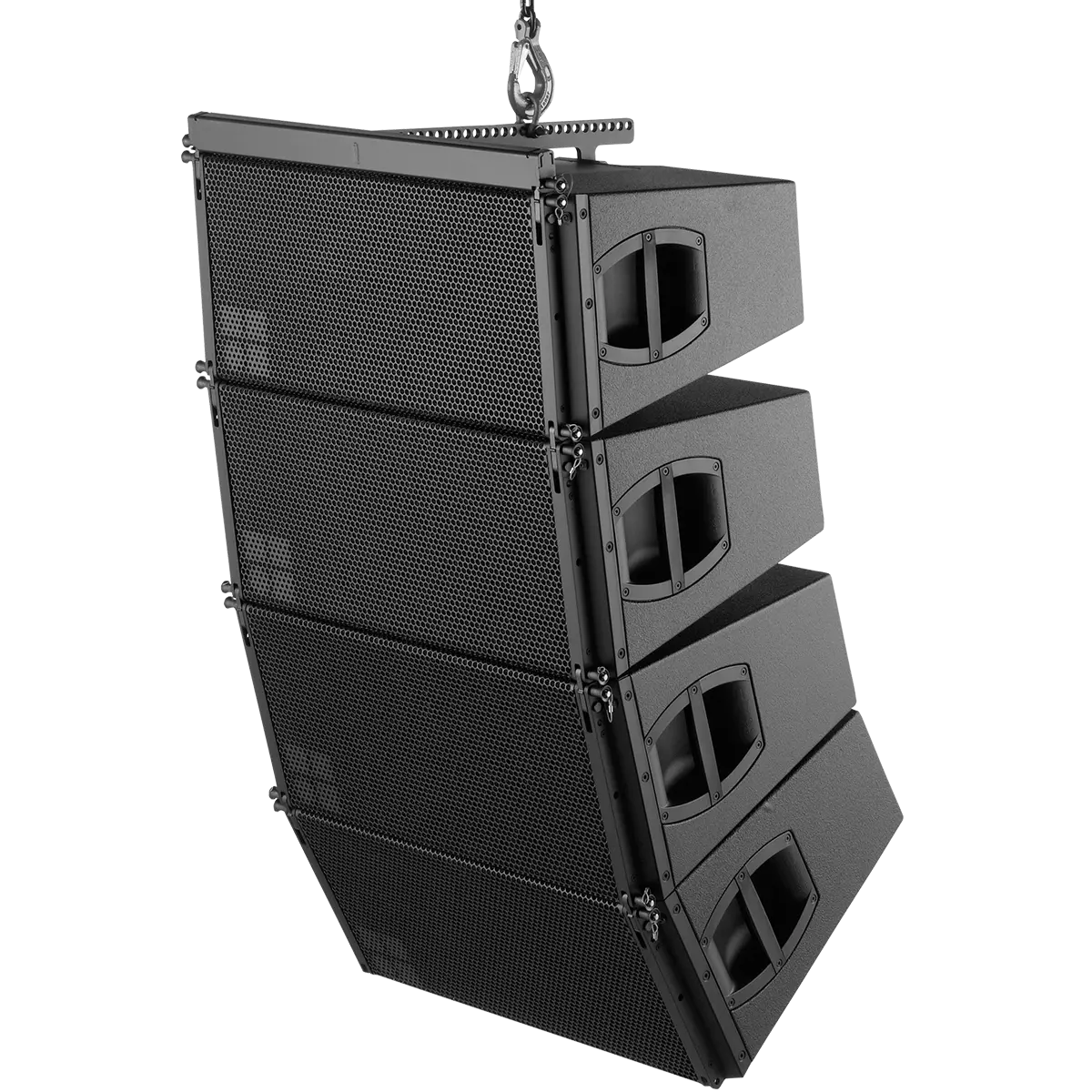

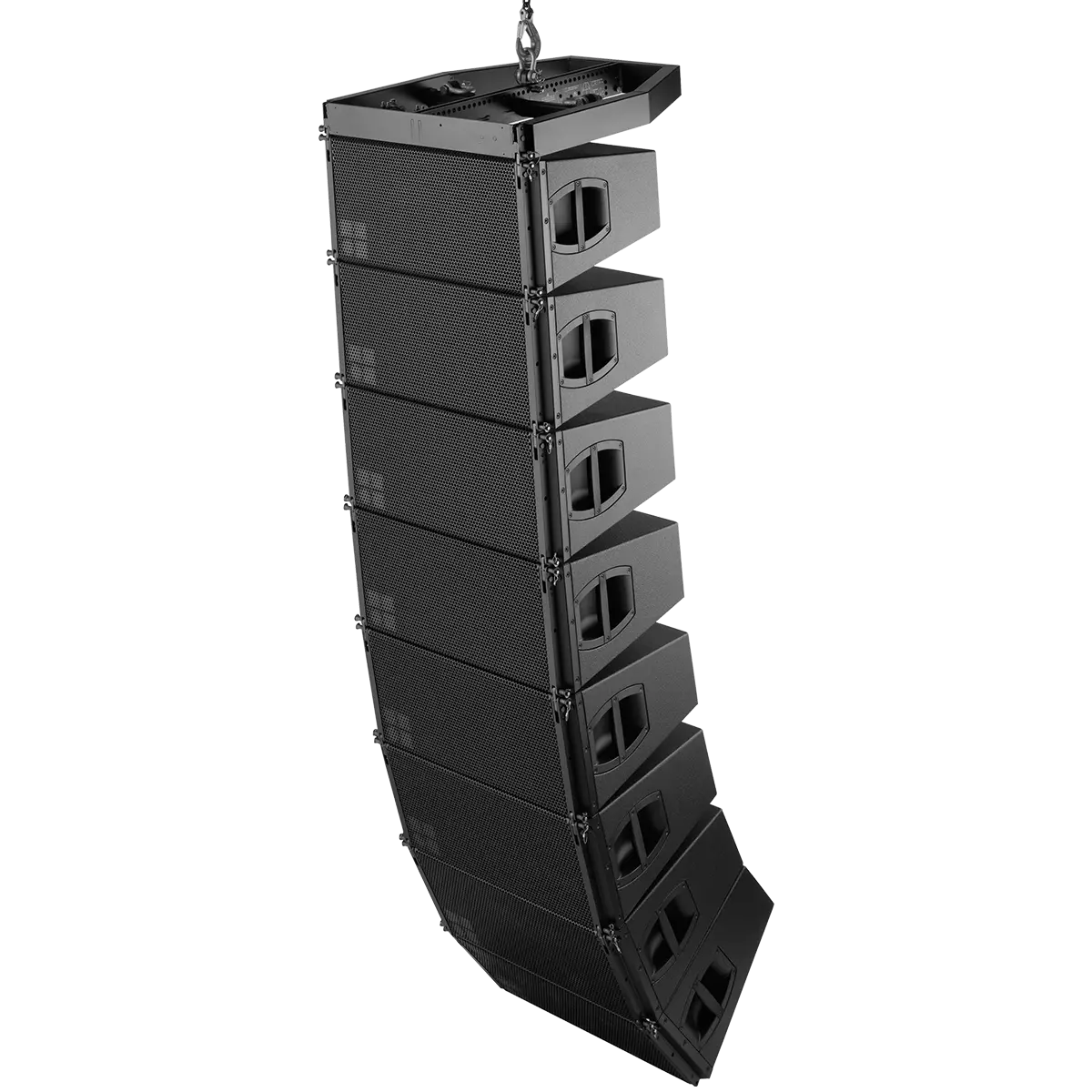

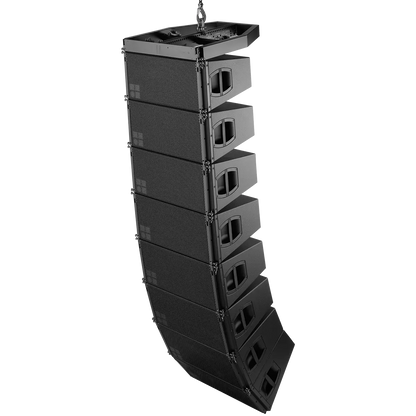

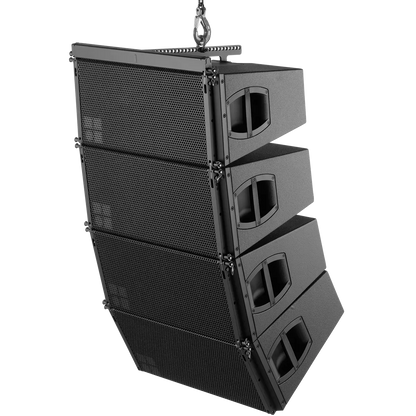

The V12 is designed for flown vertical arrays of up to 24 units, and can be used alone or combined with V8 loudspeakers and V-SUBs.

The V12 is available with NL4 Connections and NLT4 F/M Connections.

Features:

• Components 2 x 10"/1 x 8"/2 x 1.4"
• Dispersion 120°
• SPLmax 142 dB
• Weight 34 kg / 75 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 67 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 100 Hz - 18 kHz
  • Max. sound pressure:
    • with D20/30D: 139 dB
    • with D40/D80/40D: 142 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: High performance 3-way passive line array loudspeaker
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 500/2000 W
  • Nominal dispersion angle (horizontal): 120°
  • Splay angle settings: 0° - 14° (1° increment)
  • Components:
    • 2 x 10" driver / 1 x 8" driver
    • 2 x 1.4" exit compression driver
    • passive crossover network
  • Connections: 2 x NLT4 F/M
• Dimensions / weight:
  • Dimensions (H x W x D): 310 x 700 x 460 mm (12.2 x 27.5 x 18")
  • Weight: 34 kg (75 lb)
