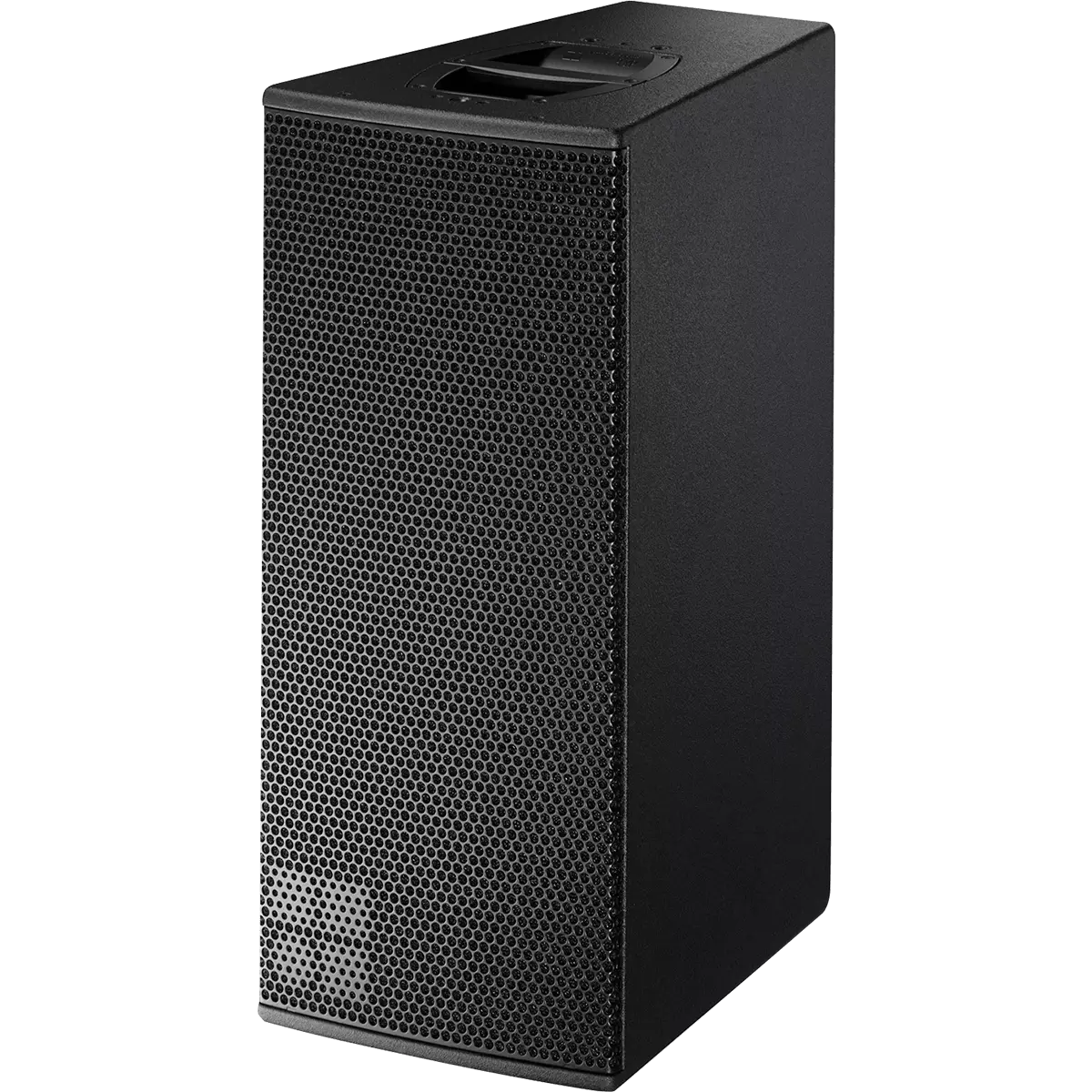

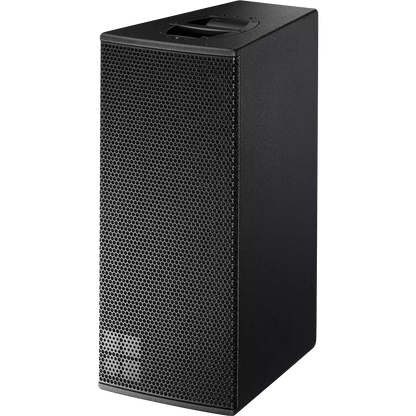

d&b audiotechnik V10P Loudspeaker

The V10P is a 3-way passive loudspeaker featuring two 10" drivers in a dipole arrangement with a horn-loaded 8" MF driver and a 1.4" compression driver on a rotatable CD horn.

The loudspeaker provides broadband dispersion control down to approximately 350 Hz within the dipole plane.

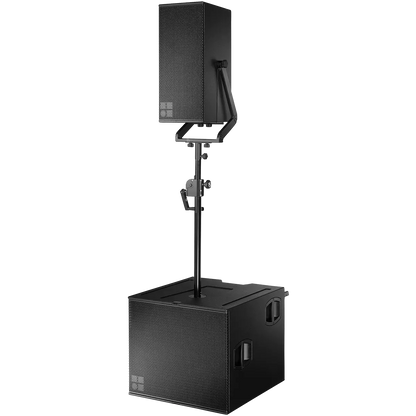

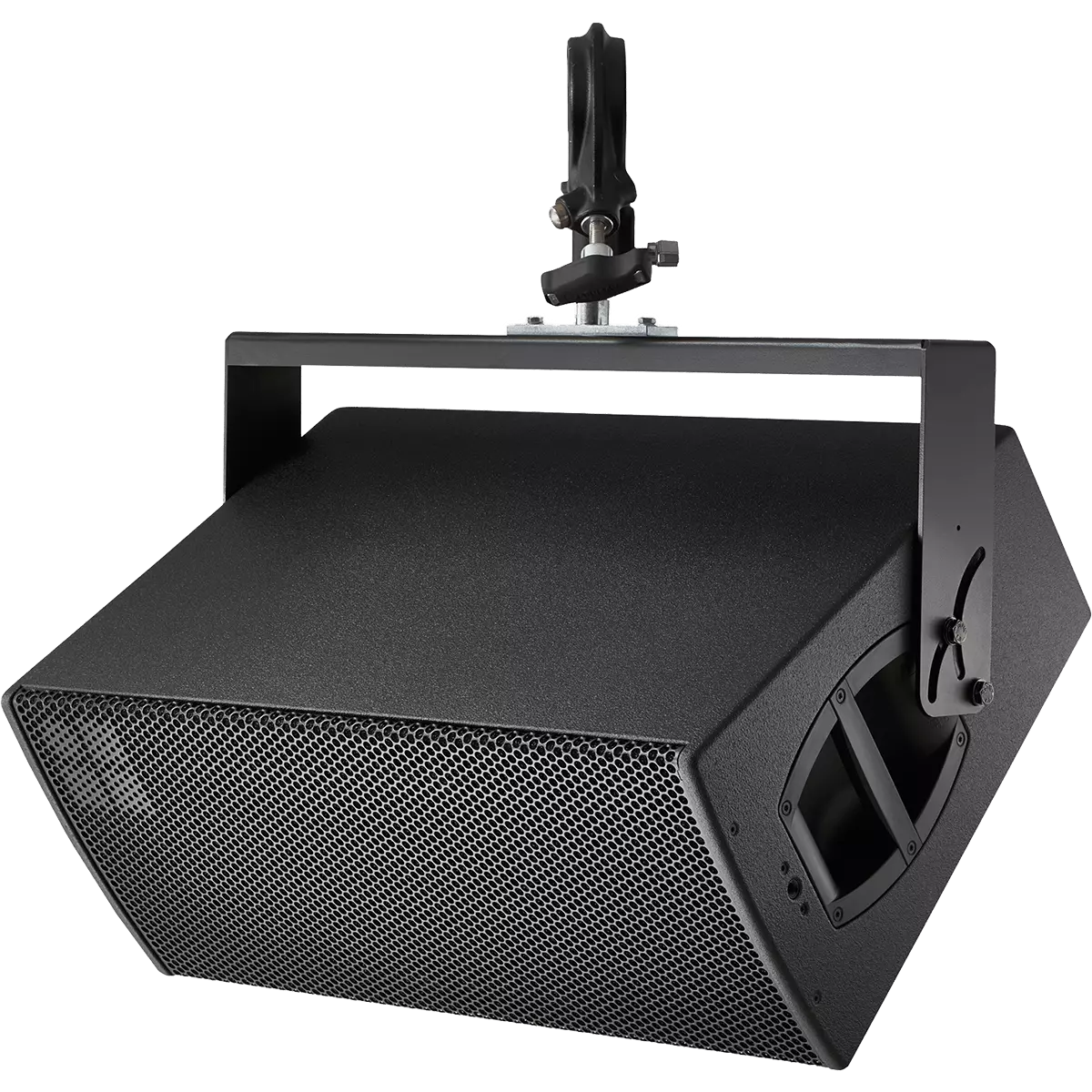

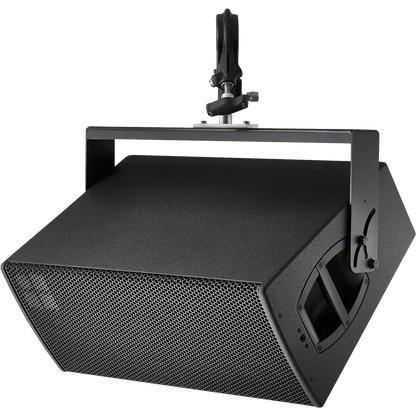

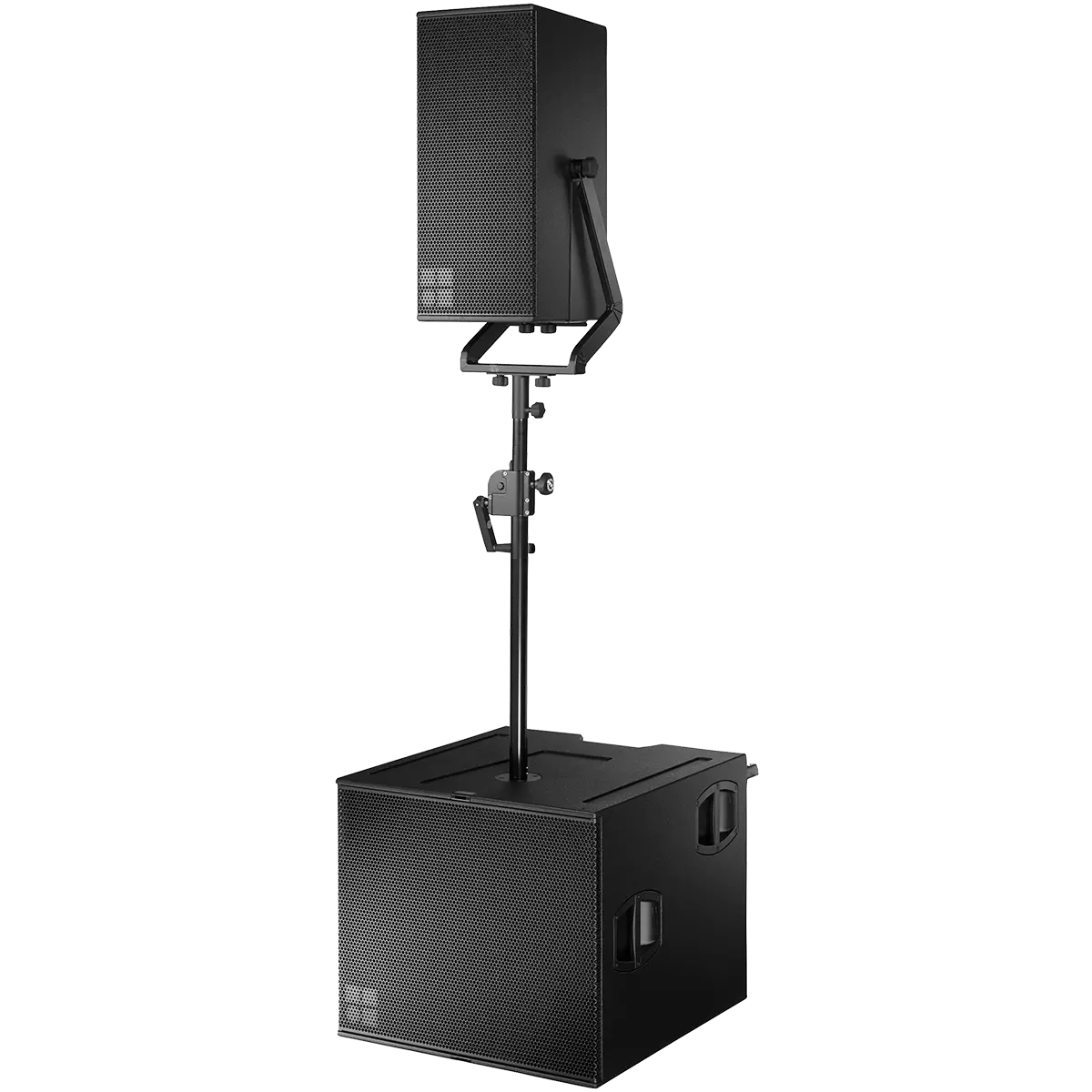

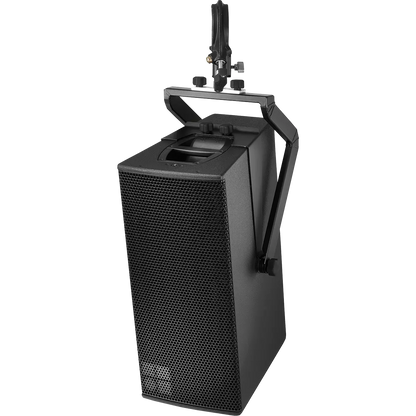

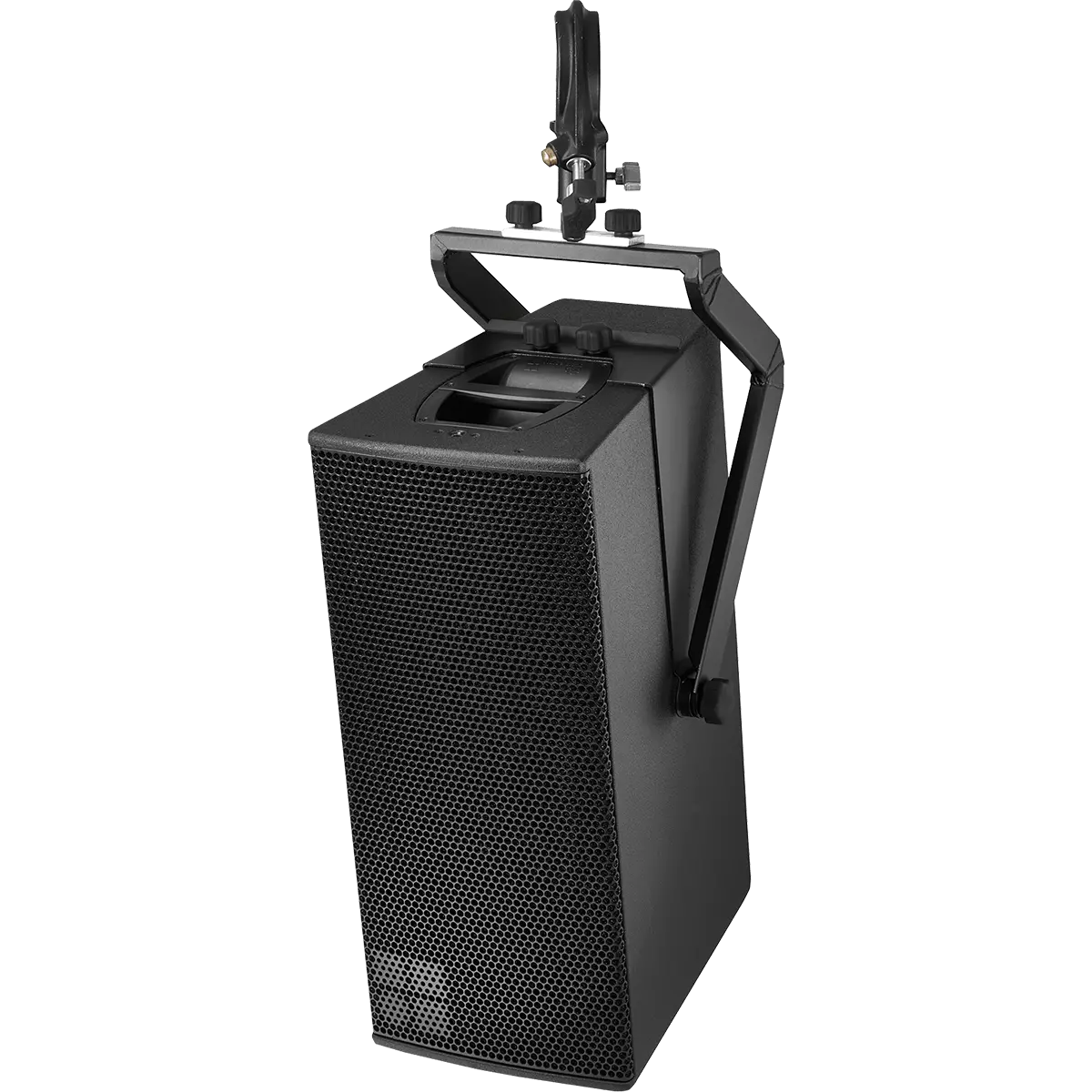

The V10P delivers a 110° horizontal and 40° vertical coverage pattern, and the rotatable horn can be rotated 90° to enable horizontal orientation. Also, the V10P is suitable for ground stacking, flying, or standalone use.

The V10P is available with NL4 Speakon Connection or NLT4 F/M Connections.

Features:

• High performance point source loudspeaker
• Compact and powerful performance in a single box
• 3-way passive design with 2 x 10" LF drivers, 1 x horn loaded 8" MF driver and 1 x 1.4" exit HF driver on a rotatable CD horn
• Extended LF performance from large cabinet volume and port design
• Extended MF performance from high sensitivity mid range horn
• Vi10P installation specific cabinet option
• Outstanding performance/size ratio (SPL) for applications, where smaller line arrays are not first choice
• Impressive throw and even tonality at longer distances
• Highest SPL at lowest distortion

Specifications:

• • System data:
    • Frequency response (–5 dB standard): 59 Hz - 18 kHz
    • Frequency response (–5 dB CUT mode): 100 Hz - 18 kHz
    • Max. sound pressure (1 m, free field)1:
      • with 30D/D20: 136 dB
      • with D80: 139 dB
  • Loudspeaker data:
    • Nominal impedance: 8 ohms
    • Power handling capacity (RMS/peak 10 ms): 500/2000 W
    • Nominal dispersion angle (h x v): 110° x 40°
    • Components:
      • 2 x 10" driver with neodymium magnet
      • 1 x 8" driver with neodymium magnet
      • 1 x 1.4" exit compression driver
      • passive crossover network
    • Connections:
      • 2 x NLT4 F/M
      • optional 2 x NL4 or 2 x EP5
    • Weight: 33 kg (75 lb)
