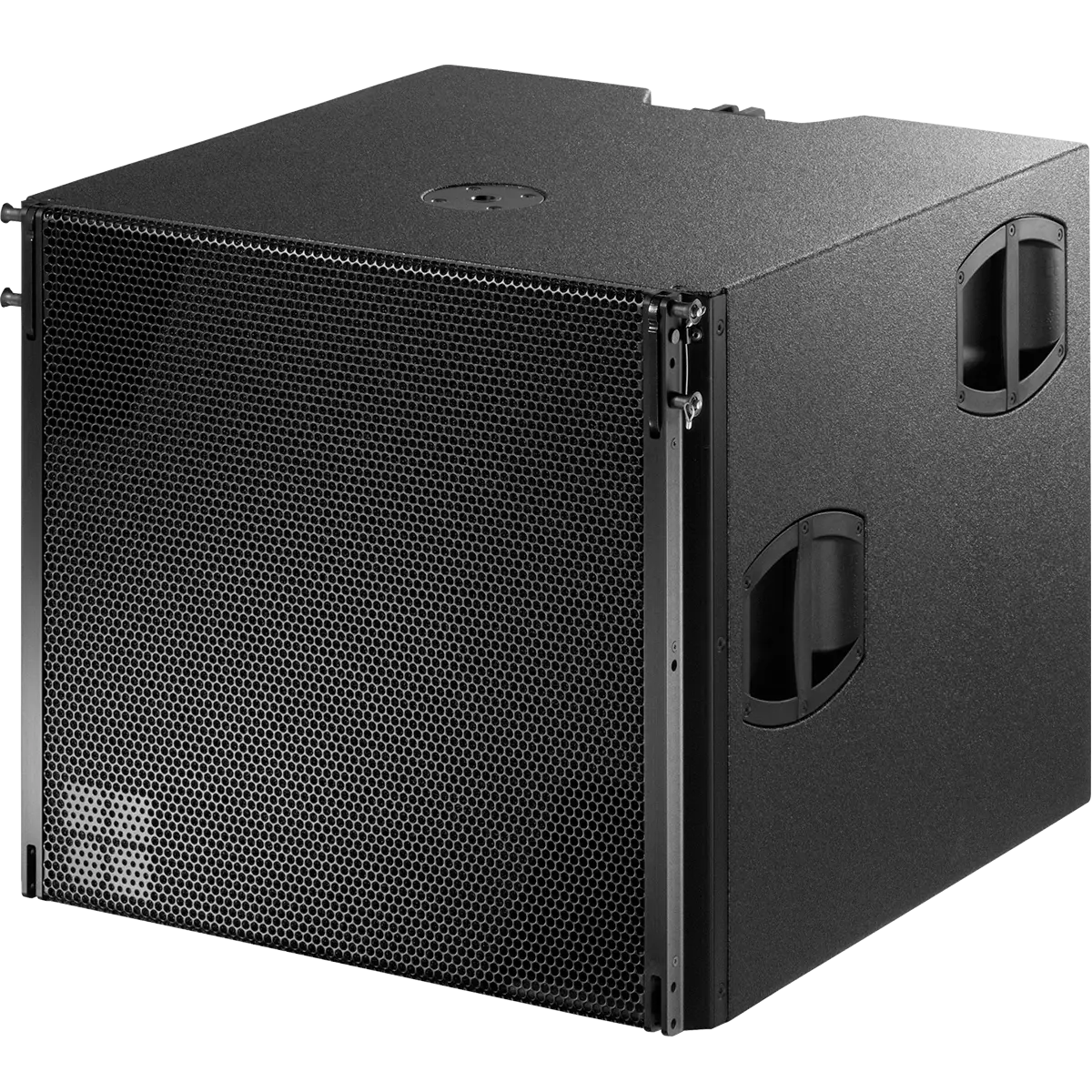

d&b audiotechnik V Subwoofer High Performance Flyable Cardioid Subwoofer
The V-Sub is a high-performance cardioid subwoofer driven by a single amplifier channel. It features two long-excursion neodymium drivers: an 18" bass-reflex driver projecting forward, and a 12" driver in a two-chamber bandpass design radiating to the rear.

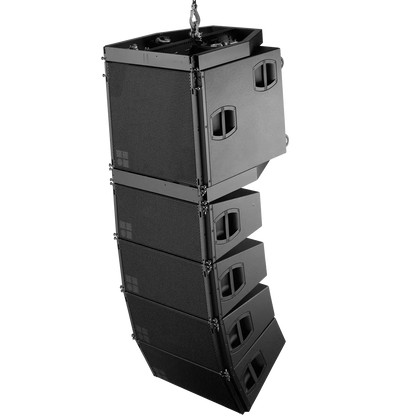

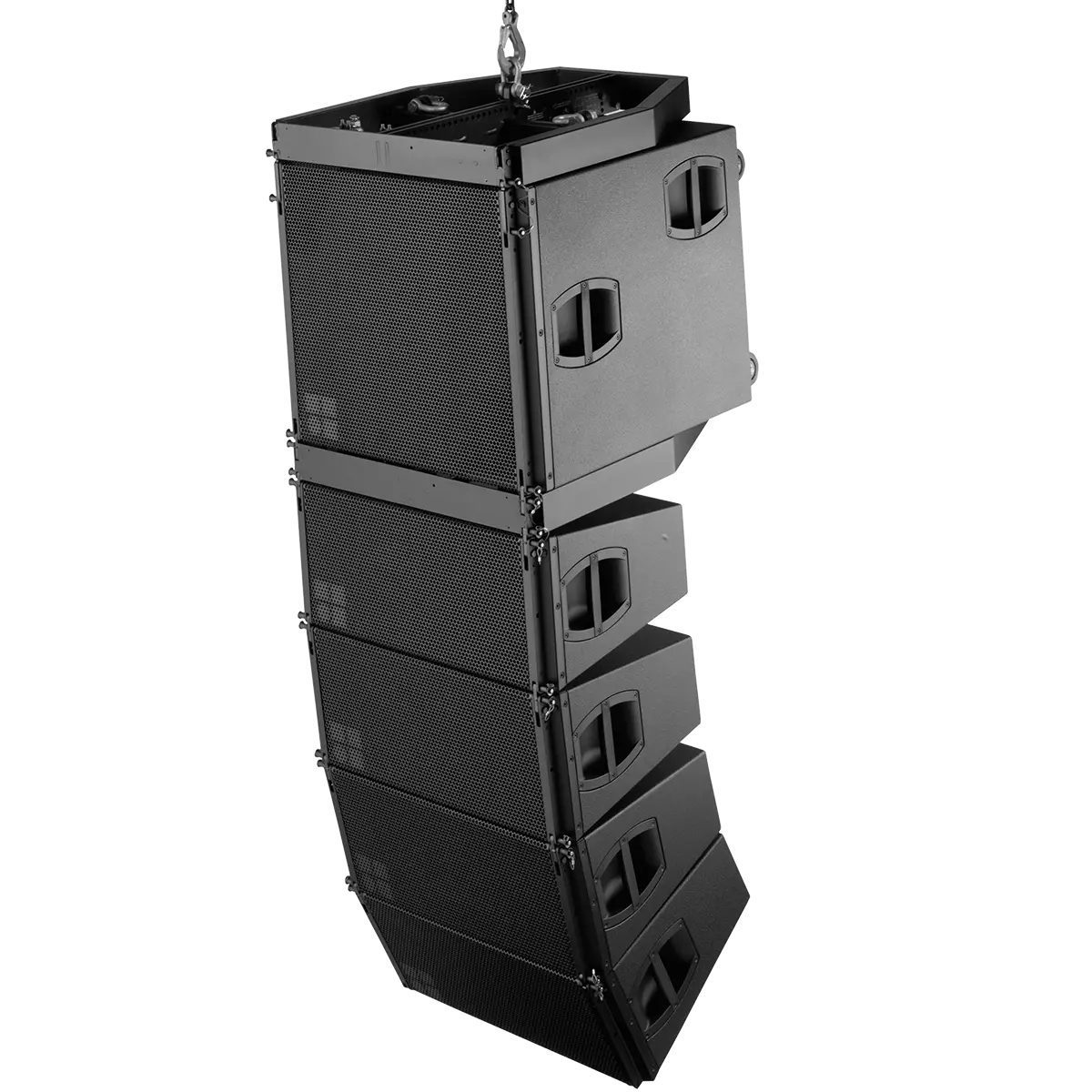

The V-Sub features integrated rigging equipment and can used to supplement V8 and V12 loudspeakers either flown, ground stacked or integrated on top of a V8 / V12 array.
The V-Sub is available with NL4 Speakon Connection or NLT4 F/M Connections.
Features:
- Components 18"/12"
- Dispersion Cardioid
- SPLmax 137 dB
- Weight 64 kg / 141 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 37 - 115 Hz
- Frequency response (-5 dB 100 Hz mode): 37 - 95 Hz
- Max. sound pressure:
- with D20/30D: 133 dB
- with D40/D80/40D2: 137 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: High performance flyable cardioid subwoofer
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 800/3200 W
- Splay angle settings: 0° and 2.5°
- Components:
- 1 x 18" driver
- 1 x 12" driver
- Connections: 2 x NLT4 F/M
- Dimensions / weight:
- Dimensions (H x W x D): 606 x 700 x 7283 / 830 mm (23.8 x 27.5 x 28.63 / 32.6")
- Weight: 64 kg (141 lb)
