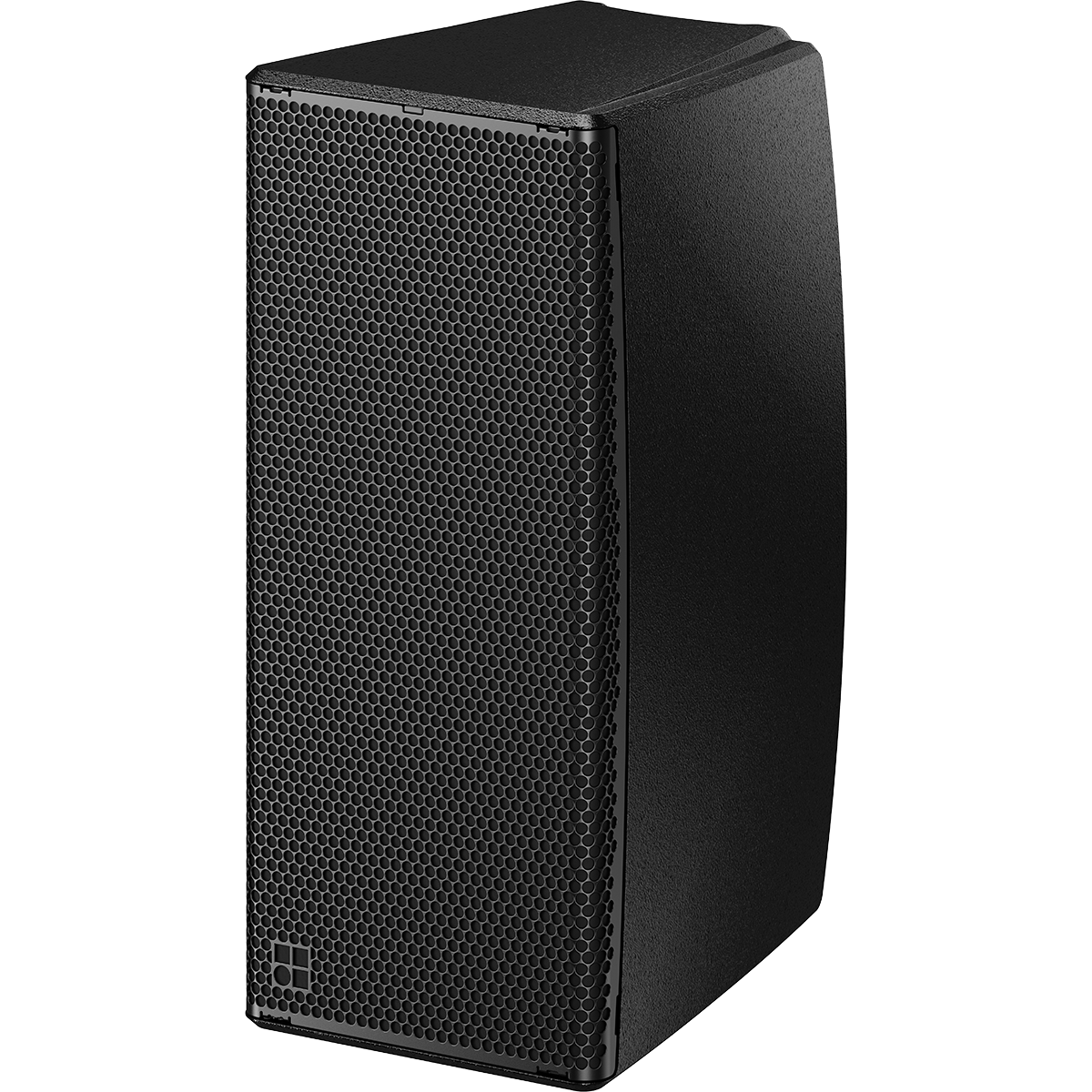

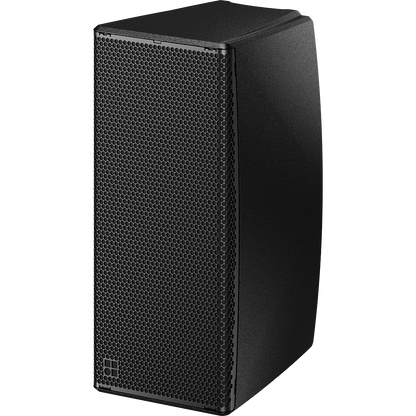

d&b audiotechnik U5 Loudspeaker Compact 2-way Passive Loudspeaker

The d&b audiotechnik U5 delivers performance in a compact, versatile package.

It features dual 6.5" bipole drivers paired with a 1" compression driver mounted on a tool-free, 90° × 60° rotatable horn.

This loudspeaker uses advanced horn geometry and bass‑reflex ports to extend LF response to 55 Hz (−5 dB), while maintaining 60° vertical directivity from 500 Hz and consistent 90° horizontal dispersion.

Features:

• Components 2 x 6.5" / 1"
• Dispersion 90° x 60° rotatable
• SPLmax 133 dB
• Weight 11.5 kg / 25.4 lb

Specifications:

• Frequency response (-5 dB standard): 58 Hz - 17 kHz
• Frequency response (-5 dB CUT mode): 105 Hz - 17 kHz
• Frequency response (-10 dB standard, IEC60268): 52 Hz - 18 kHz
• Frequency response (-10 dB CUT mode, IEC60268): 75 Hz - 18 kHz
• Max. sound pressure
• with D90/D80/D40/D25/D20: 133 dB
• with 5D/25D/30D/40D: 133 dB
• with 10D: 130 dB
• Cabinets per amplifier channel: 2
• Nominal impedance: 8 ohms
• Power handling capacity (RMS/peak 10 ms): 200/700 W
• Nominal dispersion angle (h x v): 90° x 60°
• Components: 2 x6.5" driver with neodymium magnet, 1 x1" exit HF compression driver with 1.7" coil, Rotatable CD horn. Passive crossover network

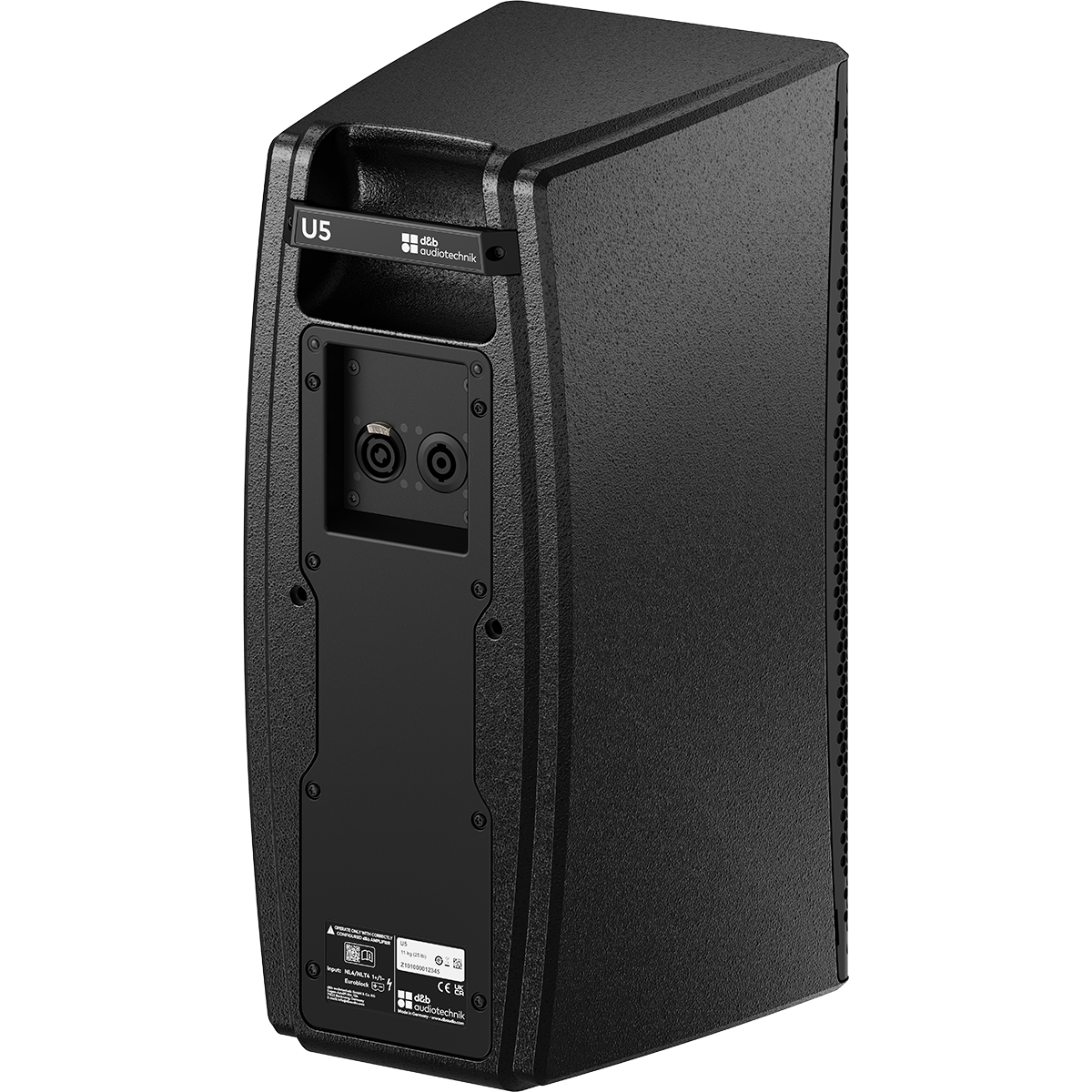

• Connections: NL4 M and 2-pin Euroblock in parallel, Additional option: NLT4 F/M
• Dimensions (h x w x d): 20 x 8.8 x 11.6", 509 x 223 x 295 mm
• Weight: 25.4 lb, 11.5 kg
