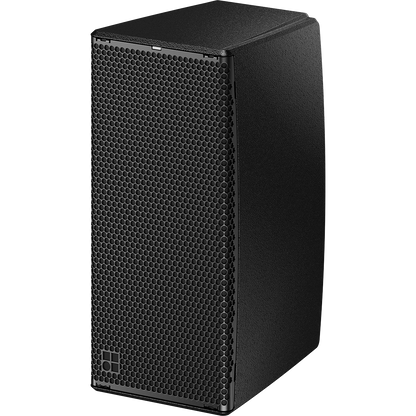

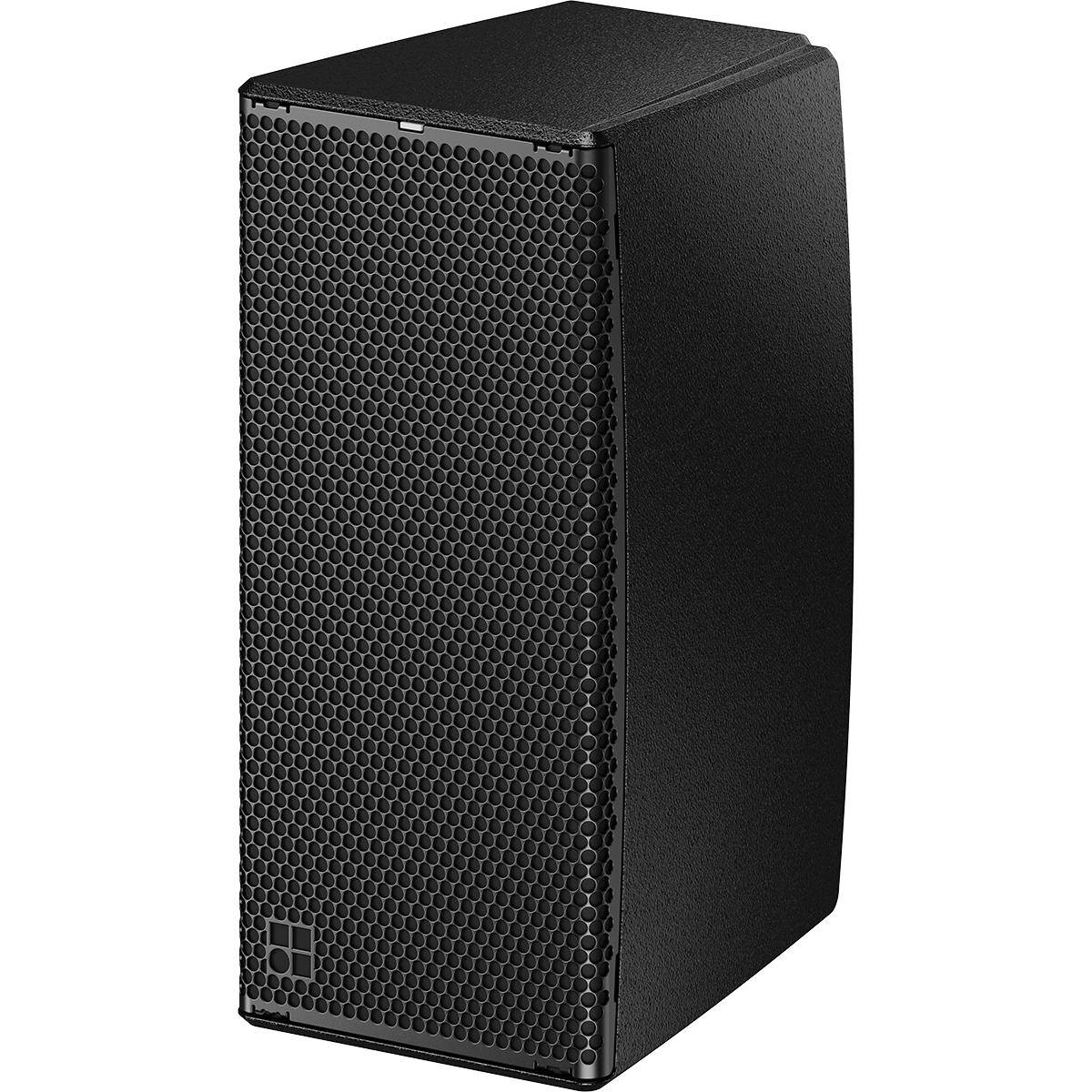

d&b audiotechnik U3N Loudspeaker Compact 2-way Networked Loudspeaker
The d&b audiotechnik U3N is a 2-way point-source loudspeaker featuring dual 5" bipole drivers paired with a 0.75" compression driver mounted on a patent-pending 100° × 65° rotatable horn.
This loudspeaker uses advanced horn geometry and bass-reflex ports to extend low-frequency response to 55 Hz, while maintaining 65° vertical directivity from 500 Hz and consistent 100° horizontal dispersion.
The loudspeaker features a hybrid power topology, running on AC, PoE++, or both simultaneously, with single‑cable operation carrying power, signal, control, and monitoring, while dual‑cable redundancy (2× PoE++ + 2× Milan) supports mission‑critical installations and ensures compatibility with the DN2 Milan PoE++ switch or equivalent third‑party PoE++ hardware.
The U3N is built from partially recycled ABS with IP54 rating, metal grille, and acoustic foam protection, equipped with integrated handle, M8 rigging points, and flexible mounting options.
Features:
- Components 2 x 5" / 0.75"
- Dispersion 100° x 65° rotatable
- SPLmax 128 dB
-
Weight 7.5 kg / 16.5 lb
Specifications:
- Frequency response (-5 dB standard): 61 Hz - 18 kHz
- Frequency response (-5 dB CUT mode): 105 Hz - 18 kHz
- Frequency response (-10 dB standard, IEC60268): 52 Hz - 19 kHz
- Frequency response (-10 dB CUT mode, IEC60268): 80 Hz - 19 kHz
- Max. sound pressure: 128 dB
- Nominal dispersion angle (h x v): 100° x 65°
- Components: 2 x 5°driver with neodymium magnet, 1 x 0.75° exit HF compression driver with 1.4" coil, Rotatable CD horn
- Equalizer: 2 user definable 16-band equalizer
- Latency analog input: 1.1 ms
- Frequency generator: Pink noise or sine wave 10 Hz to 20 kHz
- Delay: 1.1 ms to 1 sec.

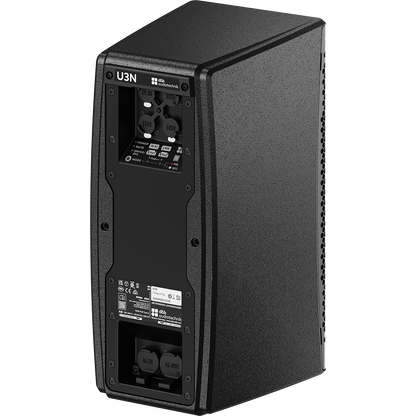

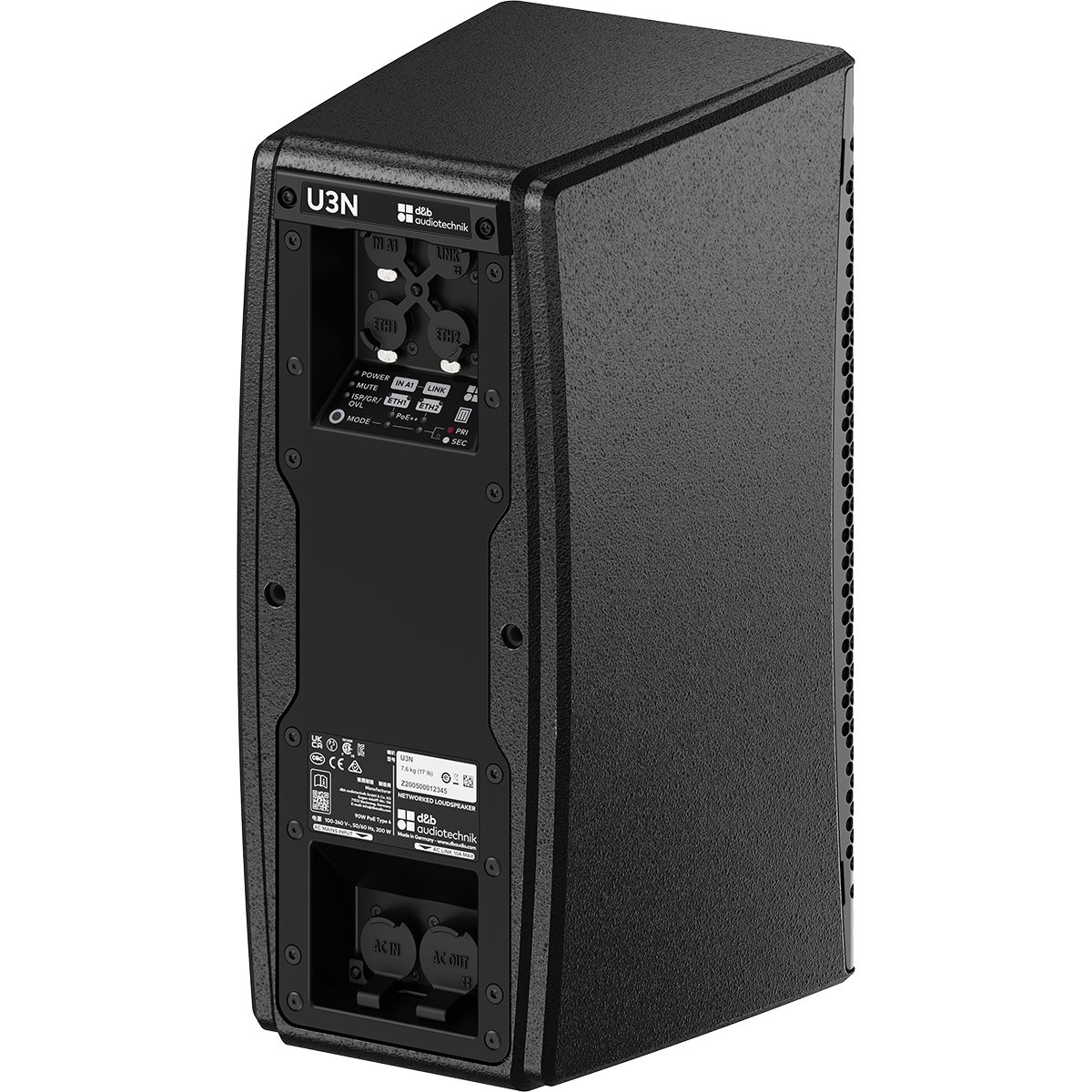

- INPUT ANALOG: 3 pin XLR female
- ANALOG LINK: 3 pin XLR male, parallel to input
- MILAN INPUT: 1 stream with up to 8 channels @ 48/96 kHz
- Network Connection: 2 x RJ 45 (etherCON)
- Network Switch: integrated 2-port, 100 Mbit/1 Gbit
- ETH1/PRI: Milan, Remote control via R1 star topology
- ETH2/SEC: Milan redundancy only, no remote control star topology
- Mains connector: powerCON TRUE1 TOP In and Thru
- Power supply: Switched mode power supply with automatic mains range selection and active Power Factor Correction (PFC).
- Rated mains voltage: 100 - 240 V, 50 - 60 Hz
- Dimensions (h x w x d): 16.2 x 7.4 x 9.6", 411 x 187 x 245 mm
- Weight 16.5 lb, 7.5 kg
