d&b audiotechnik T Compact Flyable Subwoofer
The d&b audiotechnik T Compact Flyable Subwoofer is a powerful 15" bass-reflex unit engineered to expand the low-frequency capabilities of the T10 loudspeaker system. Featuring a high-excursion driver and SenseDrive support when paired with a D12 amplifier, this subwoofer delivers extended bass performance for professional audio applications.

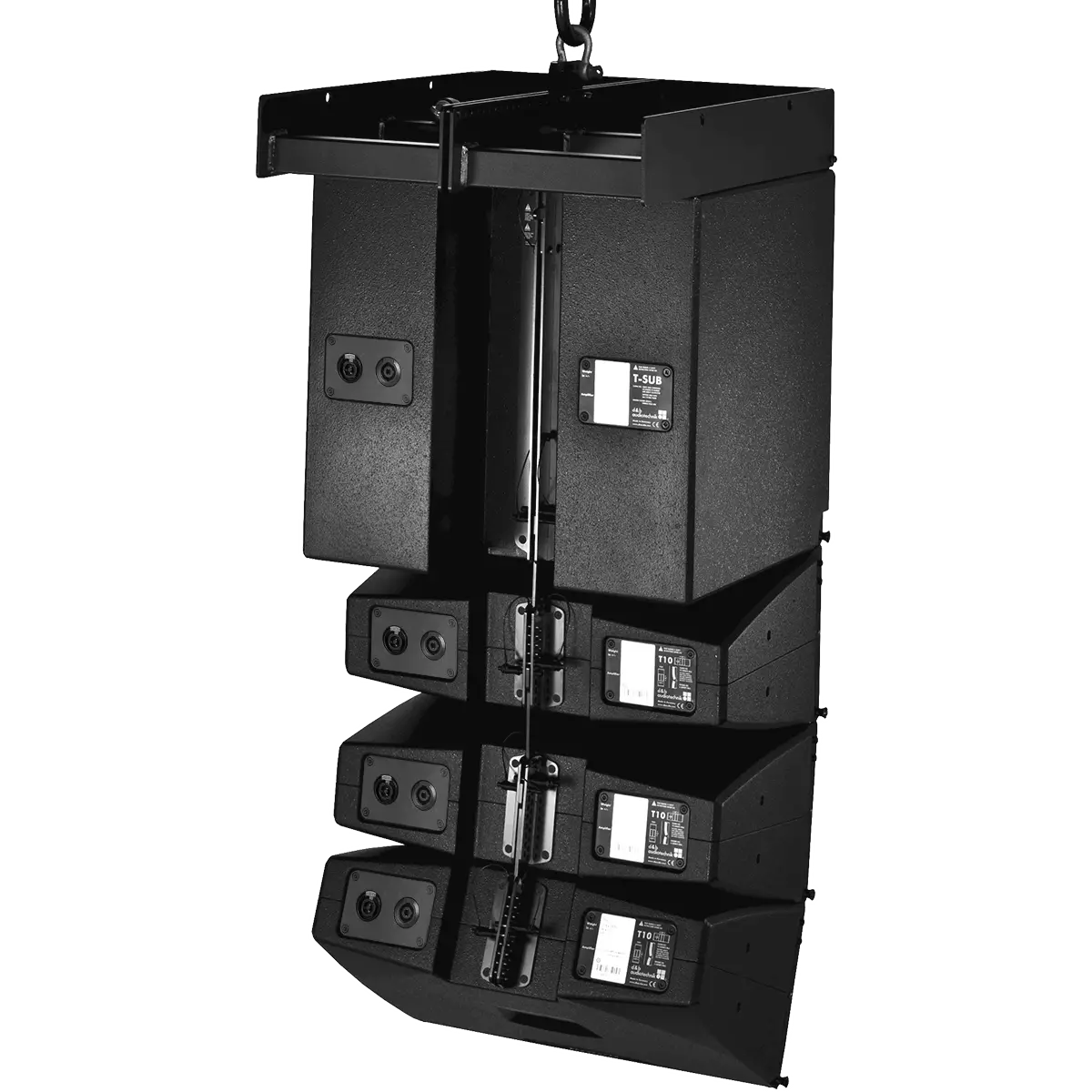

Its versatile deployment options include ground stacking or flying as part of a T10 array or as an independent sub column. Built-in rigging links on both sides and a central rear splay link ensure secure mechanical connections.
The rugged marine-plywood enclosure with impact-resistant finish, top-panel handle, and acoustically transparent foam-backed metal grille withstand demanding live sound and installation environments.
Features:
- Components 15"
- Dispersion Omni directional
- SPLmax 130 dB
- Weight 17 kg / 37 lb
Specifications:
System Data:
- Frequency Response (-5 dB Standard): 47 - 140 Hz
- Frequency Response (-5 dB 100 Hz Mode): 47 - 100 Hz
-
Max. sound pressure
with 10D: 127 dB
with D25/5D/25D: 130 dB
with D40/D80/D90/40D: 130 dB
- Cabinets per Amplifier Channel: 2
Loudspeaker Data:
System Data:
with 10D: 127 dB
with D25/5D/25D: 130 dB
with D40/D80/D90/40D: 130 dB
- Configuration: Compact flyable subwoofer
- Nominal Impedance: 8 Ω
- Power Handling Capacity (RMS/Peak 10 ms): 300/1600 W
- Components: 15" driver with neodymium magnet
- Connections: 2 x NLT4 F/M
optional 2 x NL4
Dimensions / Weight:
- Dimensions (h x w x d): 431 x 470 x 400 mm
17.0 x 18.5 x 15.8
- Weight: 17 kg
37 lb
Amplifiers:
17.0 x 18.5 x 15.8
37 lb
