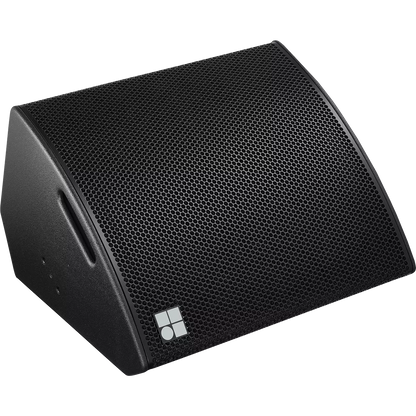

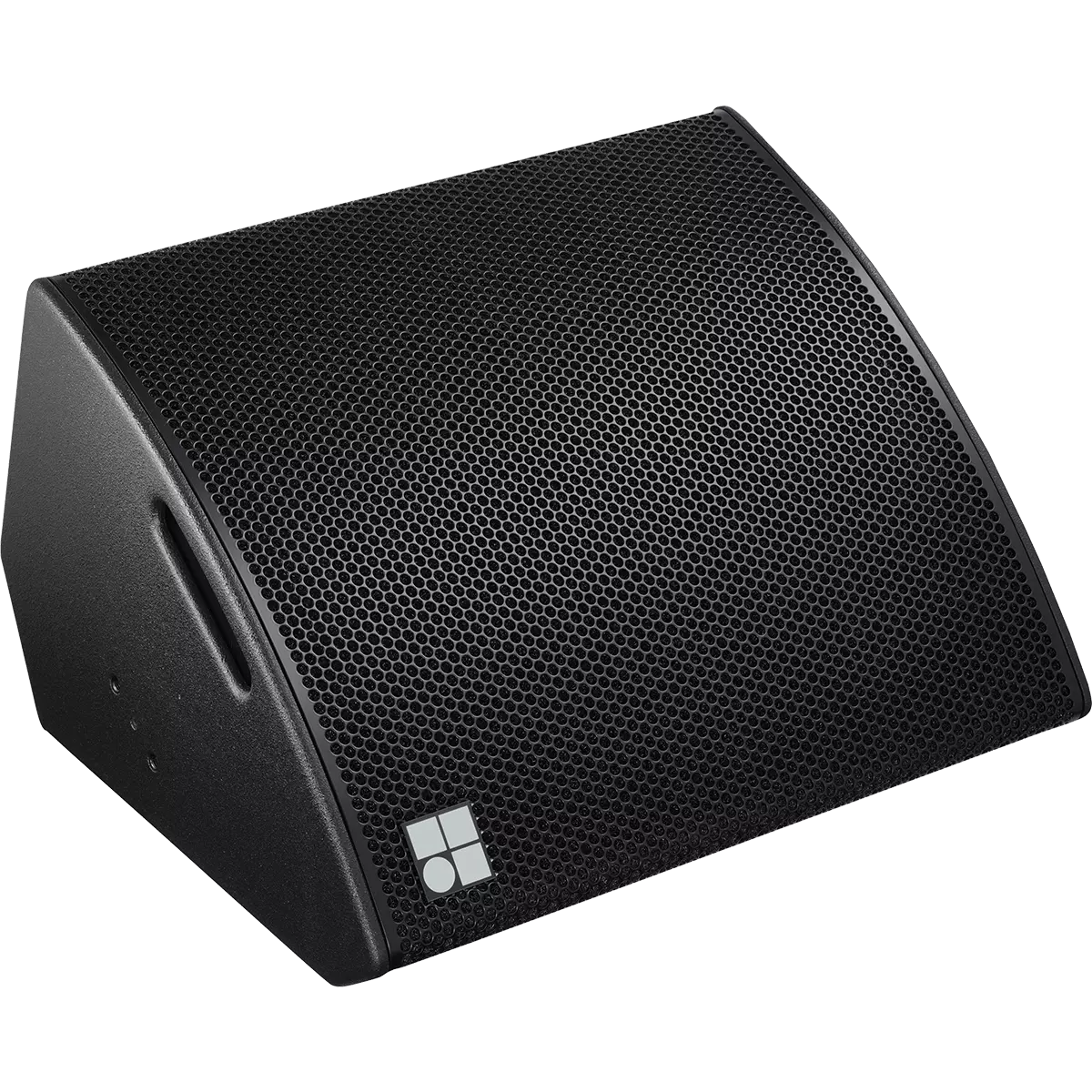

d&b audiotechnik MAX2 Stage Monitor
The MAX2 features an integrated 15” LF driver and a 1.4” HF coaxial driver that achieves 75° conical constant directivity dispersion.
The MAX2 can be used individually as a stage monitor; as a stand-alone full range system or, when combined with d&b subwoofers, as a drumfill.
The MAX2 is available with NL4 Connections or NLT4 F/M Connections.
Features:
- High feedback stability and sound pressure level
- Remarkable vocal presence and clarity
- Integrated pole mount for use in small PA applications
- Specific setup in d&b amplifiers ensures best performance and headroom
- Can also be driven by any appropriate linear amplifier
Specifications:
- System data:
- Frequency response (-5 dB standard): 55 Hz - 20 kHz
- Max. sound pressure:
- with 10D: 131 dB
- with D20/30D: 135 dB
- with D40/D80/40D: 135 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: 2-way stage monitor
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 250/1600 W
- Nominal dispersion angle (h x v): 75°
- Components:
- 15" driver with ferrite magnet
- coaxial 1.4" exit compression driver
- passive crossover network

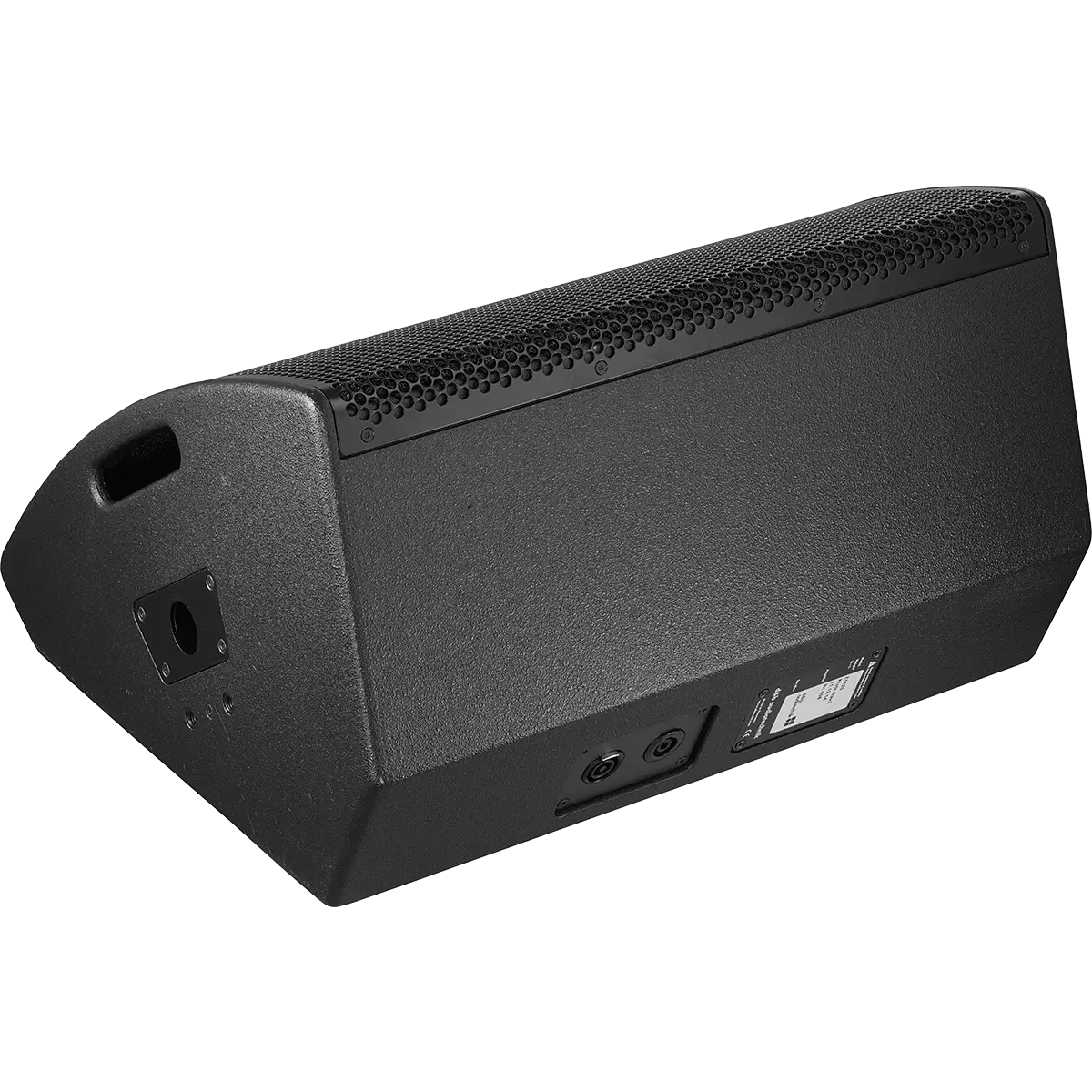

- Connections: 2 x NLT4 F/M
- Dimensions / weight:
- Dimensions (H x W x D): 354 x 580 x 496 mm (14 x 22.8 x 19.5"3)
- Weight: 23 kg (50 lb)
- System data:
- Frequency response (-5 dB standard): 55 Hz - 20 kHz
- Max. sound pressure:
- with 10D: 131 dB
- with D20/30D: 135 dB
- with D40/D80/40D: 135 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: 2-way stage monitor
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 250/1600 W
- Nominal dispersion angle (h x v): 75°
- Components:
- 15" driver with ferrite magnet
- coaxial 1.4" exit compression driver
- passive crossover network
- Connections: 2 x NLT4 F/M
- Dimensions / weight:
- Dimensions (H x W x D): 354 x 580 x 496 mm (14 x 22.8 x 19.5"3)
- Weight: 23 kg (50 lb)
