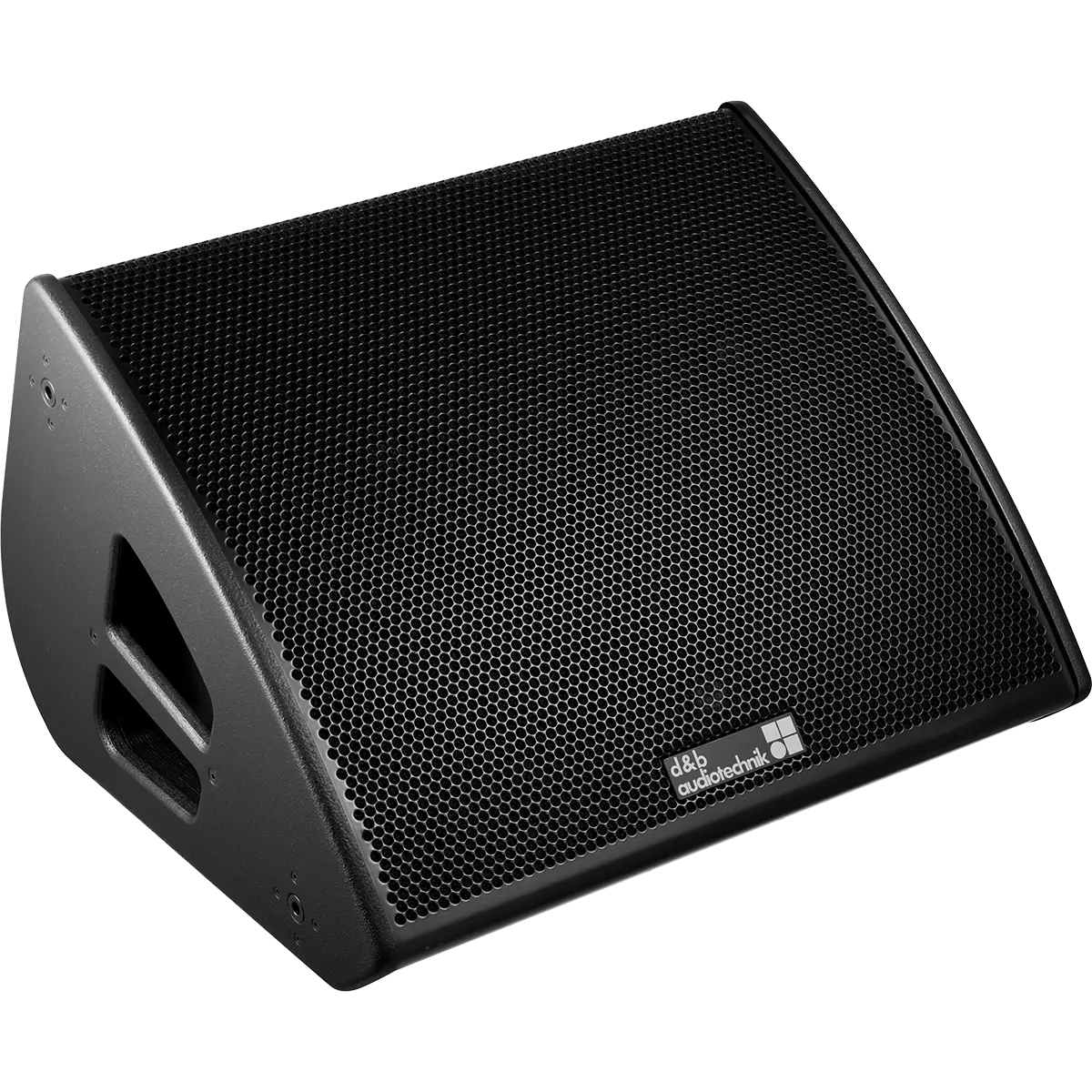

d&b audiotechnik M2 Stage Monitor High Performance 2-way Stage Monitor

The M2 is a 2-way high performance stage monitor, with a peak sound pressure level of 143 dB.

The M2 features a consistent directivity of 45° x 60° > 600 Hz and significantly improves feedback stability.

The M2 is available with NL4 Connections or NLT4 F/M Connections.

Features:

• Components 2 x 12"/1.4"
• Dispersion 45° x 60°
• SPLmax 143 dB
• Weight 38 kg / 84 lb

Specifications:

• System data:
  • Frequency response (–5 dB): 50 Hz - 17 kHz
  • Max. sound pressure level (1 m, free field):
    • with 30D: 143 dB
    • with D80: 143 dB
• Loudspeaker data:
  • Nominal impedance LOW/HIGH: 4/8 ohms
  • Power handling capacity LOW (RMS/peak 10 msec): 500/2000 W
  • Power handling capacity HIGH (RMS/peak 10 msec): 50/200 W
  • Dispersion characteristics (h x v): 45° x 60°
  • Components:
    • 2 x 12" driver
    • 1.4" compression driver with CD horn
  • Connections: 2 x NLT4 F/M
  • Weight: 38 kg (83 lb)
