d&b audiotechnik KSLi12 Loudspeaker Installation Specific Medium to Large Format 3-way Line Array Loudspeaker
The d&b audiotechnik KSLi12 delivers sound reinforcement for medium to large fixed installations.
This three-way line array features a 120° constant-directivity horizontal pattern maintained across its full operating bandwidth.
The LF section employs four neodymium drivers, two 10" forward-facing and two 8" side-firing units. The MF/HF section combines an 8" MF horn with dual 1.4" compression drivers on a wave-shaping device.
The loudspeaker uses two amplification channels: one dedicated to the 10" drivers, with the MF/HF and side-firing LF passively crossed on a second channel.
Features:
- Components LF: 2 x 10" + 2 x 8"; MF: 1 x 8"; HF: 2 x 1.4" exit compression driver with 3" coil
- Dispersion 120°
- SPLmax 144 dB
- Weight 57 kg / 126 lb
Specifications:
System Data:
- Frequency Response (-5 dB standard): 54 Hz - 18 kHz
- Frequency Response (-5 dB CUT mode): 75 Hz - 18 kHz
- Max. Sound Pressure with D40/D80/D90/40D: 144
- Cabinets per D40/D80/D90/40D (ArrayProcessing): 2
- Cabinets per D40/D80/D90/40D (Line or Arc mode): 4
Loudspeaker Data:
- Nominal Impedance Front LF: 8 ohms
- Nominal Impedance Side LF/MF/HF: 8 ohms
- Power Handling Capacity Front LF (RMS/peak 10 ms): 450/1800 W
- Power Handling Capacity Side LF/MF/HF (RMS/peak 10 ms): 250/1000 W
- Nominal Dispersion Angle (Horizontal): 120°
- Splay Angle Settings: 0 … 10° (1° increment)
- Components: 2 x 10" front LF driver
2 x 8" side LF driver
1 x 8" MF driver
2 x 1.4" exit compression driver with 3" voice coil
Passive crossover network

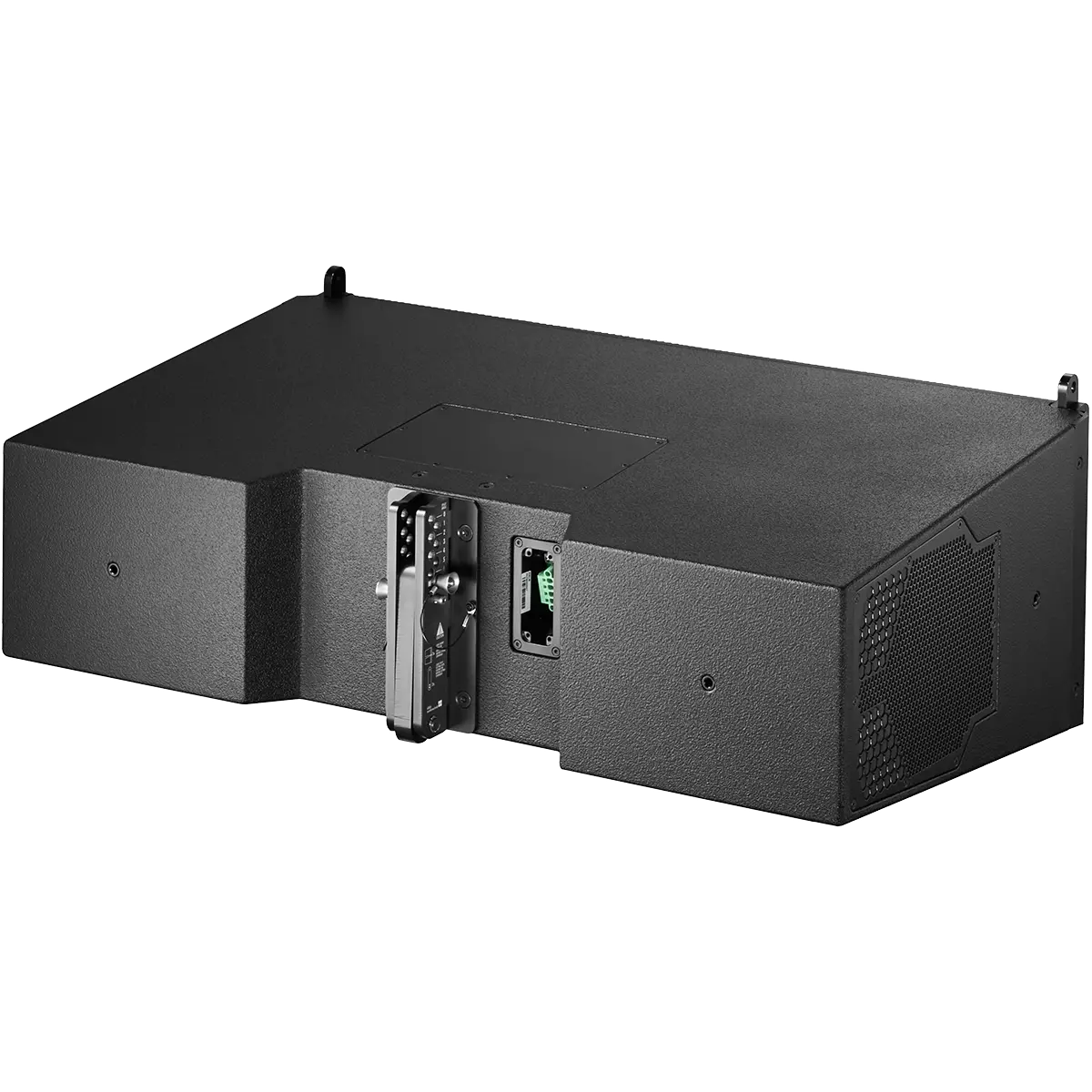

- Connections: 2 x NLT4 F/M / Phoenix
Dimensions / Weight:
- Dimensions (h x w x d): 330 x 1000 x 572 mm
13 x 39.4 x 22.5"
- Weight: 57 kg
126 lb
Amplifiers:
2 x 8" side LF driver
1 x 8" MF driver
2 x 1.4" exit compression driver with 3" voice coil
Passive crossover network
- Dimensions (h x w x d): 330 x 1000 x 572 mm
13 x 39.4 x 22.5" - Weight: 57 kg
126 lb
