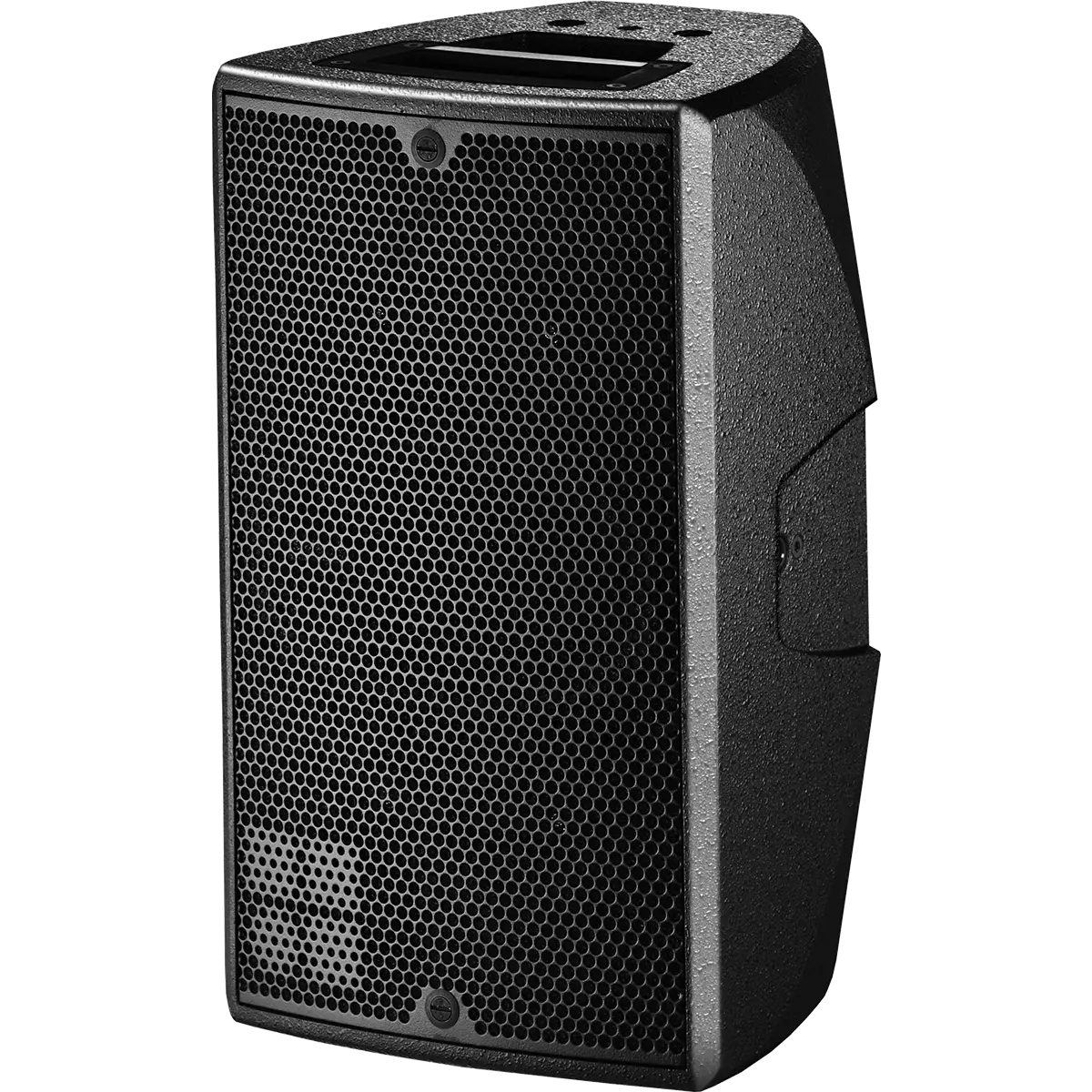

d&b audiotechnik E8 Loudspeaker

The E8 is a high-performance multipurpose loudspeaker featuring an integrated coaxial driver. Its adaptable horn offers a 90° x 55° dispersion pattern that can be rotated 90° to a 50° x 90° configuration.

The E8 is designed to be paired with any E-Series subwoofer.

The E8 is available with NL4 Connections or NLT4 F/M Connections and weather-resistance.

Features:

• Components: 8″/1″
• Dispersion: 90° x 50° rotatable
• SPLmax: 129 dB
• Weight: 7.3 kg / 16.1 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 62 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 120 Hz - 18 kHz
  • Max. sound pressure:
    • with 10D: 126 dB
    • with D20/5D/30D: 129 dB
    • with D40/D80/40D: 129 dB
  • Cabinets per amplifier channel: 3
• Loudspeaker data:
  • Configuration: 2-way compact coaxial loudspeaker
  • Nominal impedance: 12 Ω
  • Power handling capacity (RMS/peak 10 ms): 150/800 W
  • Nominal dispersion angle (h x v): 90° x 50° rotatable through 50° x 90°
  • Components:
    • 8" driver with neodymium magnet
    • 1" exit compression driver with 1.75" coil and rotatable CD horn
    • passive crossover network
  • Connections: Faston connector type 2
• Dimensions / weight:
  • Dimensions (H x W x D): 390 x 232 x 223 mm / 15.4 x 9.1 x 8.8"
  • Weight: 7.3 kg / 16.1 lb
